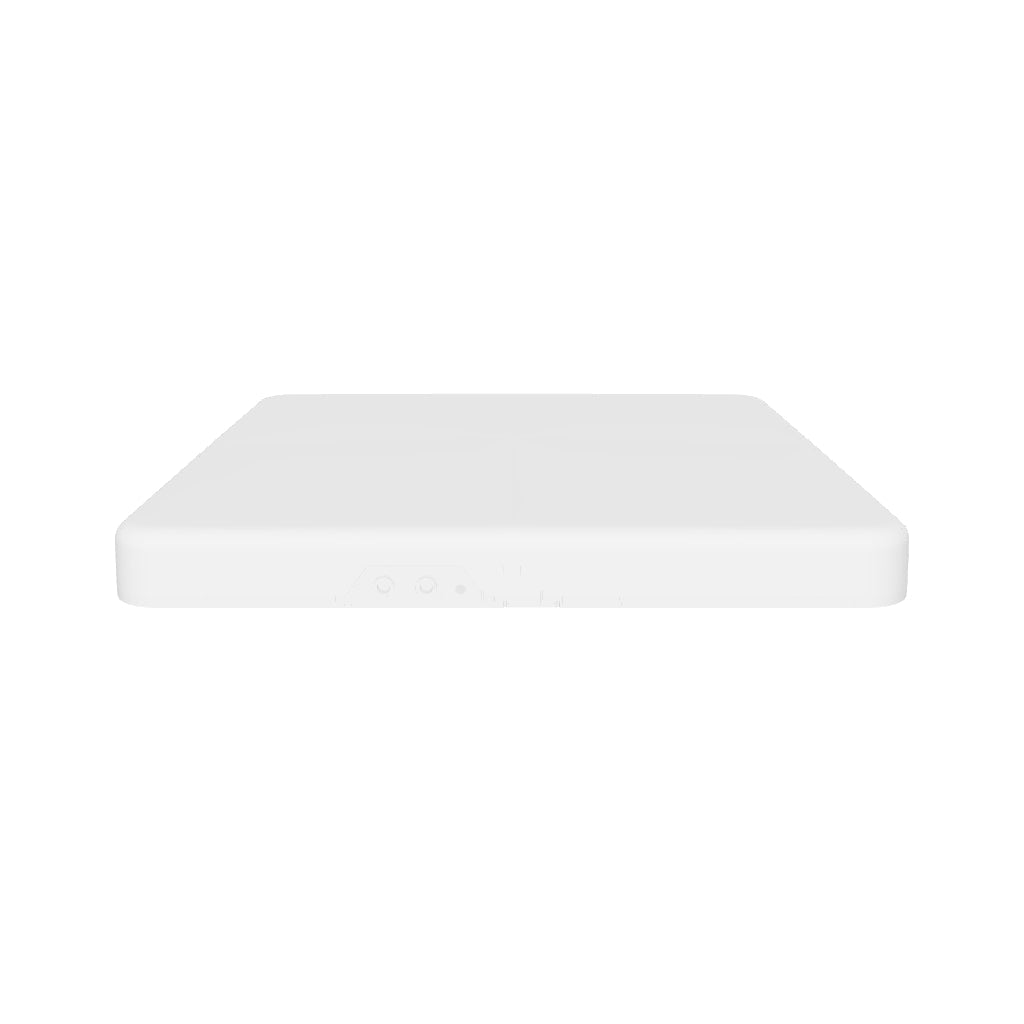

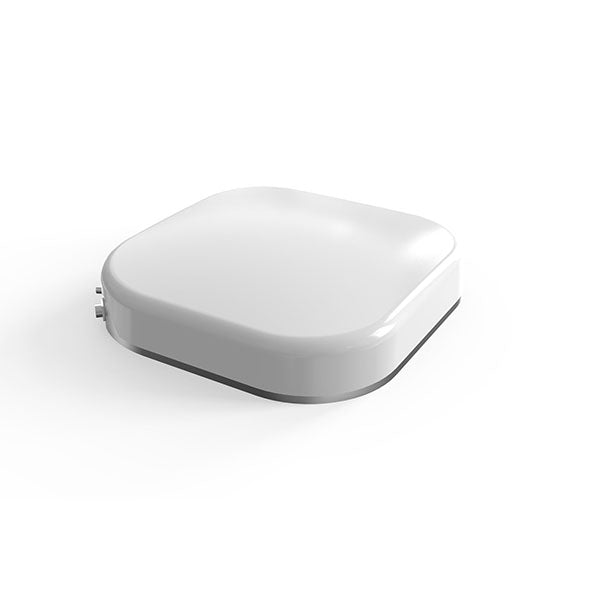

Name: Enhanced Electromechanical Ku-Band Phased Array Antenna
Brand: Norsat International Inc.
SKU: WOMS035KUH
Price: 22000.00 USD
Availability: InStock

Enhanced Electromechanical Ku-Band Phased Array Antenna

WOMS035KUH

Enhanced Electromechanical Ku-Band Phased Array Antenna

COTM

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52017350312303,"title":"Not included","option1":"Not included","option2":null,"option3":null,"sku":"WOMS035KUH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Enhanced Electromechanical Ku-Band Phased Array Antenna - Not included","public_title":"Not included","options":["Not included"],"price":2200000,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52017350345071,"title":"Included","option1":"Included","option2":null,"option3":null,"sku":"WOMS035KUHI","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Enhanced Electromechanical Ku-Band Phased Array Antenna - Included","public_title":"Included","options":["Included"],"price":2200000,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

WOMS035KUH is a light weight and small form factor Ku-band phased array antenna for mission critical users utilizing legacy wide-beam or HTS GEO satellites. It features compact and ruggedized all-in-one design, low power consumption, and great easiness for installation, ensuring voice, image, and video transmission via secured satellite network while on the move.

KEY SPECIFICATIONS
antenna category	On the Move
band	Ku-Band
Product Revision	A

ANTENNA SPECIFICATIONS
antenna type	Enhanced Electromechanical Phased Array Antenna
azimuth angle	0° - 360°
elevation angle	25° - 85°
locking time	≤120 s
polarization	Linear
tracking accuracy	≤0.2° RMS

RF SPECIFICATIONS
EIRP	≥39 dBW @ 14.5 GHz
G/T	≥8 dB/K @ 12.5 GHz
gain	31 dB
Rx frequency	10.70 - 12.75 GHz
Tx frequency	13.75 - 14.50 GHz

ELECTRICAL SPECIFICATIONS
power consumption	≤180W
power supply	220V AC/24V DC (supports car cigarette lighter power supply)

INTERFACE SPECIFICATIONS
ACU	Internal ACU
data interfaces	Ethernet port, wireless WIFI

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 65
temperature operational	-40℃ - 60℃

PHYSICAL SPECIFICATIONS
product height	130 mm
product length	650 mm
product weight	18.5 kg
product width	650 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8529109090
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	-
Warranty	1 year
Unit Package Dimensions	780 x 250 x 840 mm
Unit Package Weight	42 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
