| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|

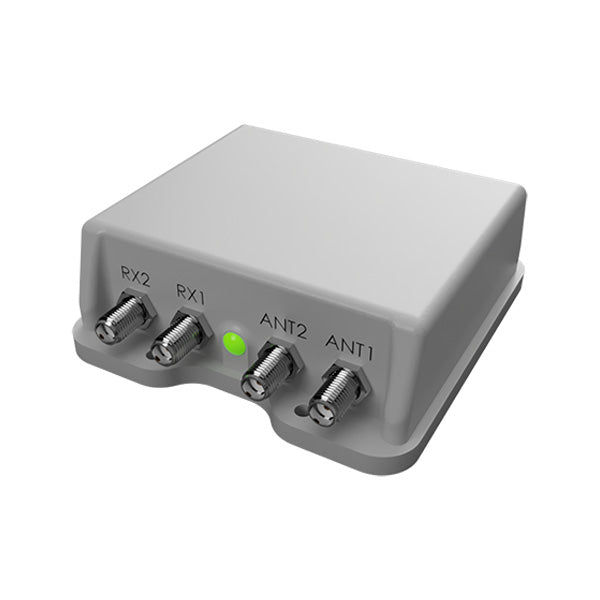

| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L2 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2; GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2; GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L1/Galileo E1; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GLONASS G1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GPS L5 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GPS L5 |
| path gain | ±3 dB |
| protected frequency option | GPS L2; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | None |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | Yes - direct path to second receiver; secondary path is unprotected |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
| KEY SPECIFICATIONS | |
|---|---|
| antenna gain range | 15-40 dB configurable |
| commercial non military use | Yes - designed for non-military platforms and applications |
| compression point | -23 dBm |
| direct path second receiver | No - no direct path to second receiver |
| GNSS anti jamming algorithms | Software defined anti-jamming algorithms; Null Steering |
| GNSS jammer power level monitoring | Yes - jammed Band and max power monitoring via UART |
| GNSS jamming detection | Real-time jamming detection/status and power-level monitoring |
| GNSS M code support | No |
| GNSS passthrough bands | Optional passthrough bands selectable from: E1/L1, L2, L5, G1 |
| GNSS protected bands | 2 protected bands selectable from: E1/L1, L2, L5, G1 |
| GNSS real time jamming status | Yes - real-time jamming status via UART |
| GNSS receiver compatibility | Compatible with modern and legacy GNSS receivers, requires receiver with physical RF input |
| GNSS software upgradeability | Software upgradeable |
| GNSS SSASM support | No |
| latency | <100 ns |
| operating environment | Commercial ground, aerial, and maritime platforms; civilian/commercial environments |
| passthrough frequency | GPS L1/Galileo E1; GPS L2 |
| path gain | ±3 dB |
| protected frequency option | GPS L5; GLONASS G1 |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| antenna inputs | 2 antenna inputs: A1, A2; 50Ω |
| antenna output RX2 | RX2: 50Ω optional unprotected output |
| receiver outputs | RX/RX1 protected output; optional RX2/OUT2 unprotected auxiliary output |
| receiver output RX1 | RX: protected 50Ω RF output |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| antenna input power connector | DC power supplied to active antennas through A1/A2 RF inputs |
| antenna input voltage | 2.7-14 VDC configurable |
| dry contacts | Jamming indication; Max 32V, 50mA |
| GNSS power consumption | 5W nominal / 5.5W peak |
| ground | GND |
| maximum current per connector | 40 mA max per connector |
| power supply | 6-32 VDC |
| RF connectors | SMA Female |
| UART interface | UART for maintenance/status; 115200 baud |
| VCC | UART VCC 5 VDC |
| wire connections average power consumption | Dual Band: 5W nominal | Peak: 5.5W |
| wire connection power supply voltage | 6-32 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| LED indicators | Flashing Red: initialization; Flashing Green: no jamming; Flashing Green/Orange: jamming detected; Flashing Orange: heavy jamming; Red: system error |
| mounting | 4 × M3 screws (not supplied) |
| wire connections dry contact function | Jamming indication (dry contact closes when jamming is detected) |
| wire connections dry contact maximum rating | Max 32V, 50mA |
| wire connections dry contact negative wire | Green - Negative (-), 26 AWG |
| wire connections dry contact positive wire | Purple - Positive (+), 26 AWG |
| wire connections GNSS receiver | RX/RX1 protected RF output to GNSS receiver |
| wire connections ground wire | Black - GND (-), 22 AWG |
| wire connections positive power wire | Red - Positive (+) 22 AWG |
| wire connections UART function | UART communication for maintenance/status |
| wire connections UART ground wire | Blue - UART GND, 26 AWG |
| wire connections UART RX wire | Gray - UART RX, 26 AWG |
| wire connections UART TX wire | Yellow - UART TX, 26 AWG |
| wire connections VCC 5V WIRE | White - VCC 5 VDC, 26 AWG |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP65 |
| OEM IP rating | No |
| operating temperature | -40°C to 71°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 33.5 m |
| product length | 80 m |
| product weight | 0.200 kg |
| product width | 78.5 m |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | N/A - Services |
| Country of Origin | Made in Israel |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | 7A005.b |
| Warranty | 1 year |
| Dangerous Goods | - |
| Unit Package Dimensions | 30 × 20 × 20 cm (L × W × H) |
| Unit Package Weight | Varies by quantity |
| Total Aluminium Content | Not available |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
|
|
|
|
|
|
