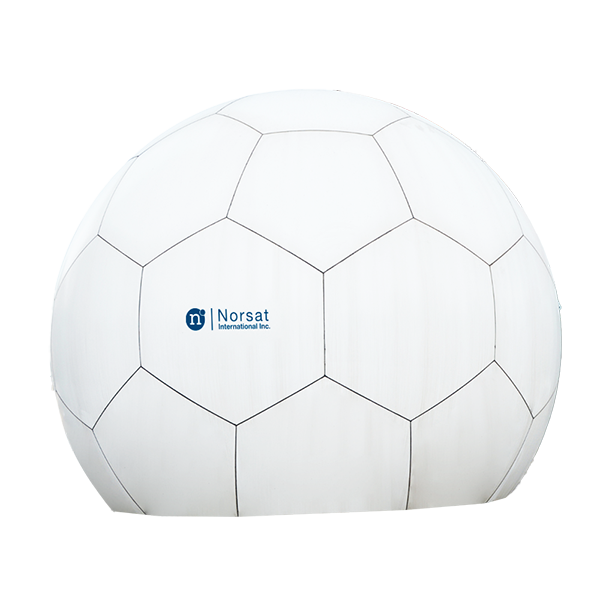

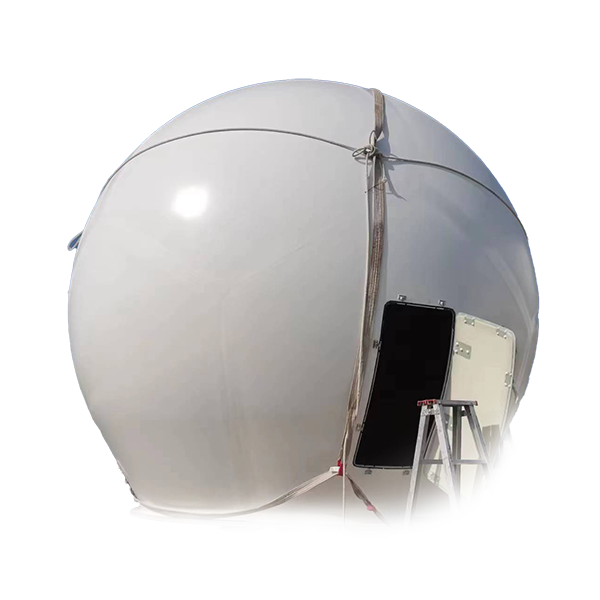

Ground Radome

C-Band 5G interference solutionsLearn More

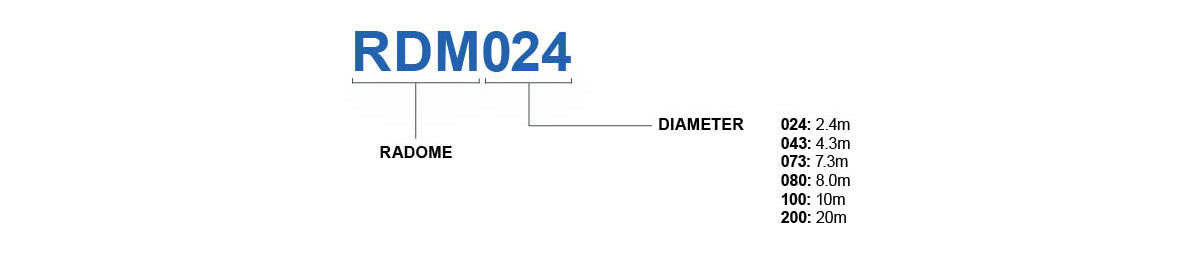

RDM024

Ground Radome

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51643883290991,"title":"2.4m","option1":"2.4m","option2":null,"option3":null,"sku":"RDM024","requires_shipping":true,"taxable":true,"featured_image":{"id":52905071509871,"product_id":14620693954927,"position":2,"created_at":"2024-10-04T11:28:51-07:00","updated_at":"2024-10-04T11:28:53-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM024-product.png?v=1728066533","variant_ids":[51643883290991]},"available":true,"name":"Ground Radome - 2.4m","public_title":"2.4m","options":["2.4m"],"price":2750000,"weight":0,"compare_at_price":2600000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45439322030447,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM024-product.png?v=1728066533"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51643883323759,"title":"4.3m","option1":"4.3m","option2":null,"option3":null,"sku":"RDM043","requires_shipping":true,"taxable":true,"featured_image":{"id":52905071542639,"product_id":14620693954927,"position":3,"created_at":"2024-10-04T11:28:51-07:00","updated_at":"2024-10-04T11:28:53-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM043-product.png?v=1728066533","variant_ids":[51643883323759]},"available":true,"name":"Ground Radome - 4.3m","public_title":"4.3m","options":["4.3m"],"price":4125000,"weight":0,"compare_at_price":3900000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45439321932143,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM043-product.png?v=1728066533"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51643883356527,"title":"7.3m","option1":"7.3m","option2":null,"option3":null,"sku":"RDM073","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ground Radome - 7.3m","public_title":"7.3m","options":["7.3m"],"price":12375000,"weight":0,"compare_at_price":11700000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51643883389295,"title":"8.0m","option1":"8.0m","option2":null,"option3":null,"sku":"RDM080","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ground Radome - 8.0m","public_title":"8.0m","options":["8.0m"],"price":14300000,"weight":0,"compare_at_price":13520000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51643883422063,"title":"10.0m","option1":"10.0m","option2":null,"option3":null,"sku":"RDM100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ground Radome - 10.0m","public_title":"10.0m","options":["10.0m"],"price":17875000,"weight":0,"compare_at_price":16900000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51643883454831,"title":"20.0m","option1":"20.0m","option2":null,"option3":null,"sku":"RDM200","requires_shipping":true,"taxable":true,"featured_image":{"id":52905071575407,"product_id":14620693954927,"position":4,"created_at":"2024-10-04T11:28:51-07:00","updated_at":"2024-10-04T11:28:53-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM200-product.png?v=1728066533","variant_ids":[51643883454831]},"available":true,"name":"Ground Radome - 20.0m","public_title":"20.0m","options":["20.0m"],"price":42664100,"weight":0,"compare_at_price":40337000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45439321964911,"position":4,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RDM200-product.png?v=1728066533"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
design capability	1. Electrical performance simulation and test; 2. Mechanical properties simulation
operating freqency band	C / X / Ku / Ka / Ku-Ku Dual Frequency or Multi-frequency
structural form	Truss structure, polygon, random, A interlayer, C interlayer structure
Product Revision	A

ELECTRICAL SPECIFICATIONS
beam migration	≤ 0.02°
SW coefficient	≤ 5%
transmission loss full radome	≤ 0.5 dB
transmission loss unit block	≤ 0.3 dB

ENVIRONMENTAL SPECIFICATIONS
environmental tests	Mold, salt spray, damp heat, impact resistance all meet the requirements of relevant environmental test standards
humidity	≤ 98%
ice burst impact resistance	The diameter of hail is not more than 8 cm (weight is not more than 0.24 kg). The radome will not be broken down.
service life	10 - 15 years
temperature operational	-55?C to +70?C
wind resistance nondestructive	67 m/s
wind resistance normal operation	40 m/s

PHYSICAL SPECIFICATIONS

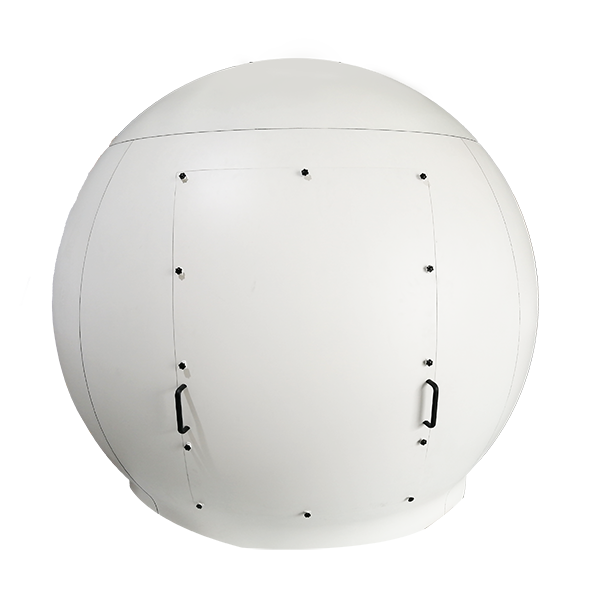

radome diameter	ϕ 2.4m
