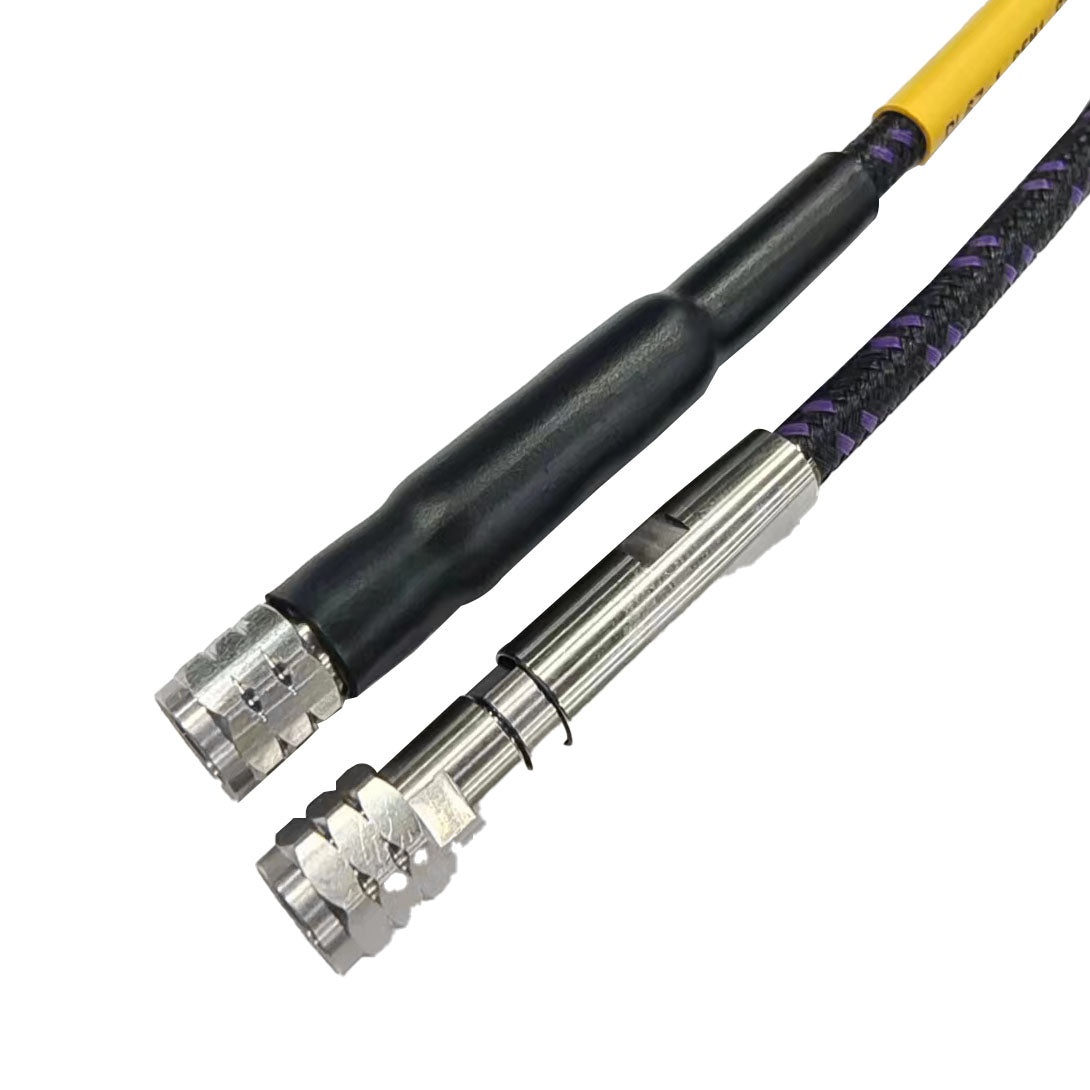

Name: High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male C
Brand: Norsat International Inc.
SKU: CPJ645185SM185SF-005
Price: 850.00 USD
Availability: InStock

High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector

CPJ645185SM185SF-005

High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021944648047,"title":"1.85mm Straight Female \/ 5m","option1":"1.85mm Straight Female","option2":"5m","option3":null,"sku":"CPJ645185SM185SF-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 5m","public_title":"1.85mm Straight Female \/ 5m","options":["1.85mm Straight Female","5m"],"price":85000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944680815,"title":"1.85mm Straight Female \/ 10m","option1":"1.85mm Straight Female","option2":"10m","option3":null,"sku":"CPJ645185SM185SF-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 10m","public_title":"1.85mm Straight Female \/ 10m","options":["1.85mm Straight Female","10m"],"price":147500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944713583,"title":"1.85mm Straight Female \/ 30m","option1":"1.85mm Straight Female","option2":"30m","option3":null,"sku":"CPJ645185SM185SF-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 30m","public_title":"1.85mm Straight Female \/ 30m","options":["1.85mm Straight Female","30m"],"price":397500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944746351,"title":"1.85mm Straight Female \/ 50m","option1":"1.85mm Straight Female","option2":"50m","option3":null,"sku":"CPJ645185SM185SF-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 50m","public_title":"1.85mm Straight Female \/ 50m","options":["1.85mm Straight Female","50m"],"price":647500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944779119,"title":"1.85mm Straight Female \/ 100m","option1":"1.85mm Straight Female","option2":"100m","option3":null,"sku":"CPJ645185SM185SF-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 100m","public_title":"1.85mm Straight Female \/ 100m","options":["1.85mm Straight Female","100m"],"price":1272500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944811887,"title":"1.85mm Straight Female \/ 200m","option1":"1.85mm Straight Female","option2":"200m","option3":null,"sku":"CPJ645185SM185SF-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Female \/ 200m","public_title":"1.85mm Straight Female \/ 200m","options":["1.85mm Straight Female","200m"],"price":2522500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944844655,"title":"1.85mm Straight Male \/ 5m","option1":"1.85mm Straight Male","option2":"5m","option3":null,"sku":"CPJ645185SM185SM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 5m","public_title":"1.85mm Straight Male \/ 5m","options":["1.85mm Straight Male","5m"],"price":85000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944877423,"title":"1.85mm Straight Male \/ 10m","option1":"1.85mm Straight Male","option2":"10m","option3":null,"sku":"CPJ645185SM185SM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 10m","public_title":"1.85mm Straight Male \/ 10m","options":["1.85mm Straight Male","10m"],"price":147500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944910191,"title":"1.85mm Straight Male \/ 30m","option1":"1.85mm Straight Male","option2":"30m","option3":null,"sku":"CPJ645185SM185SM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 30m","public_title":"1.85mm Straight Male \/ 30m","options":["1.85mm Straight Male","30m"],"price":397500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944942959,"title":"1.85mm Straight Male \/ 50m","option1":"1.85mm Straight Male","option2":"50m","option3":null,"sku":"CPJ645185SM185SM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 50m","public_title":"1.85mm Straight Male \/ 50m","options":["1.85mm Straight Male","50m"],"price":647500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021944975727,"title":"1.85mm Straight Male \/ 100m","option1":"1.85mm Straight Male","option2":"100m","option3":null,"sku":"CPJ645185SM185SM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 100m","public_title":"1.85mm Straight Male \/ 100m","options":["1.85mm Straight Male","100m"],"price":1272500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021945008495,"title":"1.85mm Straight Male \/ 200m","option1":"1.85mm Straight Male","option2":"200m","option3":null,"sku":"CPJ645185SM185SM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector - 1.85mm Straight Male \/ 200m","public_title":"1.85mm Straight Male \/ 200m","options":["1.85mm Straight Male","200m"],"price":2522500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.04 dB Typ.@67GHz
cable insertion loss	32.25 dB
capacitance	435 pF Max.
phase stability vs flesure	±5° Typ.@67GHz
shielding effectiveness	90 dB Min.
VSWR max	1.30:1
VSWR typ	1.20:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	15W max.@67GHz

INTERFACE SPECIFICATIONS
connector 1	1.85mm Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PEI
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	1.85mm Straight Female
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PEI
connector 2 insertion loss	0.05*Sqrt(f_GHz)

PHYSICAL SPECIFICATIONS
cable diameter	5.0 mm
cable jacket	PTFE
min bending life	50000
min bending radius	38 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-67GHz
jacket size	4.65 mm
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A
