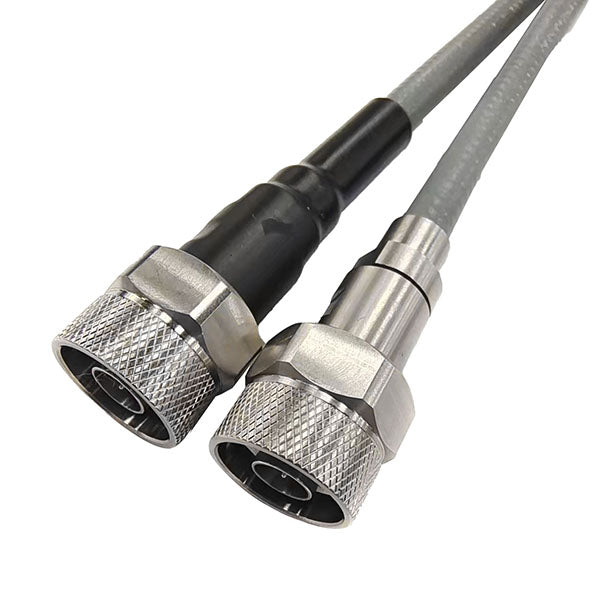

Name: High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight
Brand: Norsat International Inc.
SKU: CFD054NCNSMTNCSM-005
Price: 384.00 USD
Availability: InStock

High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector

CFD054NCNSMTNCSM-005

High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021912371567,"title":"TNC Straight Male \/ 5m","option1":"TNC Straight Male","option2":"5m","option3":null,"sku":"CFD054NCNSMTNCSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 5m","public_title":"TNC Straight Male \/ 5m","options":["TNC Straight Male","5m"],"price":38400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912404335,"title":"TNC Straight Male \/ 10m","option1":"TNC Straight Male","option2":"10m","option3":null,"sku":"CFD054NCNSMTNCSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 10m","public_title":"TNC Straight Male \/ 10m","options":["TNC Straight Male","10m"],"price":69600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912437103,"title":"TNC Straight Male \/ 30m","option1":"TNC Straight Male","option2":"30m","option3":null,"sku":"CFD054NCNSMTNCSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 30m","public_title":"TNC Straight Male \/ 30m","options":["TNC Straight Male","30m"],"price":194600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912469871,"title":"TNC Straight Male \/ 50m","option1":"TNC Straight Male","option2":"50m","option3":null,"sku":"CFD054NCNSMTNCSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 50m","public_title":"TNC Straight Male \/ 50m","options":["TNC Straight Male","50m"],"price":319600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912502639,"title":"TNC Straight Male \/ 100m","option1":"TNC Straight Male","option2":"100m","option3":null,"sku":"CFD054NCNSMTNCSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 100m","public_title":"TNC Straight Male \/ 100m","options":["TNC Straight Male","100m"],"price":632100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912535407,"title":"TNC Straight Male \/ 200m","option1":"TNC Straight Male","option2":"200m","option3":null,"sku":"CFD054NCNSMTNCSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - TNC Straight Male \/ 200m","public_title":"TNC Straight Male \/ 200m","options":["TNC Straight Male","200m"],"price":1257100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912568175,"title":"N Straight Female \/ 5m","option1":"N Straight Female","option2":"5m","option3":null,"sku":"CFE067NCNSMNCNSF-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 5m","public_title":"N Straight Female \/ 5m","options":["N Straight Female","5m"],"price":38600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912600943,"title":"N Straight Female \/ 10m","option1":"N Straight Female","option2":"10m","option3":null,"sku":"CFE067NCNSMNCNSF-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 10m","public_title":"N Straight Female \/ 10m","options":["N Straight Female","10m"],"price":69800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912633711,"title":"N Straight Female \/ 30m","option1":"N Straight Female","option2":"30m","option3":null,"sku":"CFE067NCNSMNCNSF-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 30m","public_title":"N Straight Female \/ 30m","options":["N Straight Female","30m"],"price":194800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912666479,"title":"N Straight Female \/ 50m","option1":"N Straight Female","option2":"50m","option3":null,"sku":"CFE067NCNSMNCNSF-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 50m","public_title":"N Straight Female \/ 50m","options":["N Straight Female","50m"],"price":319800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912699247,"title":"N Straight Female \/ 100m","option1":"N Straight Female","option2":"100m","option3":null,"sku":"CFE067NCNSMNCNSF-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 100m","public_title":"N Straight Female \/ 100m","options":["N Straight Female","100m"],"price":632300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912732015,"title":"N Straight Female \/ 200m","option1":"N Straight Female","option2":"200m","option3":null,"sku":"CFE067NCNSMNCNSF-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Female \/ 200m","public_title":"N Straight Female \/ 200m","options":["N Straight Female","200m"],"price":1257300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912764783,"title":"N Right Angle Male \/ 5m","option1":"N Right Angle Male","option2":"5m","option3":null,"sku":"CFE067NCNSMNCNRM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 5m","public_title":"N Right Angle Male \/ 5m","options":["N Right Angle Male","5m"],"price":39600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912797551,"title":"N Right Angle Male \/ 10m","option1":"N Right Angle Male","option2":"10m","option3":null,"sku":"CFE067NCNSMNCNRM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 10m","public_title":"N Right Angle Male \/ 10m","options":["N Right Angle Male","10m"],"price":70900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912830319,"title":"N Right Angle Male \/ 30m","option1":"N Right Angle Male","option2":"30m","option3":null,"sku":"CFE067NCNSMNCNRM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 30m","public_title":"N Right Angle Male \/ 30m","options":["N Right Angle Male","30m"],"price":195900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912863087,"title":"N Right Angle Male \/ 50m","option1":"N Right Angle Male","option2":"50m","option3":null,"sku":"CFE067NCNSMNCNRM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 50m","public_title":"N Right Angle Male \/ 50m","options":["N Right Angle Male","50m"],"price":320900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912895855,"title":"N Right Angle Male \/ 100m","option1":"N Right Angle Male","option2":"100m","option3":null,"sku":"CFE067NCNSMNCNRM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 100m","public_title":"N Right Angle Male \/ 100m","options":["N Right Angle Male","100m"],"price":633400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912928623,"title":"N Right Angle Male \/ 200m","option1":"N Right Angle Male","option2":"200m","option3":null,"sku":"CFE067NCNSMNCNRM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Right Angle Male \/ 200m","public_title":"N Right Angle Male \/ 200m","options":["N Right Angle Male","200m"],"price":1258400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912961391,"title":"N Straight Male \/ 5m","option1":"N Straight Male","option2":"5m","option3":null,"sku":"CFE067NCNSMNCNSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 5m","public_title":"N Straight Male \/ 5m","options":["N Straight Male","5m"],"price":38400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021912994159,"title":"N Straight Male \/ 10m","option1":"N Straight Male","option2":"10m","option3":null,"sku":"CFE067NCNSMNCNSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 10m","public_title":"N Straight Male \/ 10m","options":["N Straight Male","10m"],"price":69600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021913026927,"title":"N Straight Male \/ 30m","option1":"N Straight Male","option2":"30m","option3":null,"sku":"CFE067NCNSMNCNSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 30m","public_title":"N Straight Male \/ 30m","options":["N Straight Male","30m"],"price":194600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021913059695,"title":"N Straight Male \/ 50m","option1":"N Straight Male","option2":"50m","option3":null,"sku":"CFE067NCNSMNCNSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 50m","public_title":"N Straight Male \/ 50m","options":["N Straight Male","50m"],"price":319600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021913092463,"title":"N Straight Male \/ 100m","option1":"N Straight Male","option2":"100m","option3":null,"sku":"CFE067NCNSMNCNSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 100m","public_title":"N Straight Male \/ 100m","options":["N Straight Male","100m"],"price":632100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021913125231,"title":"N Straight Male \/ 200m","option1":"N Straight Male","option2":"200m","option3":null,"sku":"CFE067NCNSMNCNSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 12 - 18 GHz - N Straight Male Connector - N Straight Male \/ 200m","public_title":"N Straight Male \/ 200m","options":["N Straight Male","200m"],"price":1257100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.03 dB Typ.@12GHz
cable insertion loss	2.7 dB
capacitance	400 pF Max.
phase stability vs flesure	±2° Typ.@12GHz
phase stability vs temprature	550PPM Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	506W max.@12GHz

INTERFACE SPECIFICATIONS
connector 1	N Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Brass, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	TNC Straight Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Brass, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

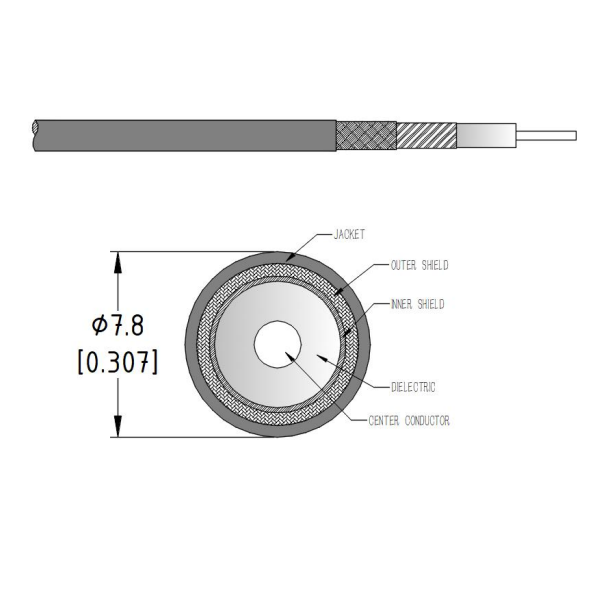

PHYSICAL SPECIFICATIONS
cable diameter	7.8mm
cable jacket	FEP
min bending life	50000
min bending radius	26 mm

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-12GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-18GHz
jacket size	7.8mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	83% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.03 dB Typ.@18GHz
cable insertion loss	3.35 dB
capacitance	400 pF Max.
phase stability vs flesure	±2° Typ.@18GHz
phase stability vs temprature	550PPM Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-
