Name: High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Rig
Brand: Norsat International Inc.
SKU: CFI329240RM240RM-005
Price: 592.00 USD
Availability: InStock

High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector

CFI329240RM240RM-005

High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021927346543,"title":"2.4mm Right Angle Male \/ 5m","option1":"2.4mm Right Angle Male","option2":"5m","option3":null,"sku":"CFI329240RM240RM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 5m","public_title":"2.4mm Right Angle Male \/ 5m","options":["2.4mm Right Angle Male","5m"],"price":59200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021927379311,"title":"2.4mm Right Angle Male \/ 10m","option1":"2.4mm Right Angle Male","option2":"10m","option3":null,"sku":"CFI329240RM240RM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 10m","public_title":"2.4mm Right Angle Male \/ 10m","options":["2.4mm Right Angle Male","10m"],"price":92500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021927412079,"title":"2.4mm Right Angle Male \/ 30m","option1":"2.4mm Right Angle Male","option2":"30m","option3":null,"sku":"CFI329240RM240RM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 30m","public_title":"2.4mm Right Angle Male \/ 30m","options":["2.4mm Right Angle Male","30m"],"price":225900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021927444847,"title":"2.4mm Right Angle Male \/ 50m","option1":"2.4mm Right Angle Male","option2":"50m","option3":null,"sku":"CFI329240RM240RM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 50m","public_title":"2.4mm Right Angle Male \/ 50m","options":["2.4mm Right Angle Male","50m"],"price":359200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021927477615,"title":"2.4mm Right Angle Male \/ 100m","option1":"2.4mm Right Angle Male","option2":"100m","option3":null,"sku":"CFI329240RM240RM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 100m","public_title":"2.4mm Right Angle Male \/ 100m","options":["2.4mm Right Angle Male","100m"],"price":692500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021927510383,"title":"2.4mm Right Angle Male \/ 200m","option1":"2.4mm Right Angle Male","option2":"200m","option3":null,"sku":"CFI329240RM240RM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Performance Phase Stable Flexible Cable 26.5 - 50 GHz - 2.4mm Right Angle Male Connector - 2.4mm Right Angle Male \/ 200m","public_title":"2.4mm Right Angle Male \/ 200m","options":["2.4mm Right Angle Male","200m"],"price":1359200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.03 dB Typ.@50GHz
cable insertion loss	16.45 dB
capacitance	405 pF Max.
phase stability vs flesure	±3° Typ.@50GHz
phase stability vs temprature	550PPM Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	117W max.@50GHz

INTERFACE SPECIFICATIONS
connector 1	2.4mm Right Angle Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PEI
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	2.4mm Right Angle Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PEI
connector 2 insertion loss	0.05*Sqrt(f_GHz)

PHYSICAL SPECIFICATIONS

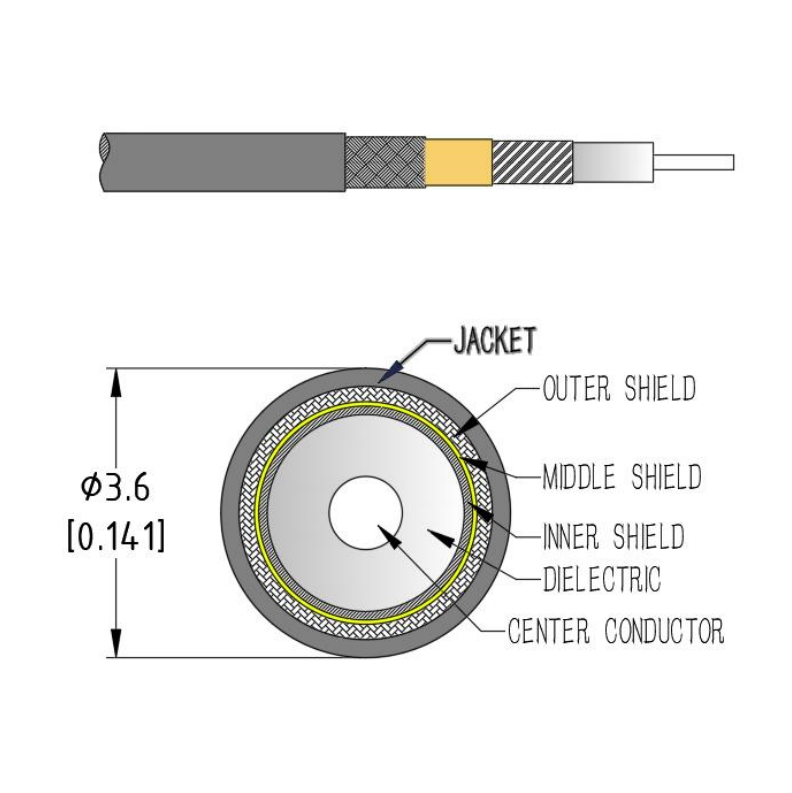

cable diameter	3.6mm
cable jacket	FEP
min bending life	50000
min bending radius	18 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-50GHz
jacket size	3.6mm
material flexibility	Flexible
phase stability	Mechanical and Temperature
velocity of propagation	76% Typ.
Product Revision	A
