| KEY SPECIFICATIONS | |
|---|---|
| cable length | 5 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 3.35 dB |
| capacitance | 400 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|

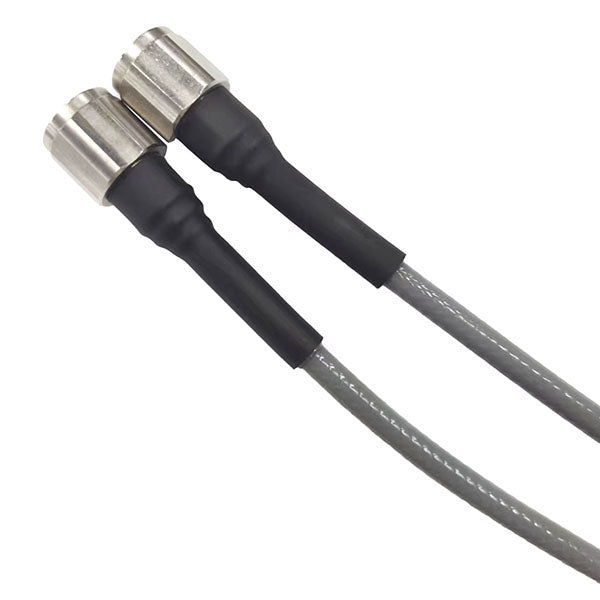

| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|

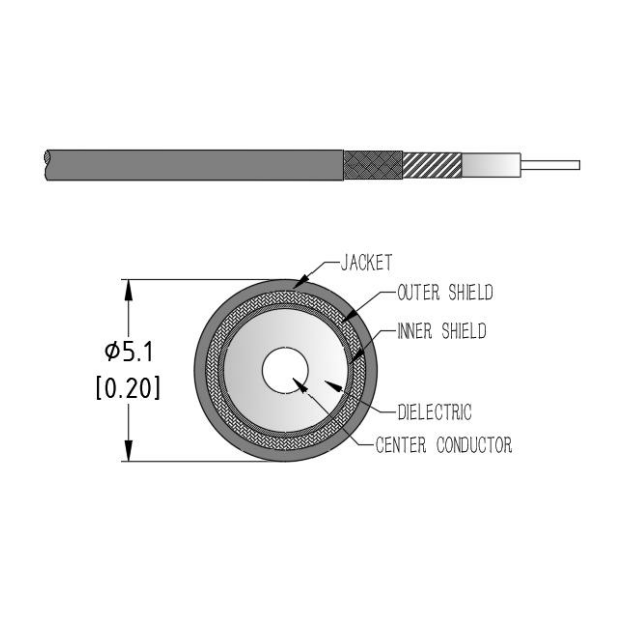

| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
| KEY SPECIFICATIONS | |
|---|---|
| cable length | 10 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 6.7 dB |
| capacitance | 800 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
| KEY SPECIFICATIONS | |
|---|---|
| cable length | 30 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 20.1 dB |
| capacitance | 2400 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
| KEY SPECIFICATIONS | |
|---|---|
| cable length | 50 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 33.5 dB |
| capacitance | 4000 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
| KEY SPECIFICATIONS | |
|---|---|
| cable length | 100 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 67 dB |
| capacitance | 8000 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
| KEY SPECIFICATIONS | |
|---|---|
| cable length | 200 m |
| frequency range | DC-8GHz |
| jacket size | 5.1mm |
| material flexibility | Flexible |
| phase stability | Mechanical and Temperature |
| velocity of propagation | 83% Typ. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| amplitude stability vs flexure | ±0.01 dB Typ.@8GHz |
| cable insertion loss | 134 dB |
| capacitance | 16000 pF Max. |
| phase stability vs flesure | ±0.5° Typ.@8GHz |
| phase stability vs temprature | 550PPM Max. |
| shielding effectiveness | 90 dB Min. |
| VSWR max | 1.25:1 |
| VSWR typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| cable RF power cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connector 1 | TNC Straight Male |
| connector 1 body material and plating | Passivated Stainless Steel |
| connector 1 contact material and plating | Brass, Gold |
| connector 1 dielectric type | PTFE |
| connector 1 insertion loss | 0.05*Sqrt(f_GHz) |
| connector 2 | TNC Straight Male |
| connector 2 body material and plating | Passivated Stainless Steel |
| connector 2 contact material and plating | Brass, Gold |
| connector 2 dielectric type | PTFE |
| connector 2 insertion loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| cable diameter | 5.1 mm |
| cable jacket | FEP |
| min bending life | 50000 |
| min bending radius | 26 mm |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 8544200000 |
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
|
|
|
|
|
|
