HPA-100008

High Power Amplifier Systems, 2.5-7.5GHz, 57dB Gain, 57dBm Psat, 380V AC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



• Wide Band: 2.5-7.5GHz
• Gain: 57dB Min
• Psat Output Power:57dBm Min
• Protection:Over TEM,over voltage, load VSWR protection
• 50 Ohm Matched Input / Output

KEY SPECIFICATIONS
Control Function DCU/UDP
Monitoring Function

1,Chip-level: status of power chip(gate voltage, drain current, case-temp);
2,System-level: output power, reverse power, load VSWR, DC voltage, DC current, environment temp, Cool-plate temp.
Protection Functions

1,Over TEM:≥+55℃ shutdown
2,Over voltage:≥29.5V shutdown
3,Load VSWR protection: The unit disables RF when reverse power exceeds the safe level of 3:1 VSWR or reduces power by 6dB
Product Revision A
RF SPECIFICATIONS
AC Voltage 380 VAC typ. , 420 VAC max.
ESD sensitivity(HBm) Class 0, passed 150V
Gain flatness ± 1.5 dB typ
Harmonics@Pout=57dBm -10 dBc max
Impedance 50 Ohms
input frequency band 1 2.5-7.5 GHz
Input VSWR 1.5 :1 max
output Psat min 57 dBm
Power gain min 57 dB
RF input power +5 dBm
Spurious@Pout=57dBm -60 dBc max.
ELECTRICAL SPECIFICATIONS
power consumption 500W typ
INTERFACE SPECIFICATIONS
Communication Connector RJ45
Forward / Reverse Coupling N Female/ N Female
Input/ output connector N Female/WRD250D30
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 feet
relative humidity 95%
shock(non operating) 20G for 11msc half sine wave, 3 axis both directions
shock/vibration(MIL-STD-810F) 25g rms (15 degree 2KHz) endurance, 1 hour per axis
temperature operational -20°C to +50°C
temperature storage -50°C to +70°C

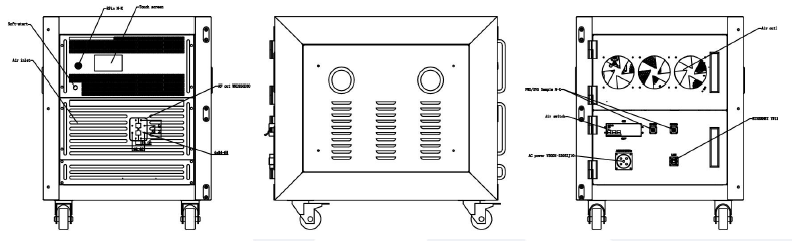

PHYSICAL SPECIFICATIONS
cooling Built in Cooling system, forced air cooling
product weight 200 kg max
size 19 Inch 20U*500 mm
