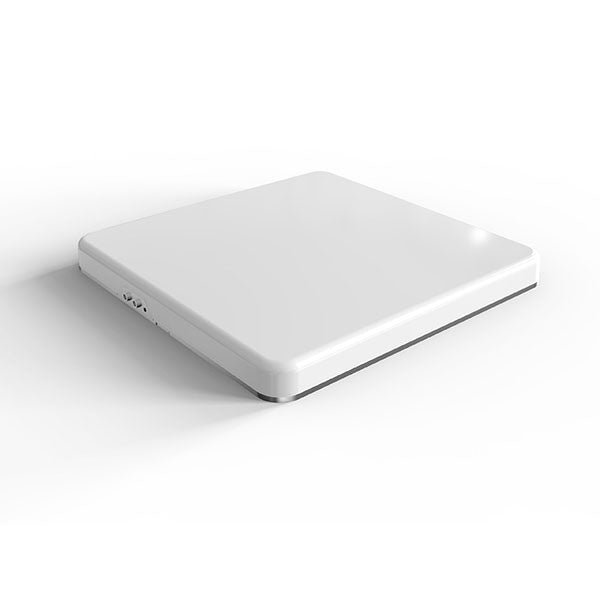

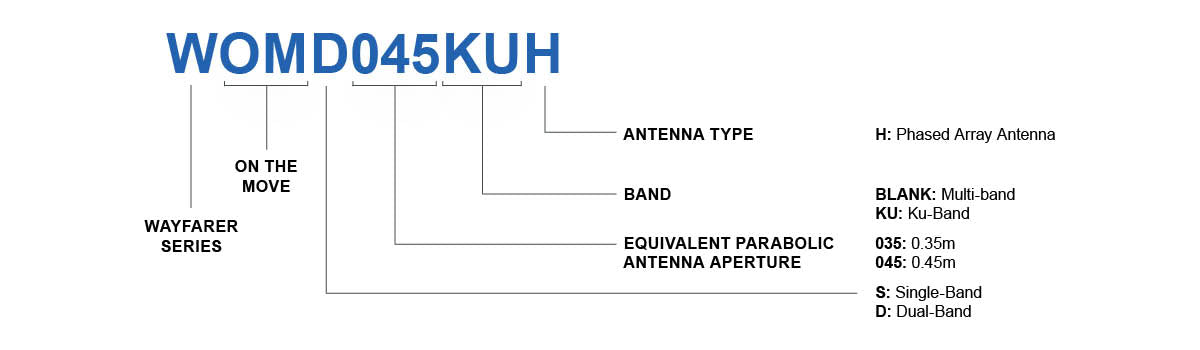

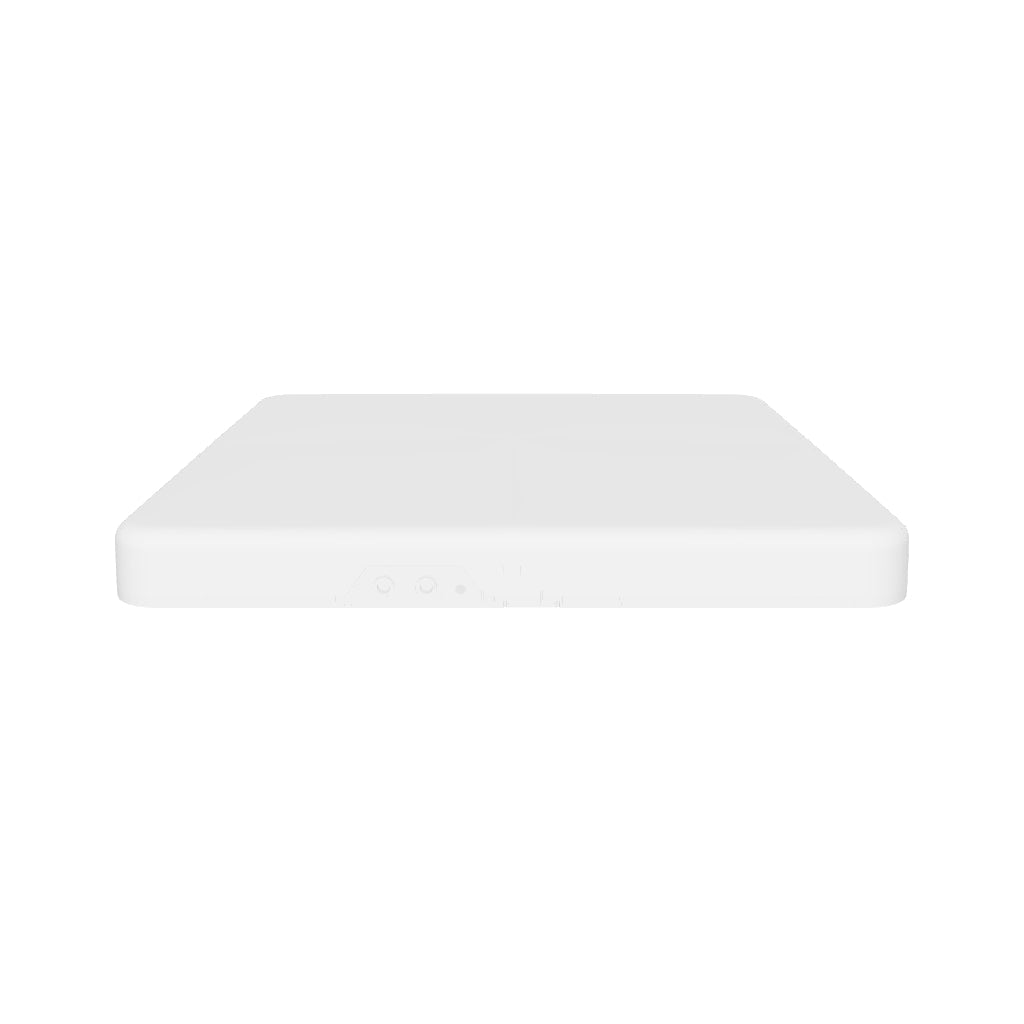

WOMD045H is a model which can work simultaneously on both Ku and Ka bands. It provides user with the maximized flexibility and reliability when facing the most challenging situation. It features compact and ruggedized design, low power consumption, and great easiness for installation, ensuring seamless satellite network experience while on the move.

KEY SPECIFICATIONS
antenna category On the Move
band Ku and Ka Simultaneously
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Hybrid Steering Dual-band Phased Array Antenna
axis ratio ≤ 1.0 dB
azimuth angle 0° - 360°
elevation angle 25° - 85°
locking time ≤120 s
polarization Linear & LHCP/RHCP automatic
tracking accuracy ≤0.2° RMS
RF SPECIFICATIONS
EIRP ≥47 dBW @ 14.5 GHz/29.5 GHz
G/T ≥10dB/K@12.5GHz/20GHz
gain Ku-Band: 34 dB; Ka-Band: 33 dB
Rx frequency 10.70 - 12.75 GHz (Ku-Band); 17.70 - 21.20 GHz (Ka-Band)
Tx frequency 13.75 - 14.50 (Ku-Band); 27.50 - 31.00 GHz (Ka-Band)
ELECTRICAL SPECIFICATIONS
power consumption ≤600W
power supply 220V AC/24V DC
INTERFACE SPECIFICATIONS
ACU Internal ACU
port Composite aviation connector for IF, power and control
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 65
temperature operational -40℃ - 60℃
PHYSICAL SPECIFICATIONS
color White
product height 120 mm
product length 1180 mm
product weight 75 kg
product width 1160 mm
