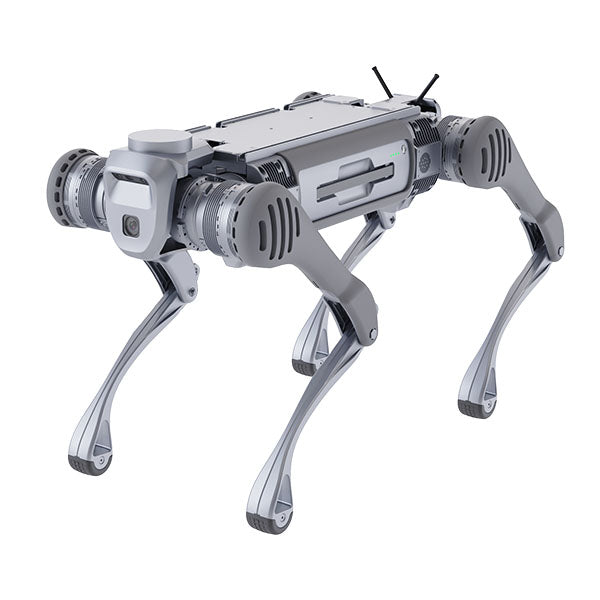

Name: Intelligent Quadruped Robot - Industrial Model
Brand: Norsat International Inc.
SKU: GQR0440
Price: 111006.00 USD
Availability: InStock

Intelligent Quadruped Robot - Industrial Model

GQR0440

Intelligent Quadruped Robot - Industrial Model

GROUND GUARDIAN

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51760015278447,"title":"Not included","option1":"Not included","option2":null,"option3":null,"sku":"GQR0440","requires_shipping":true,"taxable":true,"featured_image":{"id":60120216174959,"product_id":14663936967023,"position":1,"created_at":"2025-05-01T13:42:32-07:00","updated_at":"2025-05-01T13:42:33-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/GQR0440-product.jpg?v=1746132153","variant_ids":[51760015278447]},"available":true,"name":"Intelligent Quadruped Robot - Industrial Model - Not included","public_title":"Not included","options":["Not included"],"price":11100600,"weight":60000,"compare_at_price":10000000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51841756299631,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/GQR0440-product.jpg?v=1746132153"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51943441891695,"title":"LiDAR Slam Kit Included","option1":"LiDAR Slam Kit Included","option2":null,"option3":null,"sku":"GQR0440-KIT","requires_shipping":true,"taxable":true,"featured_image":{"id":60120219025775,"product_id":14663936967023,"position":2,"created_at":"2025-05-01T13:42:48-07:00","updated_at":"2025-05-01T13:42:50-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/GQR0440-KIT-product.png?v=1746132170","variant_ids":[51943441891695]},"available":true,"name":"Intelligent Quadruped Robot - Industrial Model - LiDAR Slam Kit Included","public_title":"LiDAR Slam Kit Included","options":["LiDAR Slam Kit Included"],"price":12455000,"weight":0,"compare_at_price":11210000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":51841759052143,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/GQR0440-KIT-product.png?v=1746132170"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
battery life	4 - 6 h
climbing ability	Climb up and down stairs of 40cm in forward direction
climbing angle	> 45°
continuous stair climbing	Stairs of 20-25 cm
ditch jumping width	0.5 - 1.2 m
max jump distance	>1.6 m
max speed	6 m/s
running speed	3 m/s
standing load	120 kg max.
walking load	> 40 kg
Product Revision	A

ELECTRICAL SPECIFICATIONS
battery capacity	45 Ah (2250 Wh)
battery voltage	58 V
endurance ability	Walking without load > 5h, and the mileage > 20km; Walking with 20kg load > 4h, and the mileage> 15km

INTERFACE SPECIFICATIONS
external interface	1000M-Base-Ethernet x 4 USB 3.0 x 4; 12V x 4, 5V x 1, 24V x 4, BAT x 1

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-20°C to +55°C

PHYSICAL SPECIFICATIONS
control and perception	Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development); Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
lying prone height	330 mm
lying prone length	880 mm
lying prone width	460 mm
max joint torque	About 360 N.m
product weight	60 kg (battery included)
sensing sensor	Depth camera ×2 + Optical camera ×2 (Varies with different configurations)
standing height	645 mm
standing length	1098 mm
standing width	450 mm

KEY SPECIFICATIONS
battery life	4 - 6 h
climbing ability	Climb up and down stairs of 40cm in forward direction
climbing angle	> 45°
continuous stair climbing	Stairs of 20-25 cm
ditch jumping width	0.5 - 1.2 m
max jump distance	>1.6 m
max speed	6 m/s
running speed	3 m/s
standing load	120 kg max.
walking load	> 40 kg
Product Revision	A

ELECTRICAL SPECIFICATIONS
battery capacity	45 Ah (2250 Wh)
battery voltage	58 V
endurance ability	Walking without load > 5h, and the mileage > 20km; Walking with 20kg load > 4h, and the mileage> 15km

INTERFACE SPECIFICATIONS
external interface	1000M-Base-Ethernet x 4 USB 3.0 x 4; 12V x 4, 5V x 1, 24V x 4, BAT x 1

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-20°C to +55°C

PHYSICAL SPECIFICATIONS
control and perception	Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development); Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)

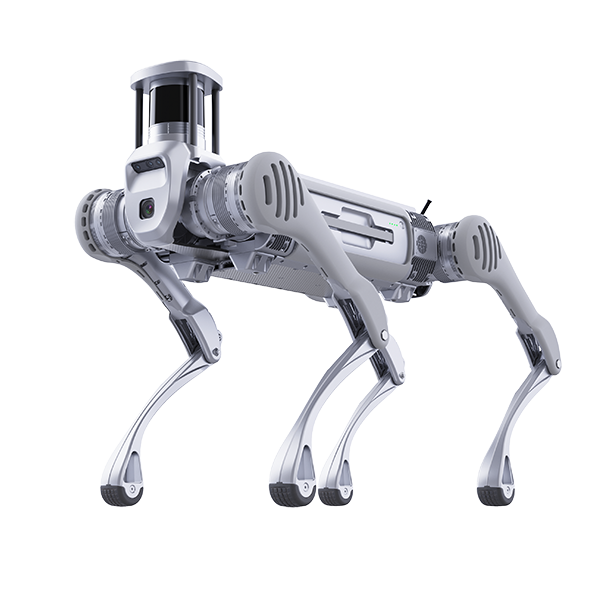

kit	with battery, navigation kit basic package
kit information	Hardware and soft kit. Including protective bracket and customized cable. 32-wire automotive-grade LiDAR1, Intel Core i7 computing board (built-in basic navigation algorithms) 1. Navigation algorithm and SDK included.
lying prone height	330 mm
lying prone length	880 mm
lying prone width	460 mm
max joint torque	About 360 N.m
product weight	60 kg (battery included)
sensing sensor	3D LiDAR ×1 + Depth camera ×2 + Optical camera ×2 (Varies with different configurations)
standing height	645 mm
standing length	1098 mm
standing width	450 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8543709990
Country of Origin	Made in China
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	1050 x 650 x 740 mm
Unit Package Weight	118 kg
Total Aluminium Content	0.9 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 2.25
