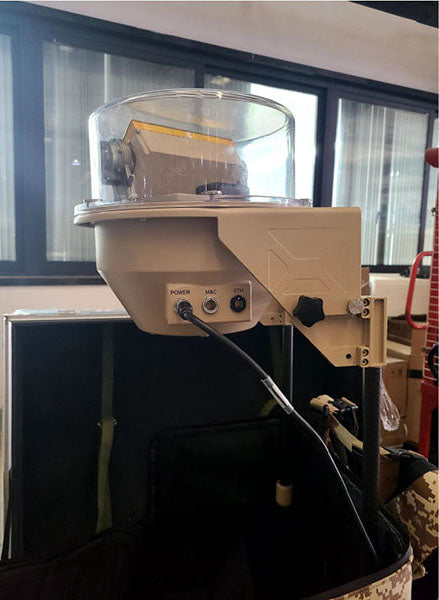

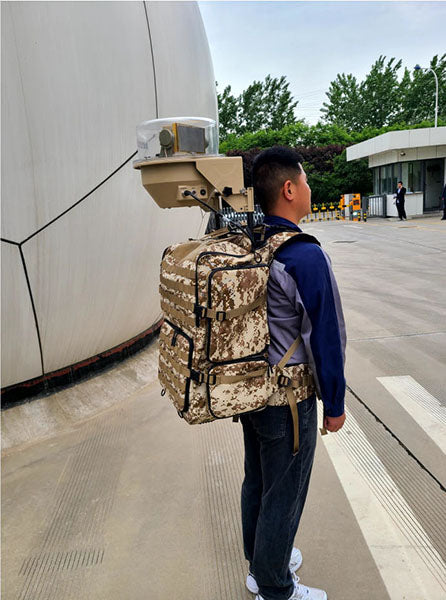

JM012KA

Journey ManPack 0.12m Ka-Band Antenna

JOURNEY MANPACK

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
acquisition and tracking Manual
antenna category Flyaway
band Ka-Band
of onboard los Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna aperture 0.12m
axis ratio ≤ 1.5 dB
azimuth acceleration 200°/s²
azimuth velocity ≥ 200°/s²
elevation acceleration 200°/s²
elevation veolcity ≥ 200°/s2
motion range AZ 0° - 360° infinity
motion range EL 0° - 90° finite
polarization Circular
sidelobe First sidelobe ≤ -12 dB
RF SPECIFICATIONS
port isolation Rx-Tx 60 dB
port isolation Tx-Rx 60 dB
power capacity ≥100 W/port
Rx frequency 17.70 - 21.20 GHz
rx gain 26.0dBi+20lg(f/19.45GHz)dBi
Rx VSWR ≤ 1.8 : 1
Tx frequency 27.50 - 31.00 GHz
tx gain 29.0dBi+20lg(f/29.5GHz)dBi
Tx VSWR ≤ 1.8 : 1
ELECTRICAL SPECIFICATIONS
power consumption 100w
power supply 12 - 24VDC, when the voltage change ±10 the system can work normally
ENVIRONMENTAL SPECIFICATIONS
humidity 95% (20°C)
IP rating IP65
temperature operational -40°C to +55°C
temperature storage -50°C to +70°C
PHYSICAL SPECIFICATIONS
default cable (included) Communication cables, Power supply cables, RF cables, Electrical power cables
default cable length 10m
product weight ≤ 4 kg (including 6w BUC, LNB); ≤ 8.5Kg(exclude battery)
RMS Better than 0.2 beam width (R.M.S)
