Ka-Band Ext Ref LNB 9000-100035
Ka-Band Ext Ref LNB 9000-100035
Ka-Band Ext Ref LNB 9000-100035
Ka-Band Ext Ref LNB 9000-100035

9000-100035

Ka-Band Ext Ref LNB 9000-100035

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 19.20 - 20.20 GHz
LO frequency 1 18.25 GHz
LO type External
noise figure max 1.6 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision F
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over 1000MHz) 4 dB p-p max.
Gain Flatness (over temperature) 6 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 3 dBm min.
output VSWR 2.5 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector 950 - 1950 MHz
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C
temperature storage -40°C to +60°C

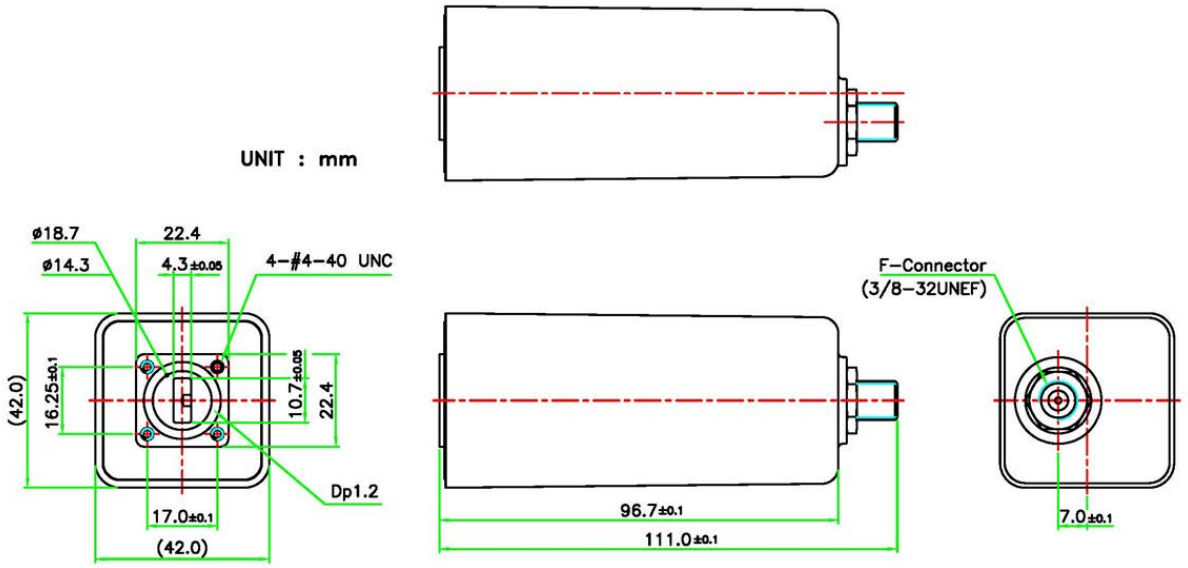

PHYSICAL SPECIFICATIONS
color FS33446
product height 0.042 m
product length 0.111 m
product weight 0.27 kg
product width 0.042 m
