LNB-100043

X-Band Single Band LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
external ref freq 10 MHz (sine-wave), -5 to +5 dBm
input frequency band 1 7.75 - 8.50 GHz
LO frequency 1 6.80 GHz
LO type PLL
noise figure max 0.8 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1700 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 62 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness (Over Full Band) 4 dB p-p max.
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.3 : 1 max.
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA-Connector (50 Ohm)
RF input connector CPR-112G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

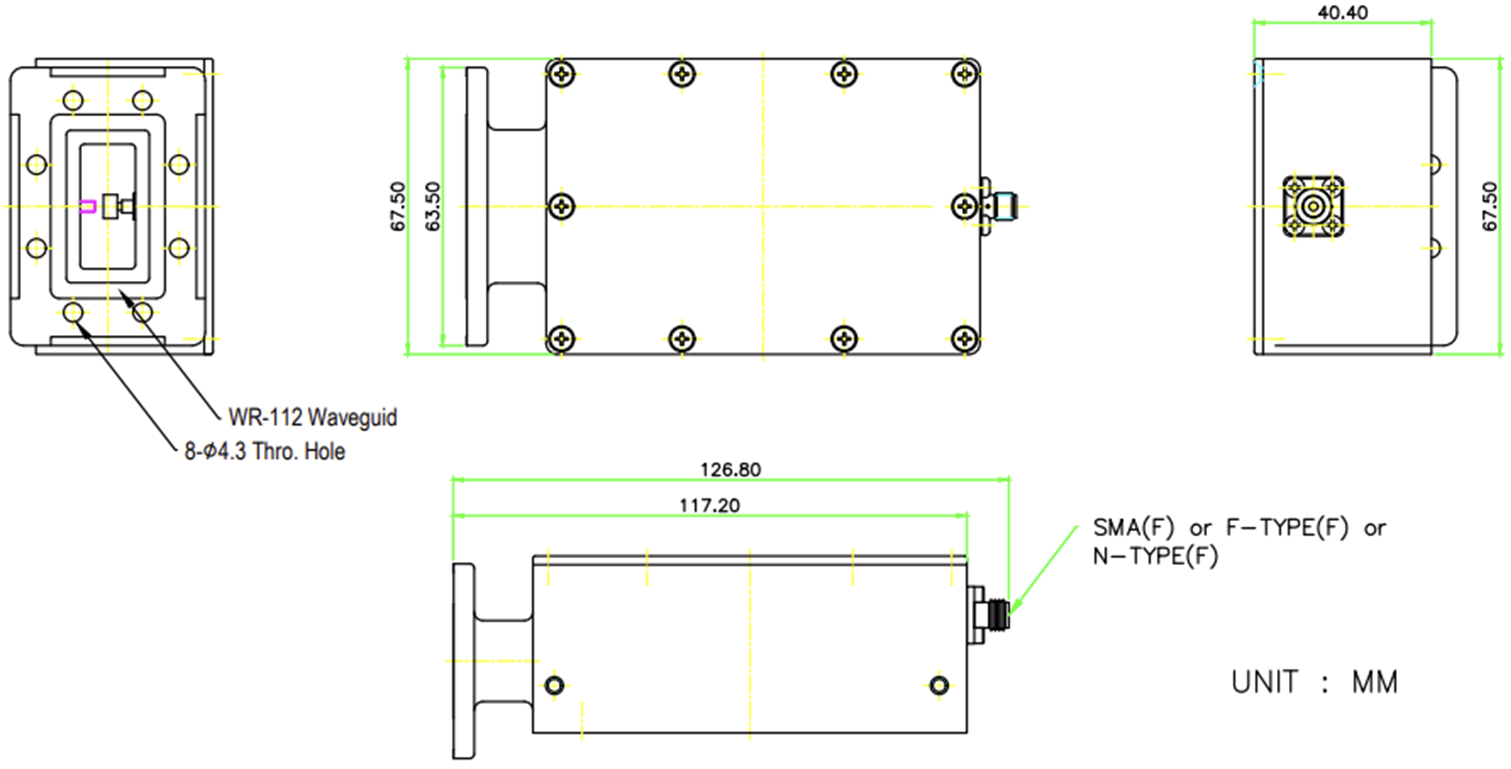

PHYSICAL SPECIFICATIONS
product height 45.9 mm
product length 117.2 mm
product weight 0.6 kg
product width 67.5 mm
