KU-BAND 8W NON-INVERTED EOL
KU-BAND 8W NON-INVERTED EOL
KU-BAND 8W NON-INVERTED EOL
KU-BAND 8W NON-INVERTED EOL

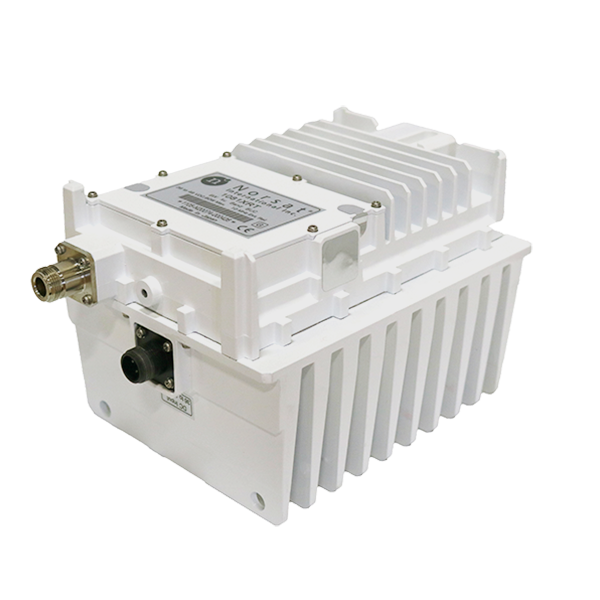

1081XRTNE

KU-BAND 8W NON-INVERTED EOL

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 22 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band KU
external reference phase noise 100hz -135 dBc/Hz
external reference phase noise 10hz offset -150 dBc/Hz
external reference phase noise 1khz -140 dBc/Hz
external ref freq 10 MHz
external ref level -5 to +5 dBm
input frequency 950 to 1700 MHz
output frequency 13.75 to 14.50 GHz
phase noise 100kHz -90 dBc/Hz max
phase noise 10khz offset -80 dBc/Hz max
phase noise 1khz -70 dBc/Hz max
Product Revision A
RF SPECIFICATIONS
gain stability (over temperature) ±2.25 dB at any constant frequency
gain stability in band contant temperature ±1.0 dB in any 54 MHz band ; ±3.0 dB over full 750 MHz band
gain stability variable temperature & frequency 59 dB min 66 dB max
input VSWR 2.0 : 1
output P1dB 39dBm
output VSWR 2.1 : 1
ELECTRICAL SPECIFICATIONS
power consumption BUC: 80 W ; BUC & AC PS: 94 W ; BUC & AC PS: 91 W
power requirements BUC: 48 V ; BUC & AC PS: 100 V ; BUC & AC PS: 240 V
INTERFACE SPECIFICATIONS
RF output waveguide WR75 - grooved
ENVIRONMENTAL SPECIFICATIONS
temperature range 40°C to +55°C
PHYSICAL SPECIFICATIONS

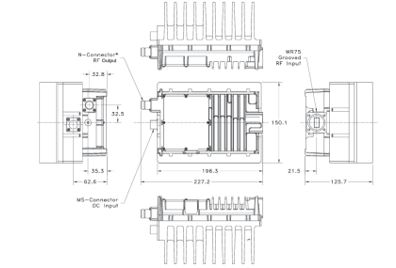

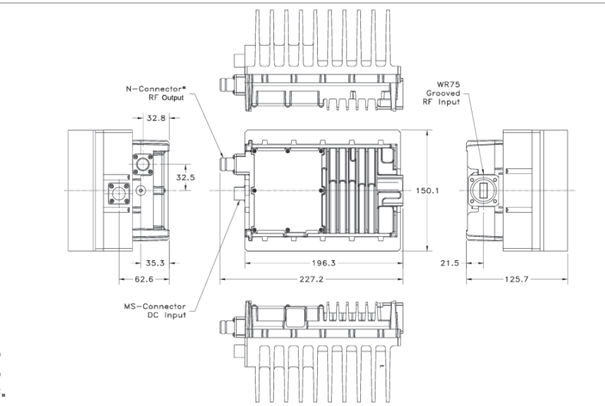

dimensions BUC (LxWxH) 230 mm x 130 mm x 130 mm (9.1 in x 5.1 in x 5.1 in)
dimensions PS (LxWxH) 258 mm x 149 mm x 73 mm (10.2 in x 5.9 in x 2.9 in)
weight BUC 4.0 kg (8.8 lb)
weight PS 2.0 kg (4.4 lb)
