Ku-Band Single Band Ext Ref PLL LNB
Ku-Band Single Band Ext Ref PLL LNB
Ku-Band Single Band Ext Ref PLL LNB
Ku-Band Single Band Ext Ref PLL LNB

LNB-100193

Ku-Band Single Band Ext Ref PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 3.4 - 4.8 GHz
LO frequency 1 5.75 GHz
LO type PLL
noise temperature max 45K
number of onboard LOs Single-Band
output frequency band 1 950 - 2350 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 60 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness (Over Any 36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 6 dB p-p
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector CPR-229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

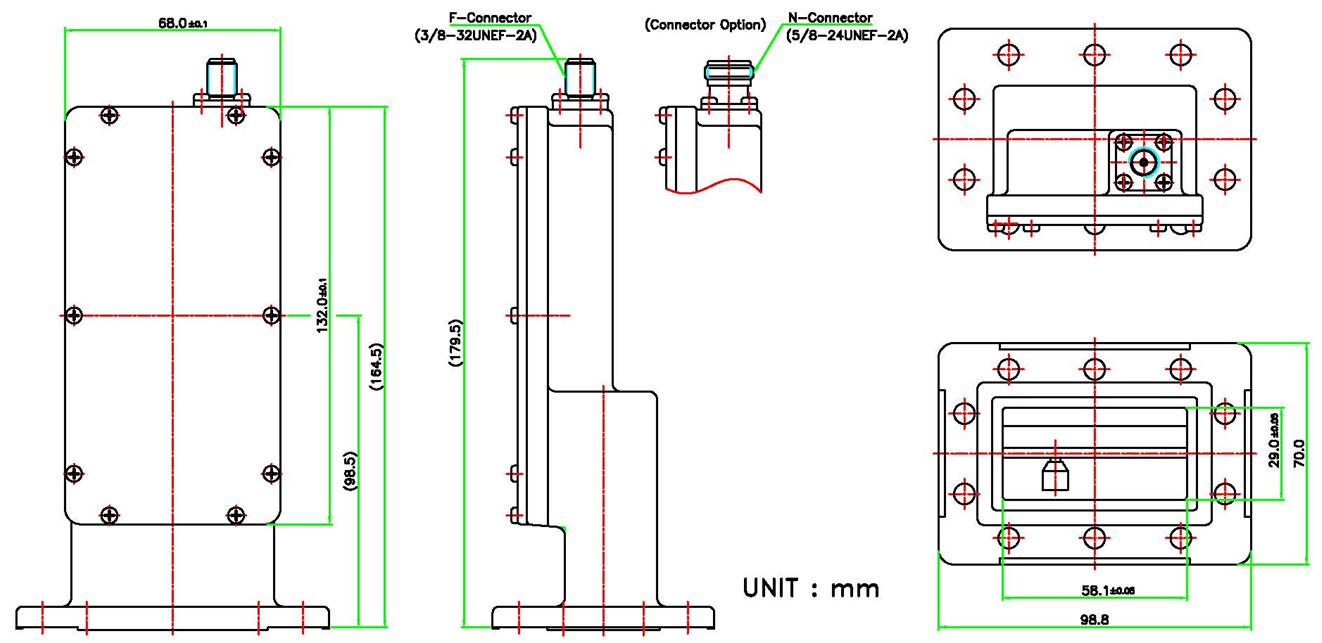

PHYSICAL SPECIFICATIONS
product height 70.0 mm
product length 164.5 mm
product weight 0.575 kg
product width 98.8 mm
