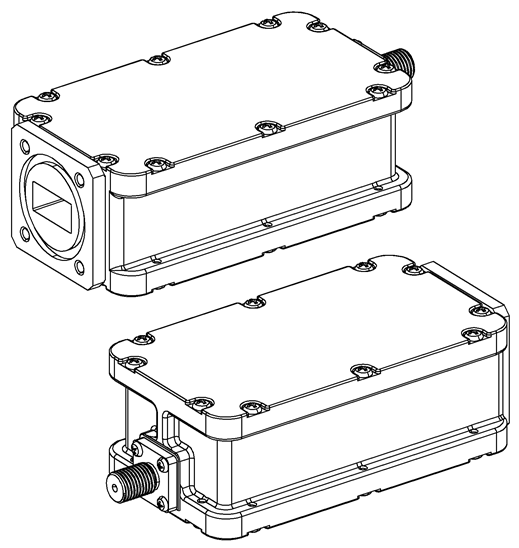

LNB-100190

Ku-Band Single Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 10.0 - 10.5 GHz
LO frequency 1 8.8 GHz
LO type PLL
noise figure max 0.9 dB
number of onboard LOs Single-Band
output frequency band 1 1200 - 1700 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) 1 dB p-p max.
Gain Flatness (over full band) 4 dB p-p max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

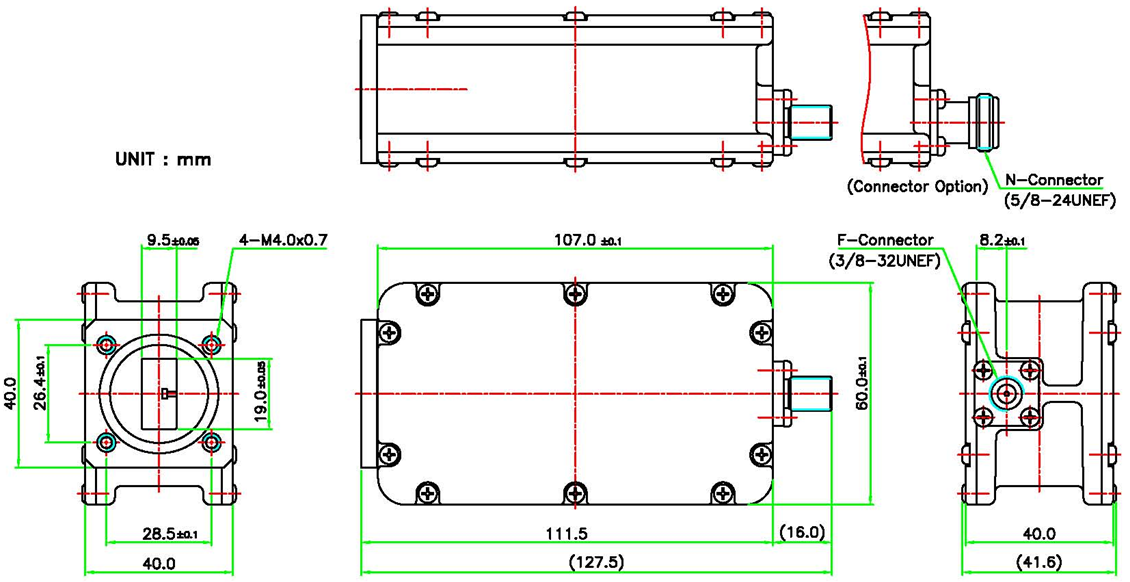

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 112 mm
product weight 0.38 kg
product width 60 mm
