BPF-100138

Ku-Band Transmit Reject Filter

ACCESSORIES

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
frequency 11.70 - 12.20 GHz
rejection 60 dB min. at 10.55 to 10.68 GHz
55 dB min. at 14.00 to 14.50 GHz
Product Revision A

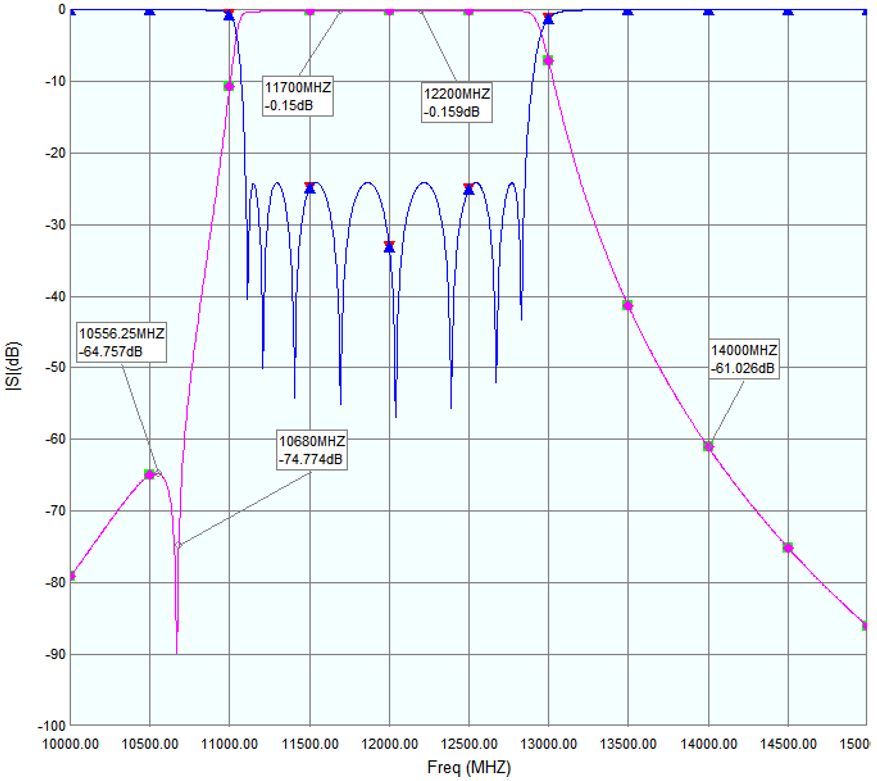

RF SPECIFICATIONS
insertion loss 0.25 dB typ.
VSWR 1.25 : 1 max.
INTERFACE SPECIFICATIONS
RF input Flange WR-75 Grooved
RF output Flange WR-75 Flat
ENVIRONMENTAL SPECIFICATIONS
barometric pressure 55 KPa - 106 KPa
humidity 5% to 95%
temperature operational -40 to +60°C
temperature storage -40 to +85˚C

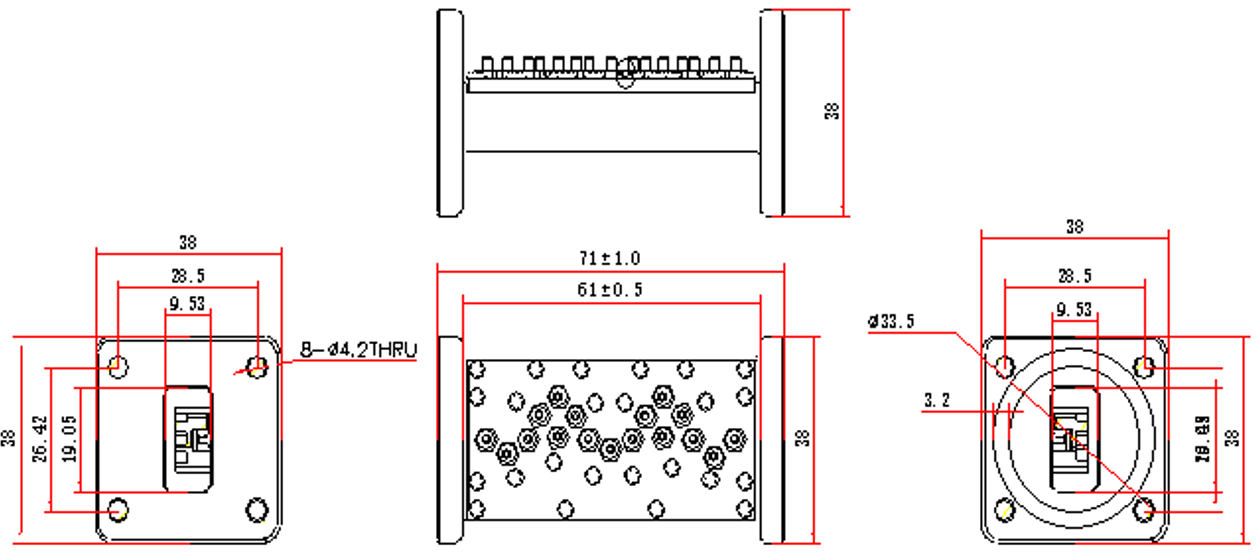

PHYSICAL SPECIFICATIONS
product height 38 mm
product length 71 mm
product weight 0.35 kg
product width 38 mm
