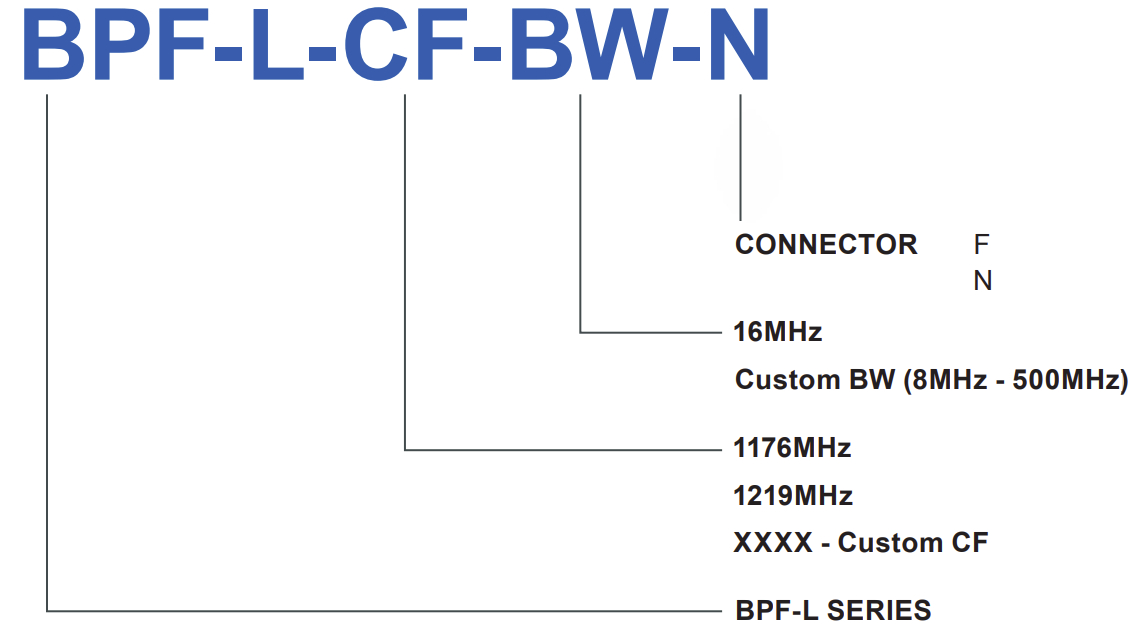

BPF-L-1279-72-F
L-Band Bandpass Filter
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | L-Band |
| center frequency | 1279 MHz |
| input frequency band 1 | 1243 - 1315 MHz |

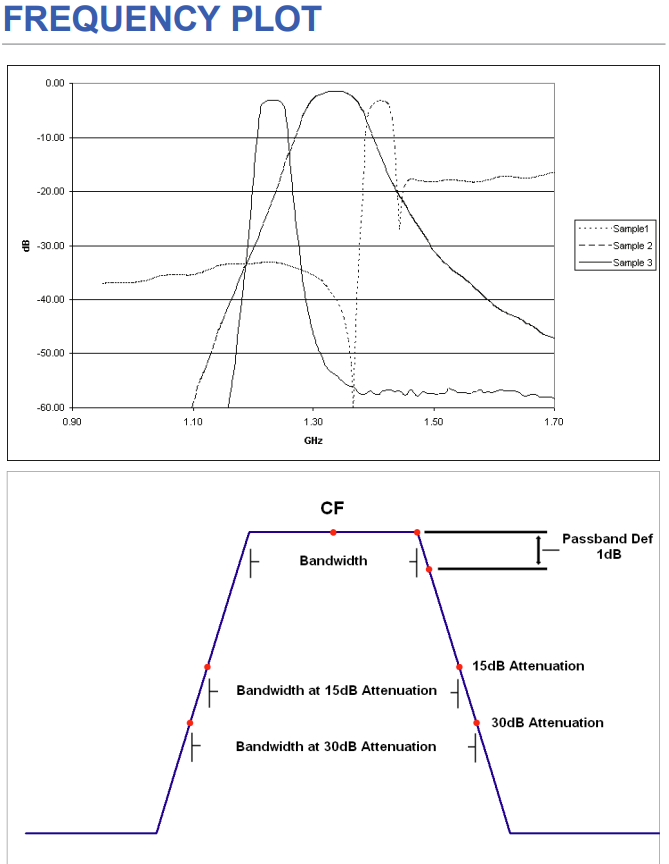

| pass band definition | 1.0 dB |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| 10 MHz pass insertion loss | 1 dB max. |
| 1dB Bandwidth | CF +/- 36 MHz Min, CF +/- 42 MHz Max |
| Attenuation @CF +/- 55MHz | 15dB min |
| Attenuation @CF +/- 75MHz | 30dB Min |
| bandwidth | 72 MHz |
| insertion loss in band | 2 dB max. @ CF |
| return loss | 15 dB min |
| Ripple within BW | 1 dB max |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 400 mA |
| power requirements | + 15 to + 24 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| IF connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -30°C to + 85°C |
