Name: Line Attenuator
Brand: Norsat International Inc.
SKU: LA106F
Price: 518.00 USD
Availability: InStock

LA106F

Line Attenuator

LA106F

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":41295420653751,"title":"F \/ 06 - 6 dB","option1":"F","option2":"06 - 6 dB","option3":null,"sku":"LA106F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - F \/ 06 - 6 dB","public_title":"F \/ 06 - 6 dB","options":["F","06 - 6 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420686519,"title":"F \/ 09 - 9 dB","option1":"F","option2":"09 - 9 dB","option3":null,"sku":"LA109F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - F \/ 09 - 9 dB","public_title":"F \/ 09 - 9 dB","options":["F","09 - 9 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420719287,"title":"F \/ 12 - 12 dB","option1":"F","option2":"12 - 12 dB","option3":null,"sku":"LA112F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - F \/ 12 - 12 dB","public_title":"F \/ 12 - 12 dB","options":["F","12 - 12 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420752055,"title":"F \/ 18 - 18 dB","option1":"F","option2":"18 - 18 dB","option3":null,"sku":"LA118F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - F \/ 18 - 18 dB","public_title":"F \/ 18 - 18 dB","options":["F","18 - 18 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420784823,"title":"N \/ 06 - 6 dB","option1":"N","option2":"06 - 6 dB","option3":null,"sku":"LA106N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - N \/ 06 - 6 dB","public_title":"N \/ 06 - 6 dB","options":["N","06 - 6 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420817591,"title":"N \/ 09 - 9 dB","option1":"N","option2":"09 - 9 dB","option3":null,"sku":"LA109N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - N \/ 09 - 9 dB","public_title":"N \/ 09 - 9 dB","options":["N","09 - 9 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420850359,"title":"N \/ 12 - 12 dB","option1":"N","option2":"12 - 12 dB","option3":null,"sku":"LA112N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - N \/ 12 - 12 dB","public_title":"N \/ 12 - 12 dB","options":["N","12 - 12 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41295420883127,"title":"N \/ 18 - 18 dB","option1":"N","option2":"18 - 18 dB","option3":null,"sku":"LA118N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Line Attenuator - N \/ 18 - 18 dB","public_title":"N \/ 18 - 18 dB","options":["N","18 - 18 dB"],"price":51800,"weight":140,"compare_at_price":51800,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

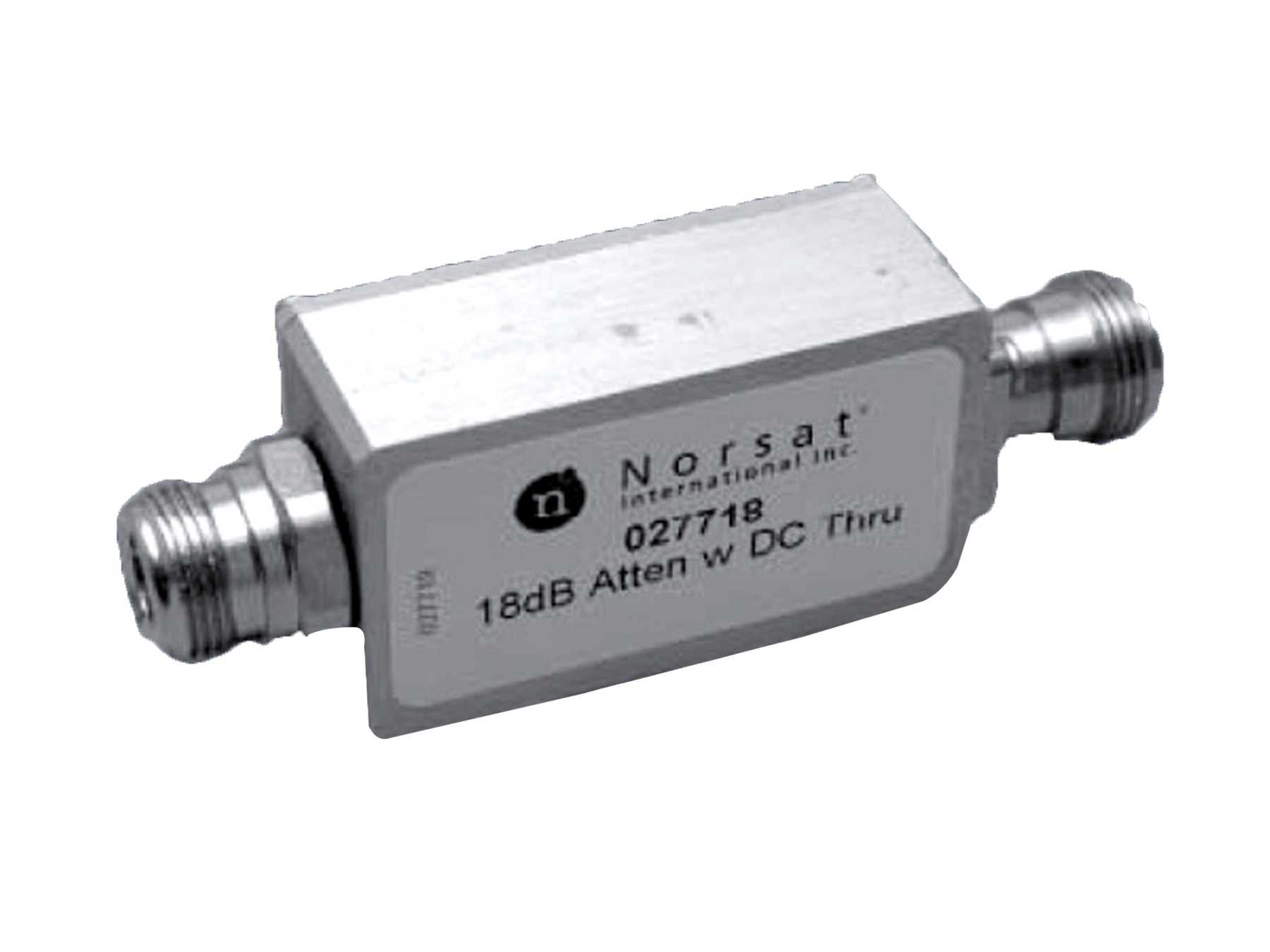

Norsat's Line Attenuator allows up to 3A of current and passes 10 MHz Reference Signal. It features a rugged machined aluminum chassis, and is environmentally sealed and moisture resistant.

KEY SPECIFICATIONS
band	L-BAND
input frequency band 1	950 - 1750 MHz
Product Revision	A

INTERFACE SPECIFICATIONS
RF input connector	F: Type F Connector (75 Ohm)

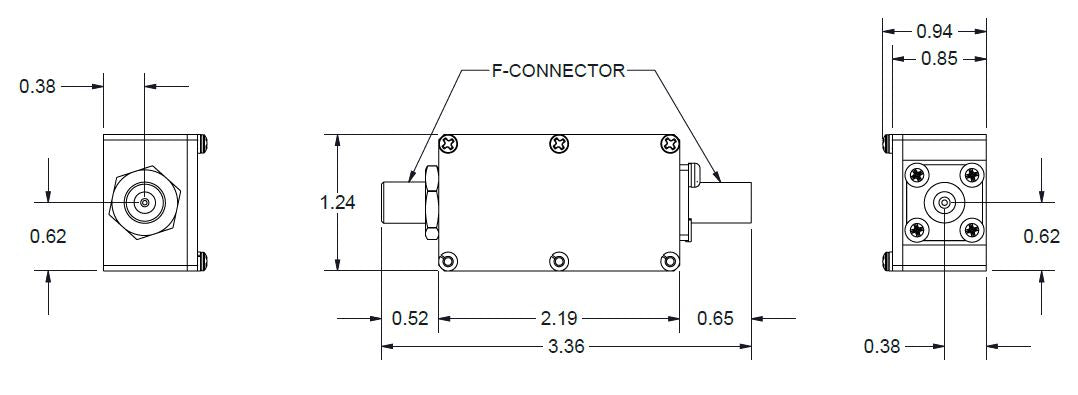

PHYSICAL SPECIFICATIONS
product height	25 mm
product length	90 mm
product weight	0.14 kg
product width	35 mm

ACCESSORIES
attenuation options	6 dB

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	90 x 35 x 25 mm
Unit Package Weight	-
Total Aluminium Content	0.068 kg
Aluminum Country of Smelt and Cast	CA
Total Aluminium Value	$ 0.17
