LNB-100009
LNB-100009 C-Band Single Band PLL LNB
3000 Series
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | C-Band |
| input frequency band 1 | 4.50 - 4.80 GHz |
| LO frequency 1 | 5.75 GHz |
| LO stability | ±2 kHz |
| LO type | PLL |
| Noise Temperature | 30K max. |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1250 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain max | 70 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness | 6 dB p-p max. (0°C - 60°C) |
| Gain Flatness (over full band) | 5 dB p-p max. |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 1kHz offset max | -65 dBc/Hz |
| phase noise 10kHz offset max | -80 dBc/Hz |
| phase noise 100kHz offset max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 250 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| IF connector | N-Connector |
| RF input connector | CPR 229G waveguide grooved |
| M and C SPECIFICATIONS | |
|---|---|
| led indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP67 |
| temperature operational | 0 to +60°C |

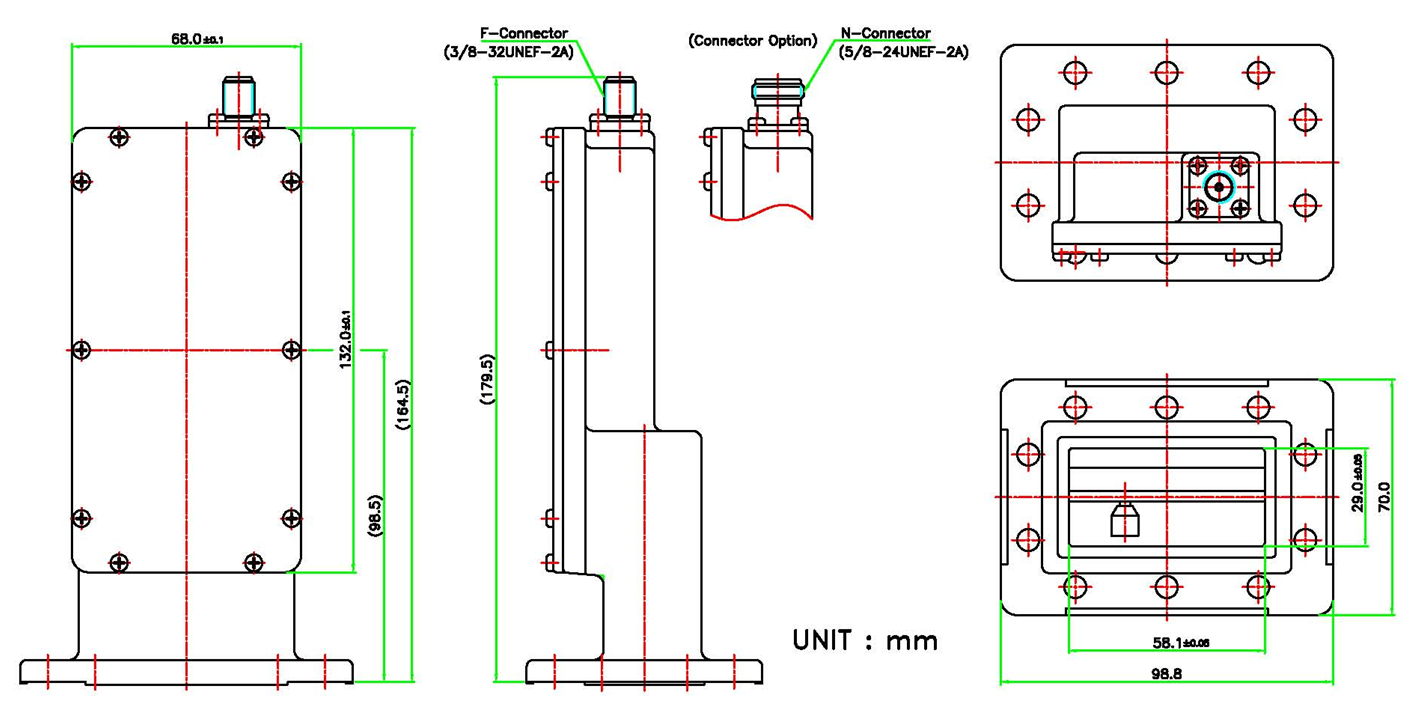

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 99 mm |
| product length | 165 mm (excludes connector) |
| product weight | 0.575 kg |
| product width | 70 mm |
