LNB Redundant Switch System 1:1
LNB Redundant Switch System 1:1

RSLNBKU11F

LNB Redundant Switch System 1:1

RSLNB Series

Regular price MSRP: $13,000.00
/
Quantity Available: Contact Sales
Lead Time: 12 - 16 Weeks

View Resellers Quantity

(Scroll to see specifications and documents)


Only -1 items in stock!



KEY SPECIFICATIONS
band Ku-Band
RF SPECIFICATIONS
output VSWR 2.0 max.
ELECTRICAL SPECIFICATIONS
power requirements 100-240 VAC (50-60 Hz)
INTERFACE SPECIFICATIONS
component type LNB
redundancy 1:1
RF input connector WR-75
RF output connector F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity Operational: 8% - 100% | Storage: 10% - 100%
temperature operational -40 to +60˚C
temperature storage -50 to +80˚C
Waterproofing IP66 (ODU)
PHYSICAL SPECIFICATIONS

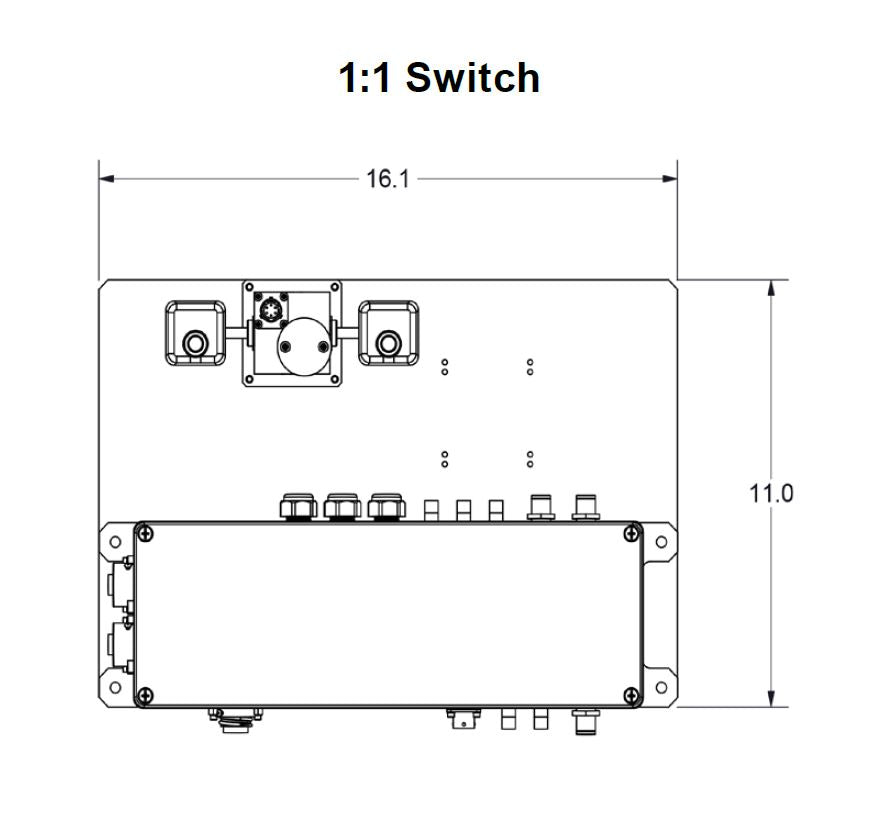

dimensions (LxWxH) 16.25 in x 12.00 in x 5.01 in
IDU Dimensions (LxWxH) 19.00 in x 9.86 in x 1.72 in
IDU Weight 3.45 lbs (1.6 kg)
Weight 12 lbs (5.4 kg)
