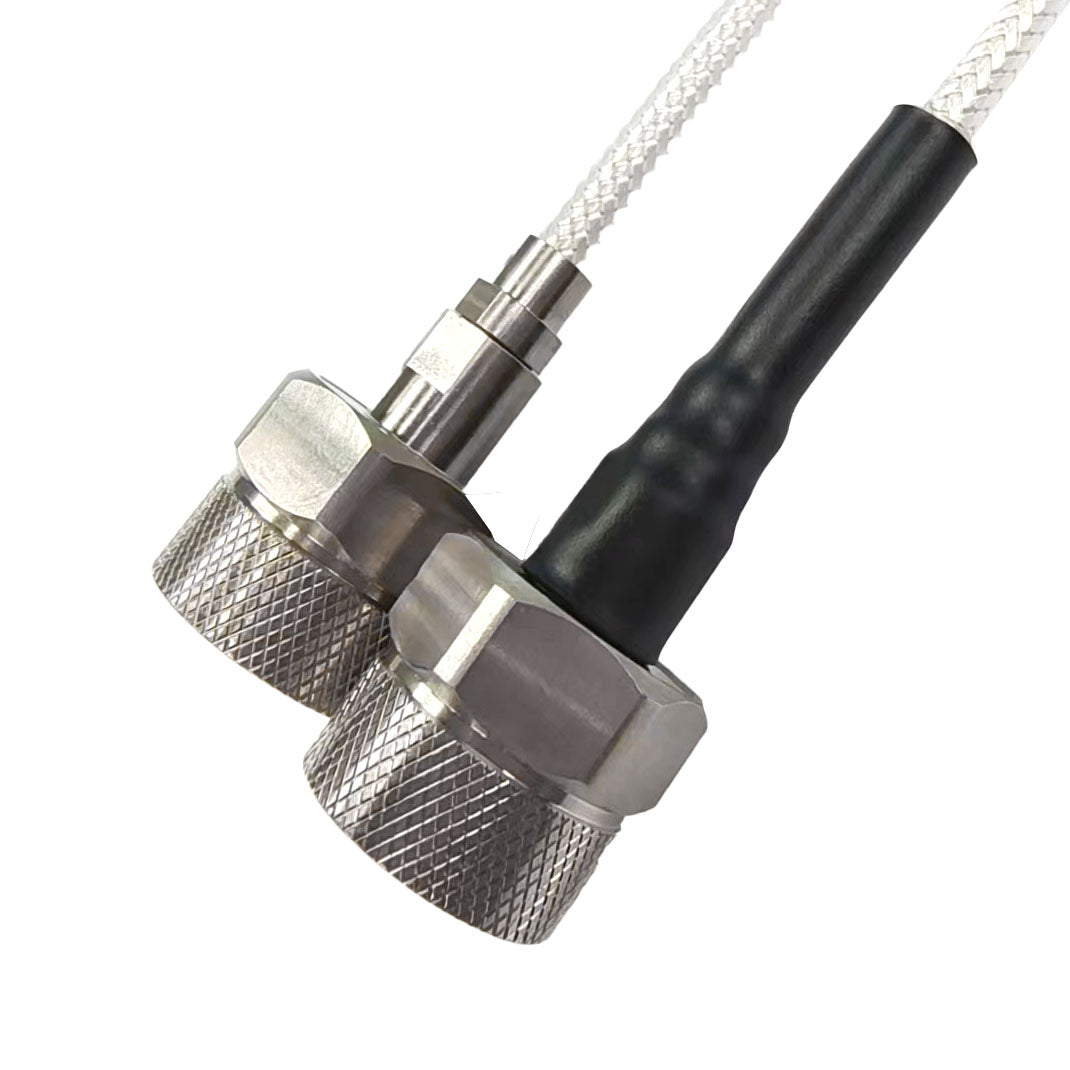

Name: Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector
Brand: Norsat International Inc.
SKU: CFE158NCNSMSMASM-005
Price: 275.00 USD
Availability: InStock

Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector

CFE158NCNSMSMASM-005

Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021928395119,"title":"SMA Straight Male \/ 5m","option1":"SMA Straight Male","option2":"5m","option3":null,"sku":"CFE158NCNSMSMASM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 5m","public_title":"SMA Straight Male \/ 5m","options":["SMA Straight Male","5m"],"price":27500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928427887,"title":"SMA Straight Male \/ 10m","option1":"SMA Straight Male","option2":"10m","option3":null,"sku":"CFE158NCNSMSMASM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 10m","public_title":"SMA Straight Male \/ 10m","options":["SMA Straight Male","10m"],"price":48400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928460655,"title":"SMA Straight Male \/ 30m","option1":"SMA Straight Male","option2":"30m","option3":null,"sku":"CFE158NCNSMSMASM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 30m","public_title":"SMA Straight Male \/ 30m","options":["SMA Straight Male","30m"],"price":131700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928493423,"title":"SMA Straight Male \/ 50m","option1":"SMA Straight Male","option2":"50m","option3":null,"sku":"CFE158NCNSMSMASM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 50m","public_title":"SMA Straight Male \/ 50m","options":["SMA Straight Male","50m"],"price":215000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928526191,"title":"SMA Straight Male \/ 100m","option1":"SMA Straight Male","option2":"100m","option3":null,"sku":"CFE158NCNSMSMASM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 100m","public_title":"SMA Straight Male \/ 100m","options":["SMA Straight Male","100m"],"price":423400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928558959,"title":"SMA Straight Male \/ 200m","option1":"SMA Straight Male","option2":"200m","option3":null,"sku":"CFE158NCNSMSMASM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - SMA Straight Male \/ 200m","public_title":"SMA Straight Male \/ 200m","options":["SMA Straight Male","200m"],"price":840000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928591727,"title":"N Straight Male \/ 5m","option1":"N Straight Male","option2":"5m","option3":null,"sku":"CFE158NCNSMNCNSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 5m","public_title":"N Straight Male \/ 5m","options":["N Straight Male","5m"],"price":28000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928624495,"title":"N Straight Male \/ 10m","option1":"N Straight Male","option2":"10m","option3":null,"sku":"CFE158NCNSMNCNSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 10m","public_title":"N Straight Male \/ 10m","options":["N Straight Male","10m"],"price":48800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928657263,"title":"N Straight Male \/ 30m","option1":"N Straight Male","option2":"30m","option3":null,"sku":"CFE158NCNSMNCNSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 30m","public_title":"N Straight Male \/ 30m","options":["N Straight Male","30m"],"price":132100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928690031,"title":"N Straight Male \/ 50m","option1":"N Straight Male","option2":"50m","option3":null,"sku":"CFE158NCNSMNCNSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 50m","public_title":"N Straight Male \/ 50m","options":["N Straight Male","50m"],"price":215500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928722799,"title":"N Straight Male \/ 100m","option1":"N Straight Male","option2":"100m","option3":null,"sku":"CFE158NCNSMNCNSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 100m","public_title":"N Straight Male \/ 100m","options":["N Straight Male","100m"],"price":423800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928755567,"title":"N Straight Male \/ 200m","option1":"N Straight Male","option2":"200m","option3":null,"sku":"CFE158NCNSMNCNSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Straight Male \/ 200m","public_title":"N Straight Male \/ 200m","options":["N Straight Male","200m"],"price":840500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928788335,"title":"N Right Angle Male \/ 5m","option1":"N Right Angle Male","option2":"5m","option3":null,"sku":"CFE158NCNSMNCNRM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 5m","public_title":"N Right Angle Male \/ 5m","options":["N Right Angle Male","5m"],"price":29200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928821103,"title":"N Right Angle Male \/ 10m","option1":"N Right Angle Male","option2":"10m","option3":null,"sku":"CFE158NCNSMNCNRM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 10m","public_title":"N Right Angle Male \/ 10m","options":["N Right Angle Male","10m"],"price":50000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928853871,"title":"N Right Angle Male \/ 30m","option1":"N Right Angle Male","option2":"30m","option3":null,"sku":"CFE158NCNSMNCNRM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 30m","public_title":"N Right Angle Male \/ 30m","options":["N Right Angle Male","30m"],"price":133400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928886639,"title":"N Right Angle Male \/ 50m","option1":"N Right Angle Male","option2":"50m","option3":null,"sku":"CFE158NCNSMNCNRM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 50m","public_title":"N Right Angle Male \/ 50m","options":["N Right Angle Male","50m"],"price":216700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928919407,"title":"N Right Angle Male \/ 100m","option1":"N Right Angle Male","option2":"100m","option3":null,"sku":"CFE158NCNSMNCNRM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 100m","public_title":"N Right Angle Male \/ 100m","options":["N Right Angle Male","100m"],"price":425000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021928952175,"title":"N Right Angle Male \/ 200m","option1":"N Right Angle Male","option2":"200m","option3":null,"sku":"CFE158NCNSMNCNRM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Low Loss Phase Stable Cable 12 - 26.5 GHz - N Straight Male Connector - N Right Angle Male \/ 200m","public_title":"N Right Angle Male \/ 200m","options":["N Right Angle Male","200m"],"price":841700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.03 dB Typ.@18GHz
cable insertion loss	7.9 dB
capacitance	438.5 pF Max.
phase stability vs flesure	±3° Typ.@18GHz
phase stability vs temprature	1000PPM Typ.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	127W max.@18GHz

INTERFACE SPECIFICATIONS
connector 1	N Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Brass, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	SMA Straight Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Brass, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

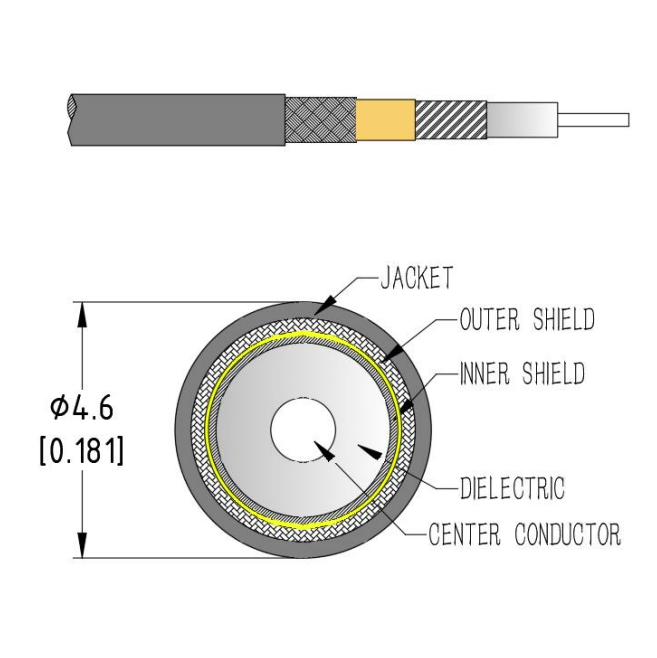

PHYSICAL SPECIFICATIONS
cable diameter	4.6mm
cable jacket	FEP
min bending life	50000
min bending radius	23 mm

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-18GHz
jacket size	4.6 mm
material flexibility	Flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-
