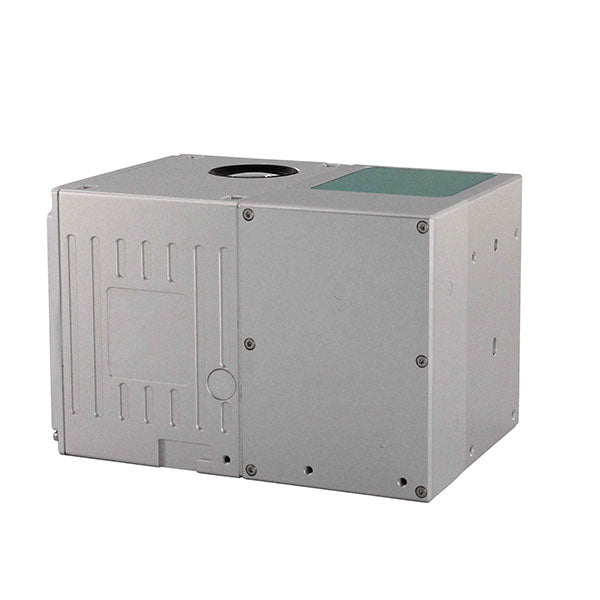

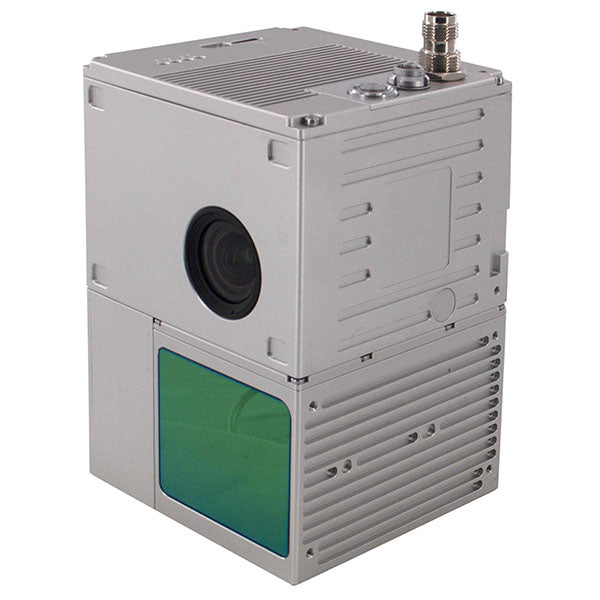

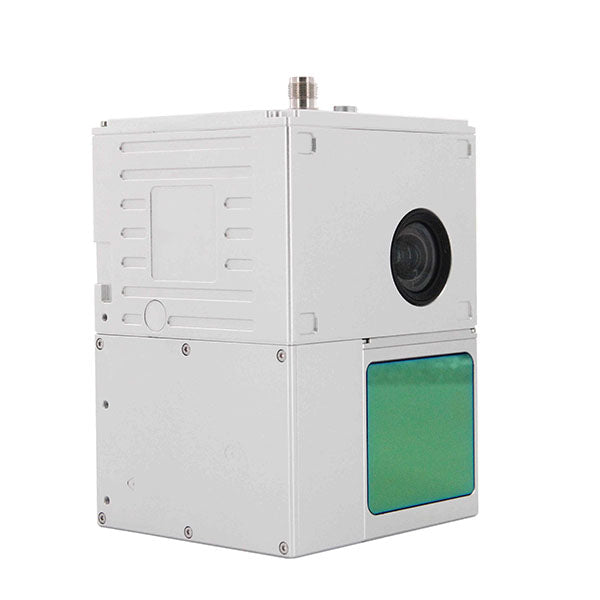

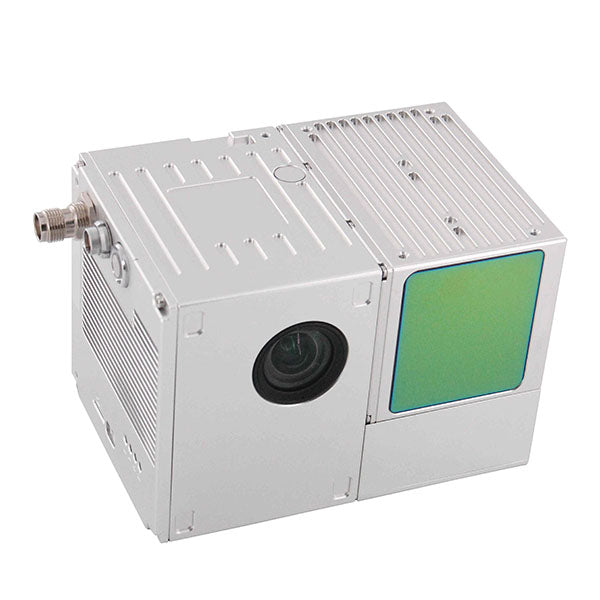

LUMIE120-10C

LUMENIX Entry Level, Short-Range Detection Aerial LiDAR Solution

LUMENIX Industrial

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
accuracy absolute 10cm@100m
accuracy relative ±1 cm
camera effective pixel 26MP
camera scanning mode SHARE
laser data Triple echo, 720,000 Points/Sec
laser horizontal FOV 70°
laser measuring range 120m
laser range accuracy ±1cm
laser scanning mode Equivalent to 64-beam
mapping mode RTK/PPK
POS GNSS signal type GPS L1/L2; GLO L1/L2; GAL E1/E5b; BDS B1/B3/B2a (Supports BeiDou-only Mode)
POS heading accuracy 0.040°
POS pitch accuracy 0.015°
POS positioning accuracy horizontal ≤0.05m
POS roll accuracy 0.015°
POS update rate 200 Hz
response time real-time
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 12 - 24V
power consumption 20W
INTERFACE SPECIFICATIONS
point cloud density 140pts/㎡@100m@10m/s
processing storage Point Cloud Creater
software mission planning software (Optional) Customized Route Planning Software — WayPoint Master
software point cloud automata (Optional) PCA software - point cloud classification and post processing software
software point cloud creater Perpetual license - Self-developed PointCloud Creater software
storage 64GB, Max suport 256GB TF card
supported platform Multi-Rotor Drones, vehicals/Other DIY options available
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to 55°C
temperature storage -40°C to 70°C
PHYSICAL SPECIFICATIONS
material Aluminum Alloy Body
product height 91 mm
product length 136 mm
product weight 1 kg
product width 94 mm
