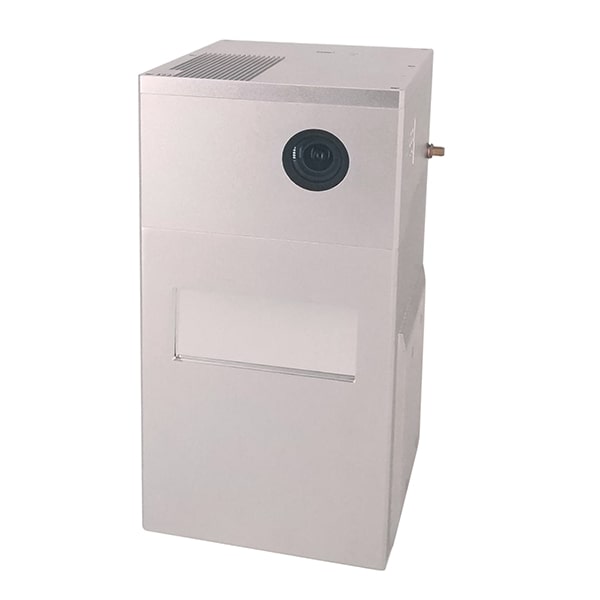

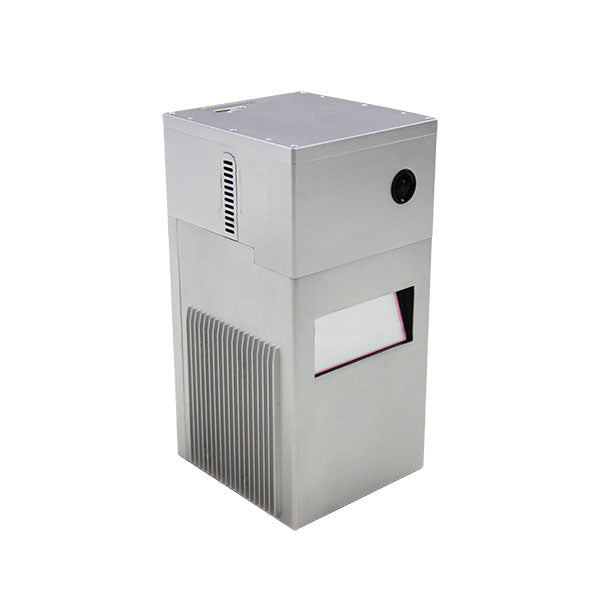

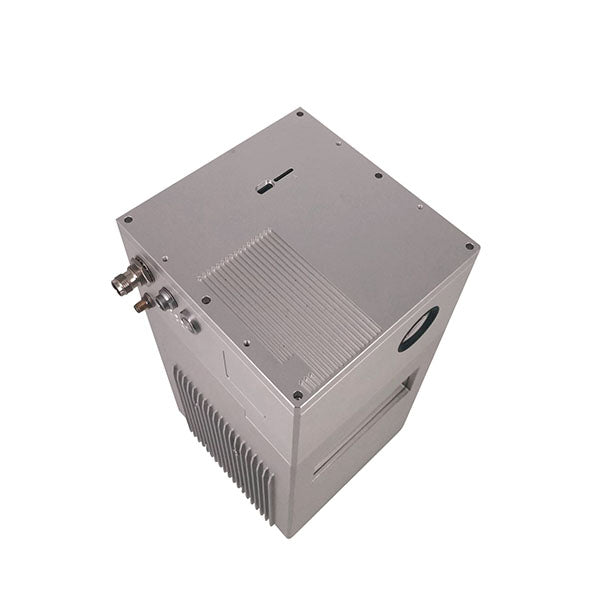

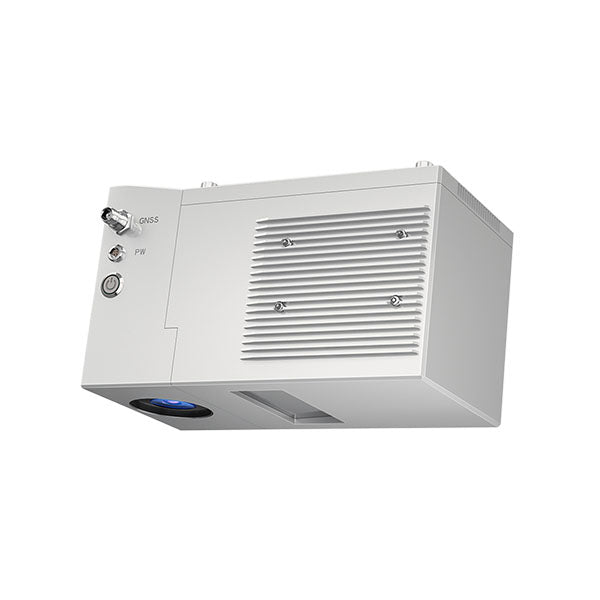

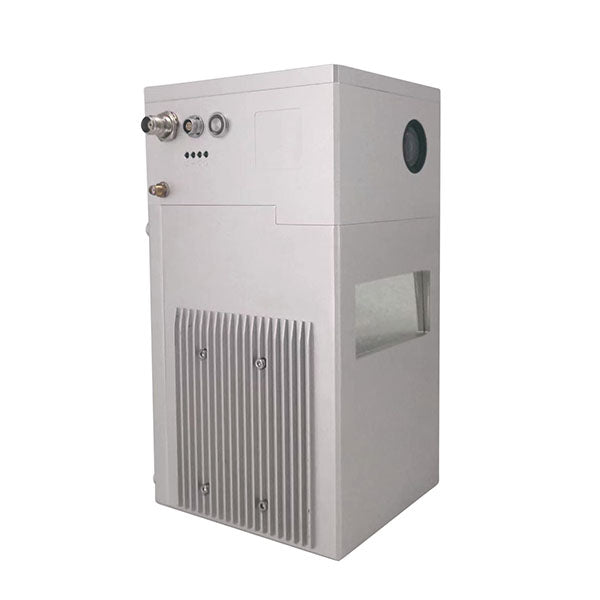

LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey
LUMENIX High-Precision LiDAR for Large-scale Aerial Survey

LUMIF2000-10G

LUMENIX High-Precision LiDAR for Large-scale Aerial Survey

LUMENIX Industrial

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
accuracy absolute 10cm@600m
accuracy relative 3mm@100m
camera effective pixel 45MP
camera scanning mode SHARE
laser data Seven echo, 2,000,000 Points/Sec
laser horizontal FOV 75°
laser measuring range 2000m
laser range accuracy 3mm@100m
laser scanning mode Sing beam
mapping mode RTK/PPK
POS GNSS signal type GPS L1/L2; GLO L1/L2; GAL E1/E5b; BDS B1/B3/B2a (Supports BeiDou-only Mode)
POS heading accuracy 0.010°
POS pitch accuracy 0.003°
POS positioning accuracy horizontal ≤0.05m
POS roll accuracy 0.003°
POS update rate 200 Hz
response time real-time
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 12 - 24V
power consumption 70W
INTERFACE SPECIFICATIONS
point cloud density 10pts/㎡@400m@10m/s
processing storage Point Cloud Creater
software mission planning software (Optional) Customized Route Planning Software — WayPoint Master
software point cloud automata (Optional) PCA software - point cloud classification and post processing software
software point cloud creater Perpetual license - Self-developed PointCloud Creater software
storage 64GB, Max suport 25GB TF card
supported platform Multi-Rotor Drones, Fixed Wing UAVs, Manned Aircrafts/vehical/Other DIY options available
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to 55°C
temperature storage -40°C to 70°C
PHYSICAL SPECIFICATIONS
material Aluminum Alloy Body
product height 125 mm
product length 254 mm
product weight 3.3 kg
product width 132 mm
