LUMRC050-02

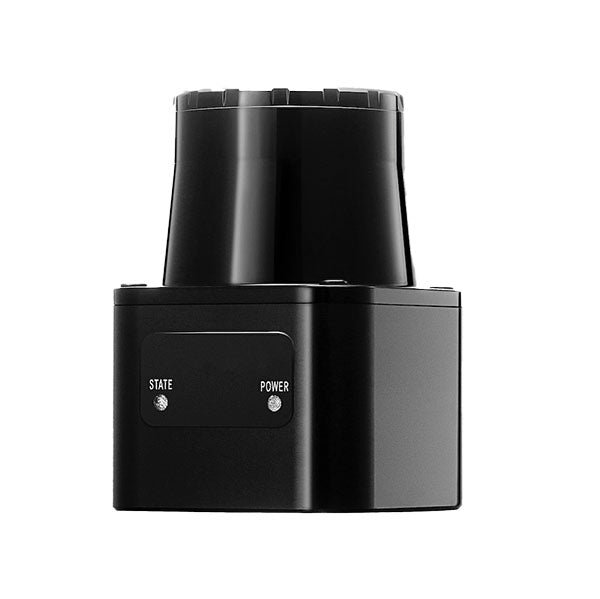

LUMENIX Mini Slam Nivigation LiDAR

Robotics LiDAR

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



Makes mobile robots (AMR) become smaller and more agile With Compact Design and more powerful Performance in accuracy, scanning frequency and resolution

KEY SPECIFICATIONS
data rates 27000/32400 points/sec
horizontal FOV 270°
horizontal resolution 0.125°@15HZ/0.25°@25HZ
laser wavelength 905nm
number of channels 1
operating range 50m (15m@10%)
ranging accuracy ±2cm
ranging distance 0.05 - 50m
response time <67ms
scanning frequency 15Hz/25Hz
Product Revision A
ELECTRICAL SPECIFICATIONS
power consumption 4W
INTERFACE SPECIFICATIONS
communication interface Ethernet and IO
ENVIRONMENTAL SPECIFICATIONS
IP rating IP66 GB / T 4208-2007
laser safety Class I (eye safety) EN 60825-1:2014
temperature operational -25℃-50℃
temperature storage -30℃ - 70℃

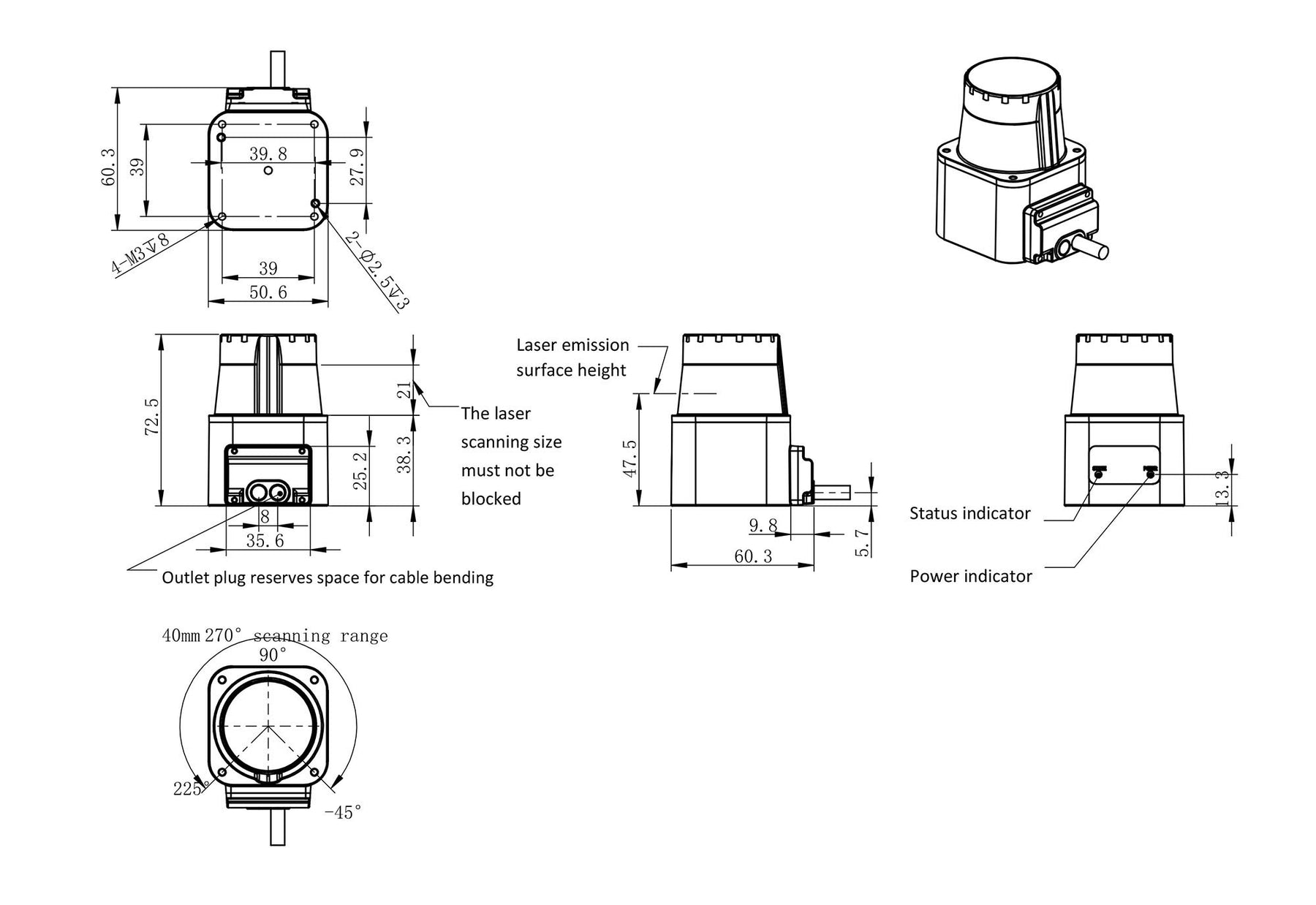

PHYSICAL SPECIFICATIONS
product height 72.5 mm
product length 50 mm
product weight 0.3 kg
product width 55 mm
