| KEY SPECIFICATIONS | |
|---|---|
| data rates | 20160 points/sec |
| horizontal FOV | 360° |
| horizontal resolution | 0.25° |
| laser wavelength | 940nm |
| number of channels | 1 |
| operating range | 0.05 - 25m (8m@10% Reflectivity) |
| ranging accuracy | ±10mm (0.5-5m); ±30mm (Full Range) |
| ranging distance | 0.05 - 25m (8m@10%) |
| scanning frequency | 14Hz |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | 3.7W |
| INTERFACE SPECIFICATIONS | |
|---|---|
| communication interface | Ethernet and IO |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| electromagnetic compatibility | GB/T 17626.2-2018 |
| IP rating | IP65 |
| laser safety | Class I (eye safety) |
| temperature operational | -20°C to +60°C |
| temperature storage | -30℃ - 70℃ |
| vibration resistance standard | GB/T 2423.10-2019 |

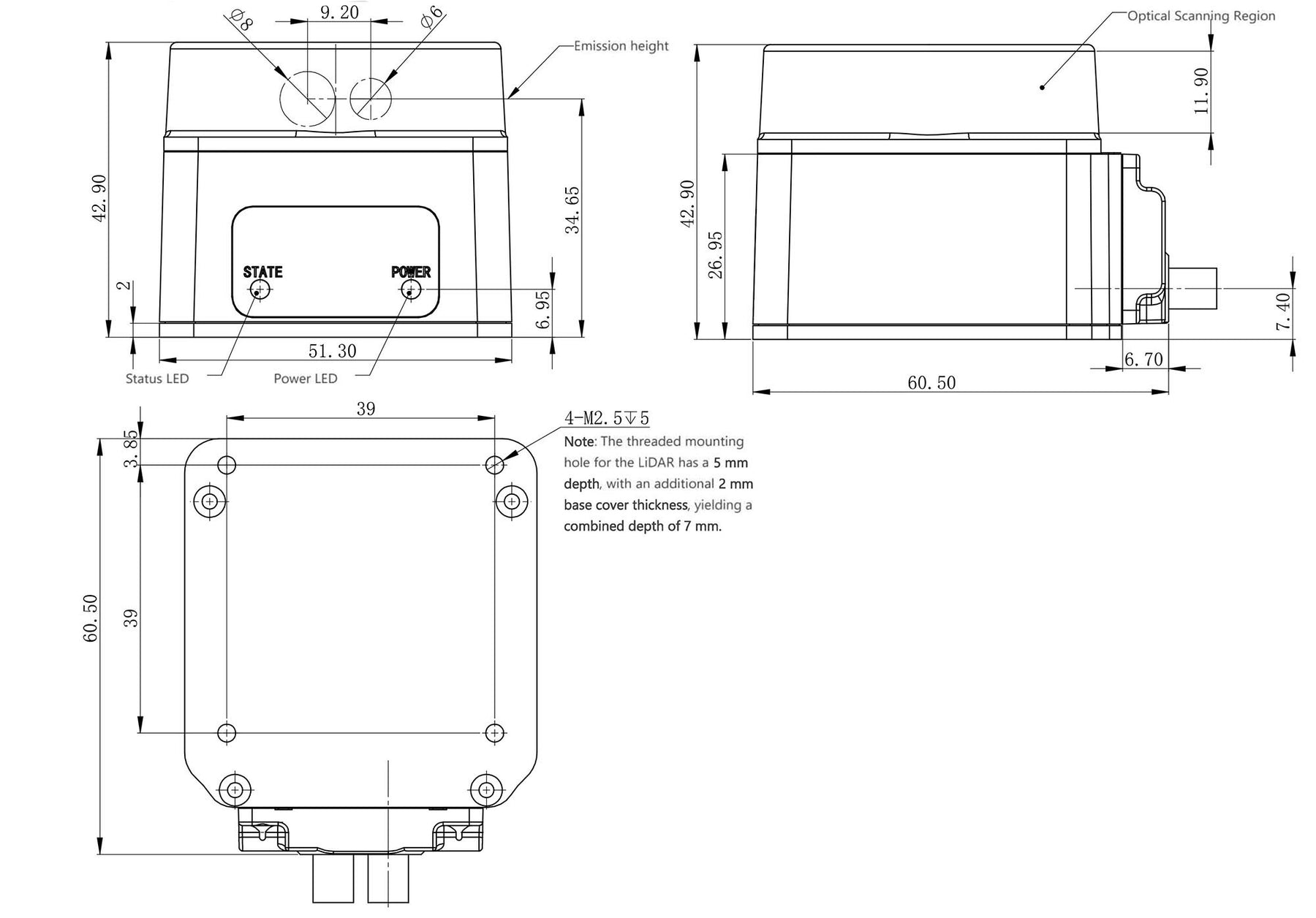

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 42.9 mm |
| product length | 58.3 mm |
| product weight | 0.14 kg |
| product width | 51.3 mm |
