COM045KU-KVC

MarineLink 0.45 m Ku-Band Maritime Antenna DVB-S2 CCM

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Ku-Band
Product Revision A
ANTENNA SPECIFICATIONS
acceleration Azimuth: 800 °/sec² Elevation: 1000 °/sec²
ACU size 19" Rack 1U size
angle display resolution 0.1 degrees
angle display range elevation 0° to +115°
angle display range elevation azimuth Unlimited
antenna aperture 0.45 m
antenna drive mode Auto Tracking
antenna input power 28VDC
auto acquisition Yes
auto acquistion time 5 minutes Max.
azimuth range Unlimited
azimuth speed 10º/sec
cross angle Tilt : ±20º
cross polarization isolation 35dB
dish diameter 0.45 M
elevation range 0° to +115°
elevation speed 10º/sec
encoder accuracy AZ 0.01º
encoder accuracy EL 0.01º
feed configuration Ring focus
operating platform 4-Axis
polarization Linear
polarization range ±90º
polarization speed 5º/sec
preset satellite 80 satellites
standard BUC options Built in 25 W
standard LNB options Universal 2LO PLL LNB
RF SPECIFICATIONS
G/T 10.18 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky
LNB reference type Internal
Rx frequency 10.7 - 12.75 GHz
Tx frequency 13.75 - 14.5 GHz
INTERFACE SPECIFICATIONS
dvb tuner DVB-S2 CCM
openbmip None
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% @ 40˚C
temperature operational -20°C to +55°C
temperature storage -40˚C - +70˚C
temperature survival -20°C to +55°C

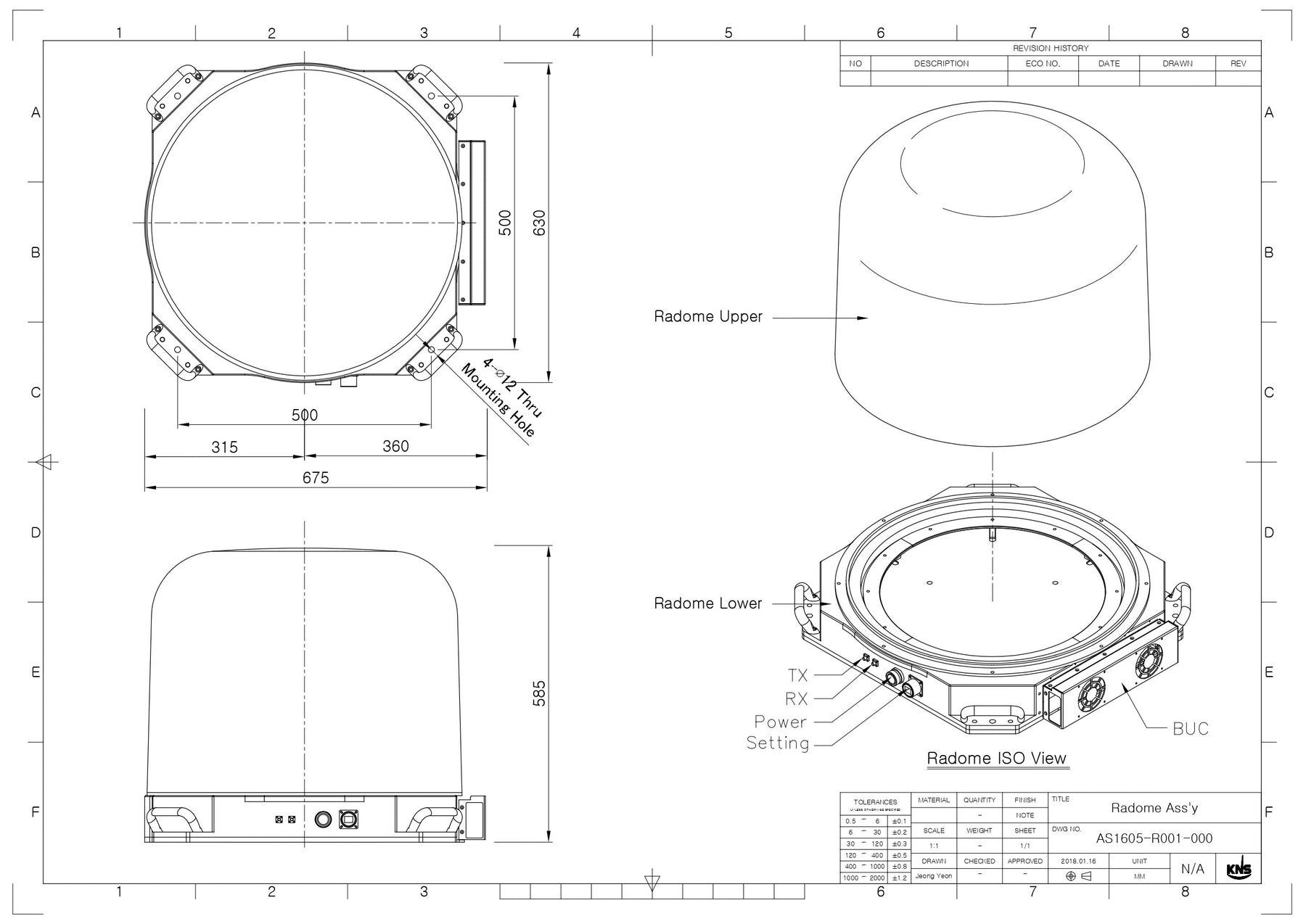

PHYSICAL SPECIFICATIONS
product dimensions height 585 mm
product dimensions length 680 mm
product dimensions width 630 mm
product weight 60 kg
