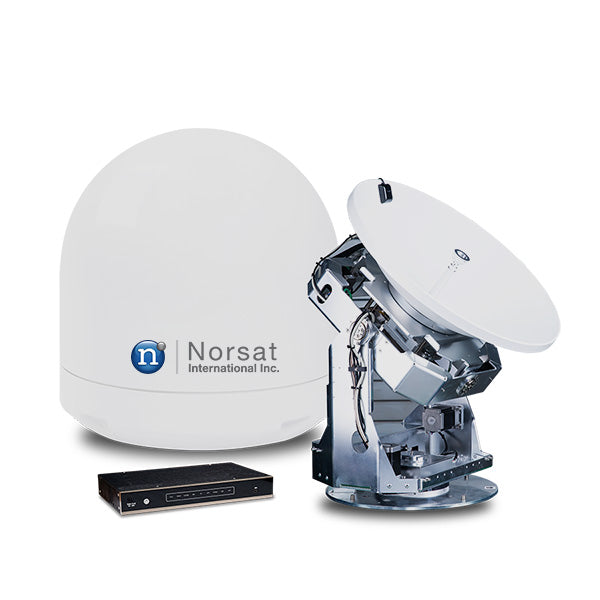

COM055KA-IVD
MarineLink 0.55m Ka-Band Maritime Antenna
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna category | Maritime |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| ACU size | 313*192*44 |
| angle display resolution | 0.1 degrees |
| angle display range elevation | -5° to +115° |
| angle display range elevation azimuth | 690° |
| angle display range tilt | ±20° |
| antenna aperture | 0.55 m |
| antenna drive mode | Auto Tracking |
| antenna input power | 30V DC, RX/TX port total 5.0A max |
| auto acquisition | Yes |
| auto acquistion time | 5 minutes Max. |
| axis ratio | 1.5dB typ(Ka) |
| azimuth range | 690° |
| azimuth speed | 10º/sec |
| cross angle | Tilt : ±20º |
| cross polarization isolation | 25dB |
| dish diameter | 0.55 M |
| elevation range | -5° to +115° |
| elevation speed | 10º/sec |
| external I/O | Mini-USB, Console, Ethernet, Wi-fi |
| feed configuration | Ring focus |
| gyro interface | NMEA 0183 |
| motion range AZ | ±8° at 15-20 sec periods |
| motion range EL | ±10° at 6-12 sec periods |
| motion range POL | ±20° at 8-12 sec periods |
| operating platform | 4-Axis |
| polarization | Cicular |
| preset satellite | 80 satellites |
| ship motion pitch | ±10° at 6-12 sec periods |
| ship motion roll | ±20° at 8-12 sec periods |
| ship motion yaw | ±8° at 15-20 sec periods |
| skew control | Automatic |
| standard BUC options | 6 W |
| standard LNB options | Universal LNB |
| RF SPECIFICATIONS | |
|---|---|
| G/T | 15.63 dB/K (in Radome) @ 30deg. Elevation angle and 19.7 GHz, Clear Sky |
| LNB reference type | Internal |
| Rx frequency | 19.2 - 20.2 GHz |
| Tx frequency | 29.0 - 30.0 GHz |
| INTERFACE SPECIFICATIONS | |
|---|---|
| dvb tuner | DVB-S2X |
| openbmip | None |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Up to 100% @ 40°C |
| temperature operational | -20°C to +55°C |
| temperature survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product dimensions height | 800 mm |
| product dimensions length | 760 mm |
| product dimensions width | 760 mm |
| product weight | 46 kg |
