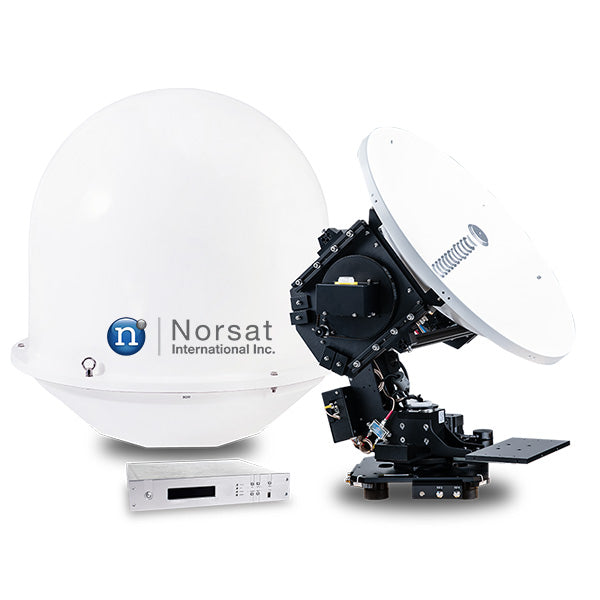

MarineLink 0.61m Ku-Band Maritime Antenna DVB-S2 CCM
MarineLink 0.61m Ku-Band Maritime Antenna DVB-S2 CCM
MarineLink 0.61m Ku-Band Maritime Antenna DVB-S2 CCM
MarineLink 0.61m Ku-Band Maritime Antenna DVB-S2 CCM

COM061KU-DTC

MarineLink 0.61m Ku-Band Maritime Antenna DVB-S2 CCM

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Ku-Band
Product Revision A
ANTENNA SPECIFICATIONS
ACU size a
angle display resolution 0.1 degrees
angle display range cross ±35°
angle display range elevation -10° to +90°
angle display range elevation azimuth 640°
antenna aperture 0.61 m
antenna drive mode Auto Tracking
antenna input power 24V DC, 4.17A
auto acquisition Yes
auto acquistion time 5 minutes Max.
azimuth range 640°
azimuth speed 10º/sec
cross angle ±35º
dish diameter 0.61 M
elevation range -10° to 90°
elevation speed 10º/sec
encoder accuracy AZ 0.01º
external I/O Mini-USB
feed configuration Ring focus
gyro interface NMEA 0183
motion range AZ ±8° at 15-20 sec periods
motion range EL ±10° at 6-12 sec periods
motion range POL ±20° at 8-12 sec periods
operating platform 3-Axis
polarization Linear
polarization range ±90º
polarization speed 5º/sec
preset satellite 80 satellites
ship motion pitch ±10° at 6-12 sec periods
ship motion roll ±20° at 8-12 sec periods
ship motion yaw ±8° at 15-20 sec periods
skew control Automatic
standard LNB options Quad / Quattro LNB
RF SPECIFICATIONS
G/T Minimum EIRP; 46dbW
LNB reference type Internal
INTERFACE SPECIFICATIONS
dvb tuner DVB-S2 CCM
openbmip None
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% @ 40°C
temperature operational -20°C to +55°C
temperature survival -20°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions height 840 mm
product dimensions length 850 mm
product dimensions width 850 mm
product weight 38 kg
