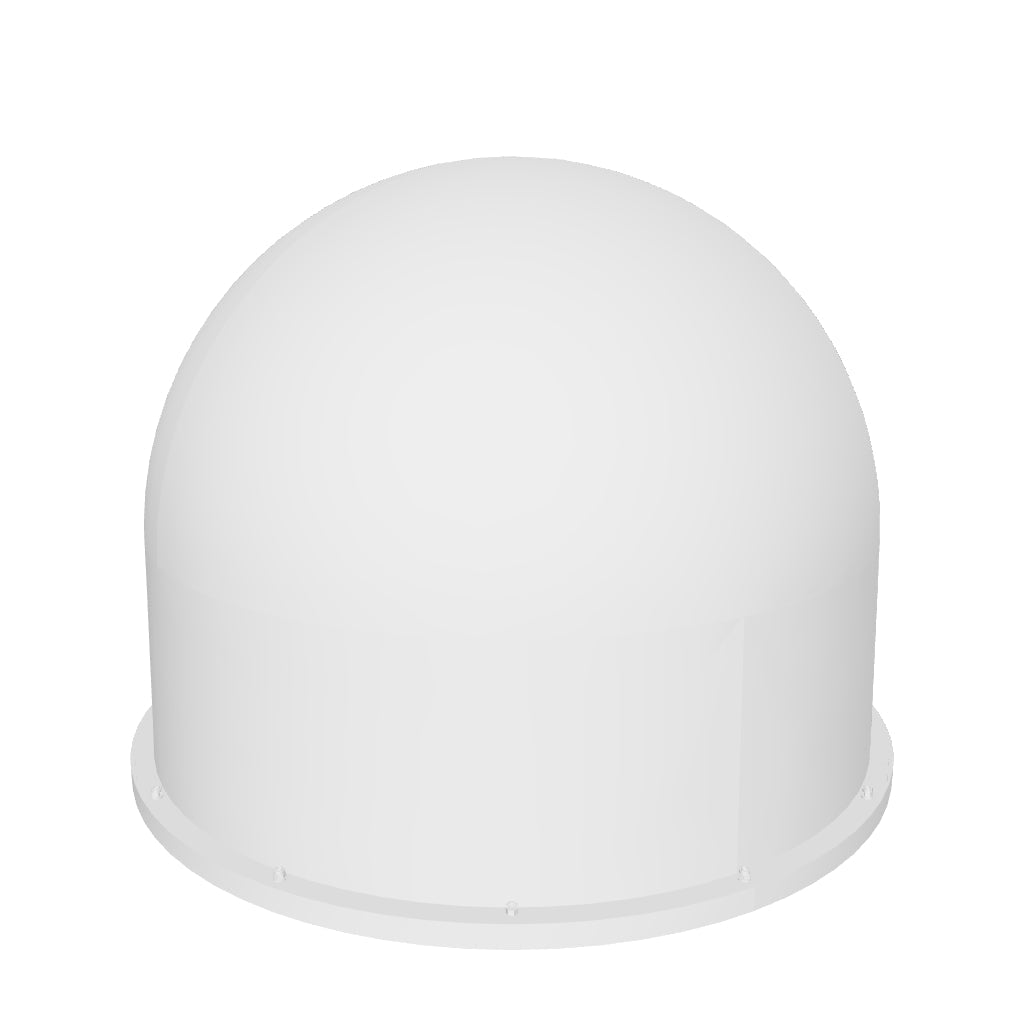

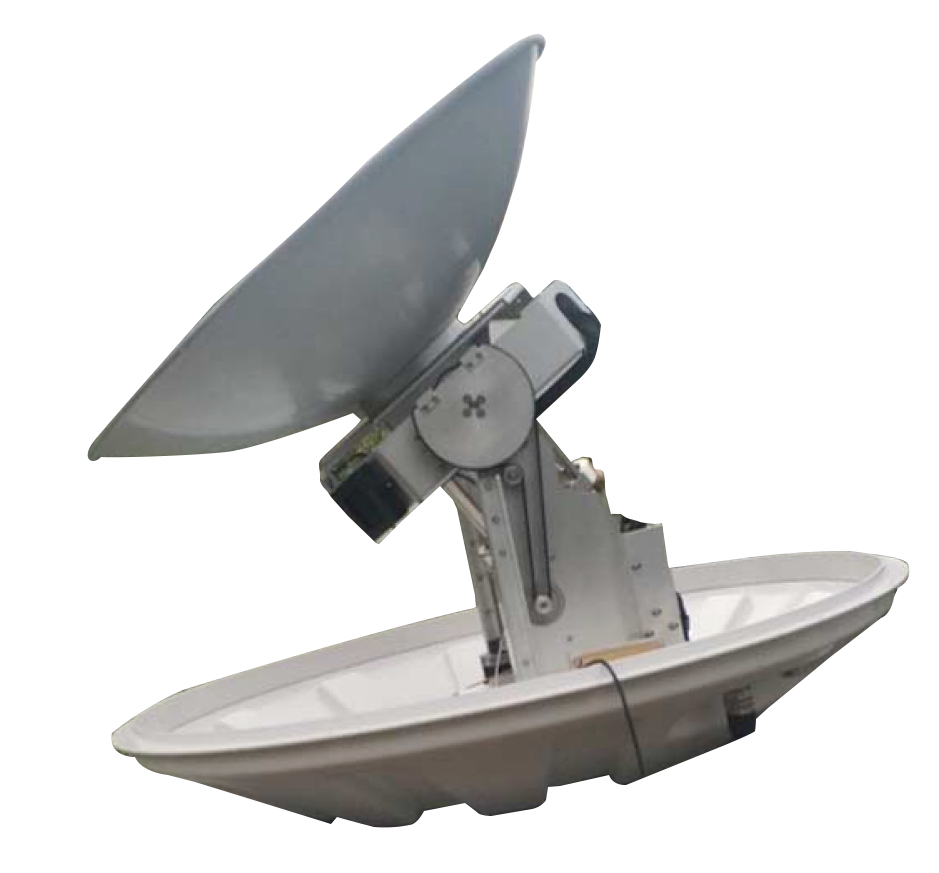

MarineLink 0.6m Ka-Band Maritime Antenna
MarineLink 0.6m Ka-Band Maritime Antenna
MarineLink 0.6m Ka-Band Maritime Antenna

COM060KAR

MarineLink 0.6m Ka-Band Maritime Antenna

Maritime Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Ka-Band
of onboard los Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna aperture 0.6m
antenna type Ring Focus
auto acquisition time ≤120s
azimuth acceleration 200°/s²
azimuth velocity 100°/s
blockage recovery time Blockage time＜60s, Recovery time＜3s; 15min ≥ blockage time ≥ 60s, Recovery time＜10s
elevation acceleration 200°/s²
elevation veolcity 100°/s
motion range AZ 690°
motion range EL -10° - +115°
motion range POL roll: -20° to +20°
polarization Circular
polarization acceleration roll: 200°/s²
polarization velocity roll: 100°/s
sidelobe First sidelobe ≤ -14 dB
RF SPECIFICATIONS
Rx frequency 19.70 - 20.20 GHz
rx gain 40.1dBi@19.95 GHz
ELECTRICAL SPECIFICATIONS
power supply 110 - 220V AC, typical power consumption 150W (excluding BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -25°C to +65°C
temperature storage -40°C to +85°C
PHYSICAL SPECIFICATIONS
default cable (included) Communication cables, Power supply cables, RF cables, Electrical power cables
default cable length 10m
product weight 42 kg (excluding BUC)
RMS ≤ 0.5 dB (R.M.S)
