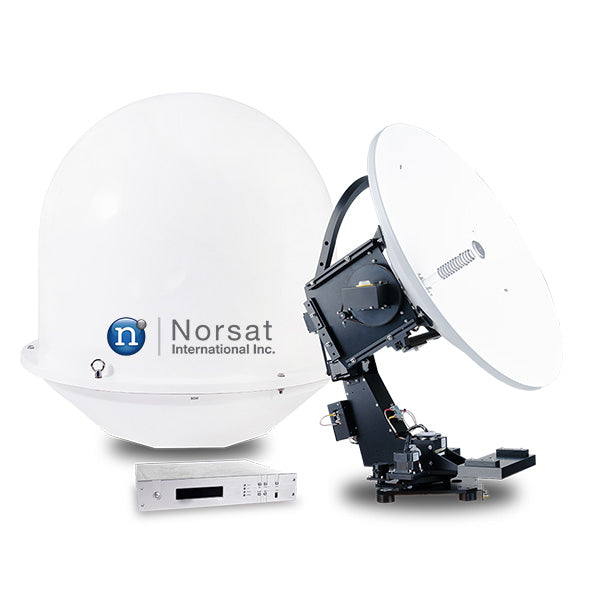

MarineLink 0.83m Ku-Band Maritime Antenna
MarineLink 0.83m Ku-Band Maritime Antenna
MarineLink 0.83m Ku-Band Maritime Antenna
MarineLink 0.83m Ku-Band Maritime Antenna

COM083KU-CTC

MarineLink 0.83m Ku-Band Maritime Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Ku-Band
Product Revision A
ANTENNA SPECIFICATIONS
ACU size 253*175*44
angle display resolution 0.1 degrees
angle display range cross ±35°
angle display range elevation -10° to +95°
angle display range elevation azimuth 640°
antenna aperture 0.83 m
antenna drive mode Auto Tracking
antenna input power 24V DC, 4.17A
auto acquisition Yes
auto acquistion time 5 minutes Max.
azimuth range 640°
azimuth speed 10º/sec
cross angle ±35º
dish diameter 0.83 M
elevation range -10° to 95°
elevation speed 10º/sec
encoder accuracy AZ 0.01º
external I/O Mini-USB
feed configuration Ring focus
gyro interface NMEA 0183
motion range AZ ±8˚ at 15-20 sec periods
motion range EL ±14˚ at 6-12 sec periods
motion range POL ±24˚ at 8-12 sec periods
operating platform 3-Axis
polarization Linear
polarization range ±90º
polarization speed 5º/sec
preset satellite 80 satellites
ship motion pitch ±14˚ at 6-12 sec periods
ship motion roll ±24˚ at 8-12 sec periods
ship motion yaw ±8˚ at 15-20 sec periods
skew control Automatic
standard LNB options Quad / Quattro LNB
RF SPECIFICATIONS
G/T Minimum EIRP; 44dbW
LNB reference type Internal
INTERFACE SPECIFICATIONS
dvb tuner DVB-S2 CCM
openbmip None
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% @ 40°C
temperature operational -20°C to +55°C
temperature survival -20°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions height 1170 mm
product dimensions length 1130 mm
product dimensions width 1130 mm
product weight 64 kg
