COM105KA-BVD

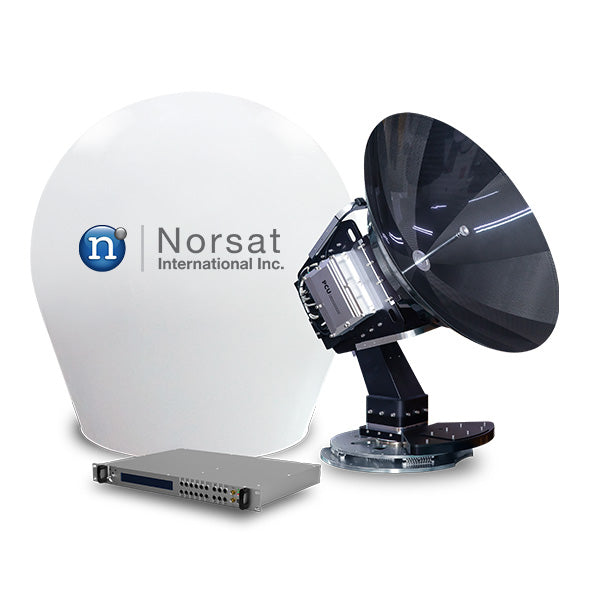

MarineLink 1.05 m Ka-Band Maritime Antenna
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna category | Maritime |
| band | Ka-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| ACU size | 19" Rack 1U size |
| angle display resolution | 0.1 degrees |
| angle display range cross | ±35° |
| angle display range elevation | -10° to +110° |
| angle display range elevation azimuth | Unlimited |
| antenna aperture | 1.05 m |
| antenna drive mode | Auto Tracking |
| antenna input power | 28V DC |
| auto acquisition | Yes |
| auto acquistion time | 5 minutes Max. |
| axis ratio | 1.5dB typ |
| azimuth range | Unlimited |
| azimuth speed | 10º/sec |
| cross angle | ±35º |
| cross polarization isolation | 25dB |
| dish diameter | 1.0 M |
| elevation range | -10° to +110° |
| elevation speed | 10º/sec |
| encoder accuracy AZ | 0.01º |
| encoder accuracy EL | 0.01º |
| external I/O | GYRO, Ethernet, Console, EMCON |
| feed configuration | Ring focus |
| gyro interface | NMEA 0183, Synchro, Step by Step |
| motion range AZ | ±8˚ at 15-20 sec periods |
| motion range EL | ±14˚ at 6-12 sec periods |
| motion range POL | ±24˚ at 8-12 sec periods |
| operating platform | 3-Axis |
| polarization | Circular |
| preset satellite | 80 satellites |
| ship motion pitch | ±14˚ at 6-12 sec periods |
| ship motion roll | ±24˚ at 8-12 sec periods |
| ship motion yaw | ±8˚ at 15-20 sec periods |
| skew control | Automatic |
| standard BUC options | Ka band: Optional |
| standard LNB options | Ka band : Single LNB |
| RF SPECIFICATIONS | |
|---|---|
| G/T | Ku-band: 19.27 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky; Ka-band: 20.47 dB/K (in Radome) @ 30deg. Elevation angle and 19.75 GHz, Clear Sky |
| LNB reference type | Internal |
| Rx frequency | 19.2 - 20.2 GHz |
| Tx frequency | 29.0 - 30.0 GHz |
| INTERFACE SPECIFICATIONS | |
|---|---|
| dvb tuner | DVB-S2X |
| openbmip | Yes |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Up to 100% @ 40°C |
| temperature operational | -20°C to +55°C |
| temperature survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product dimensions height | 152.5 mm |
| product dimensions length | 1450 mm |
| product dimensions width | 1450 mm |
| product weight | 184 kg |
