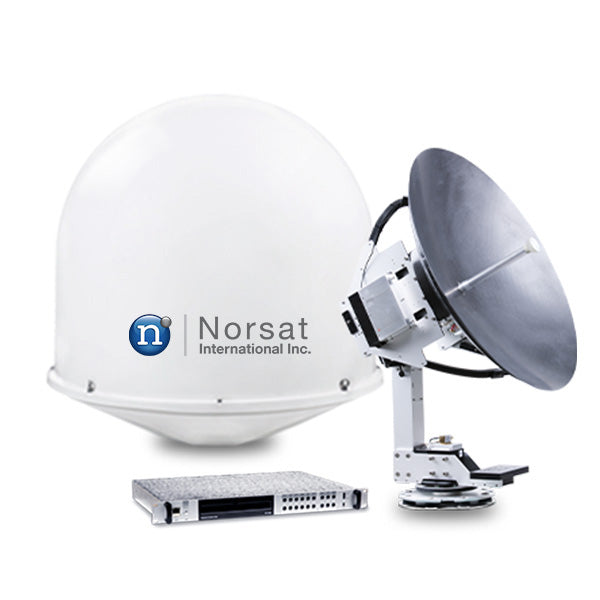

MarineLink 1.0m Dual-Band Maritime Antenna
MarineLink 1.0m Dual-Band Maritime Antenna
MarineLink 1.0m Dual-Band Maritime Antenna
MarineLink 1.0m Dual-Band Maritime Antenna

COM105D-HVD

MarineLink 1.0m Dual-Band Maritime Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Dual-Band
Product Revision A
ANTENNA SPECIFICATIONS
ACU size 19" Rack 1U size
angle display resolution 0.1 degrees
angle display range cross ±35°
angle display range elevation -20° to +110°
angle display range elevation azimuth Unlimited
antenna aperture 1.05 m
antenna drive mode Auto Tracking
antenna input power 48V DC, 11.4A
auto acquisition Yes
auto acquistion time 5 minutes Max.
axis ratio 1.5dB typ(Ka)
azimuth range Unlimited
azimuth speed 10º/sec
cross angle ±35º
cross polarization isolation 35dB(Ku); 25dB(Ka)
dish diameter 1.0 M
elevation range -20° to +110°
elevation speed 10º/sec
encoder accuracy AZ 0.01º
external I/O Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422
feed configuration Ring focus
gyro interface NMEA 0183, Synchro, Step by Step
motion range AZ ±8˚ at 15-20 sec periods
motion range EL ±14˚ at 6-12 sec periods
motion range POL ±24˚ at 8-12 sec periods
operating platform 3-Axis
polarization Ku band : Linear; Ka band : Circular
polarization range ±90º(Ku)
polarization speed 5º/sec(Ku)
preset satellite 80 satellites
ship motion pitch ±14˚ at 6-12 sec periods
ship motion roll ±24˚ at 8-12 sec periods
ship motion yaw ±8˚ at 15-20 sec periods
skew control Automatic
standard BUC options Ku band: 8 W; Ka band: 6 W
standard LNB options Ku band : Universal LNB; Ka band : Single LNB
RF SPECIFICATIONS
G/T Ku-band: 17.71 dB/K (in Radome) @ 30deg. Elevation angle and 11.85 GHz, Clear Sky; Ka-band: 18.35 dB/K (in Radome) @ 30deg. Elevation angle and 19.95 GHz, Clear Sky
LNB reference type Internal
Rx frequency 19.20 - 20.20 GHz
Tx frequency  29.00 - 30.00 GHz
INTERFACE SPECIFICATIONS
dvb tuner DVB-S2X
openbmip Yes
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% @ 40°C
temperature operational -20°C to +55°C
temperature survival -20°C to +55°C
PHYSICAL SPECIFICATIONS
product dimensions height 1520 mm
product dimensions length 1440 mm
product dimensions width 1440 mm
product weight 120 kg
