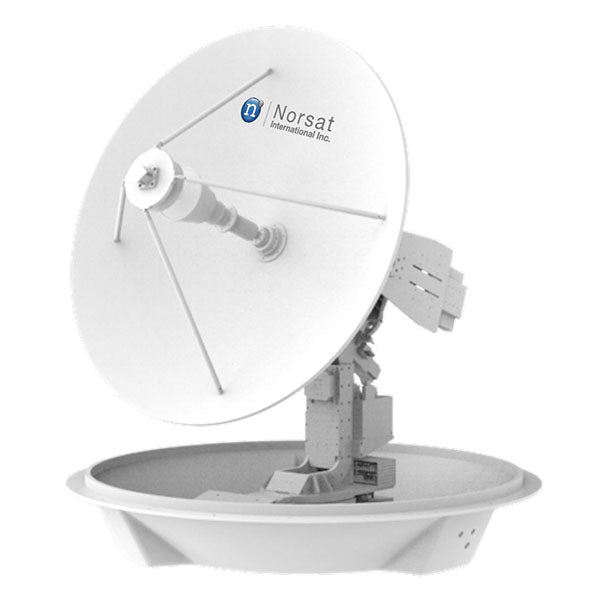

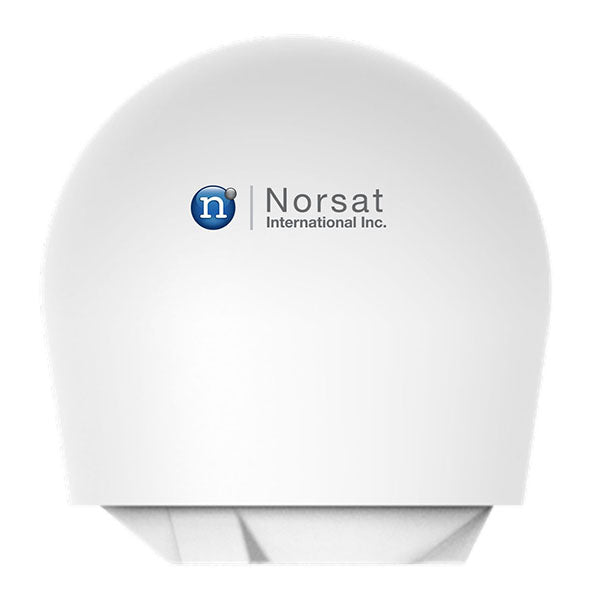

MarineLink 1.2m Low Ku-Band Maritime Antenna
MarineLink 1.2m Low Ku-Band Maritime Antenna
MarineLink 1.2m Low Ku-Band Maritime Antenna
MarineLink 1.2m Low Ku-Band Maritime Antenna

COM120KUL

MarineLink 1.2m Low Ku-Band Maritime Antenna

Maritime Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna category Maritime
band Ku-Band
of onboard los Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna aperture 1.2 m
antenna type Ring Focus
auto acquisition time ≤ 3min
azimuth acceleration 200°/s²
azimuth velocity ≤ 60°/s
blockage recovery time ≤ 5s (Blockage 20min)
cross polarization isolation 35 dB
elevation acceleration 200°/s²
elevation veolcity ≤ 60°/s
motion range AZ 360° continuous
motion range EL -15° - 125°
motion range POL ± 90°
polarization Linear
polarization acceleration ≤ 40°/s
polarization velocity ≤ 40°/s
sidelobe AZ: ≤ -14dB (first side lobe)
RF SPECIFICATIONS
port isolation Rx-Tx 85 dB
port isolation Tx-Rx 85 dB
power capacity 100 W
Rx frequency 10.70 - 11.70 GHz
rx gain 41.5+20lg(f/11.2) dBi
Rx interface N-50K
Rx VSWR 1.5
Tx frequency 12.75 - 13.25 GHz
tx gain 42.7+20lg(f/13.0) dBi
Tx interface WR75
Tx VSWR 1.5
ELECTRICAL SPECIFICATIONS
power consumption ≤400W (excluding BUC)
power supply 220 VAC, 50 Hz
INTERFACE SPECIFICATIONS
positioning mode GPS+BD
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
IP rating IP65
temperature operational -40°C to +55°C
windspeed operational 21m/s
windspeed survival 35m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Communication cables, Power supply cables, RF cables, Electrical power cables
default cable length 10m
product weight ≤ 150 kg (excluding BUC, LNB, case, packaging and accessories etc)
RMS ≤ 0.5 dB (R.M.S)
