100W Ku-Band GaN BUC
100W Ku-Band GaN BUC
100W Ku-Band GaN BUC
100W Ku-Band GaN BUC

BUC-100267

100W Ku-Band GaN BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz -5 to +5 dBm
frequency sense Non-Inverting
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 100W
reference type External Reference
Product Revision B
RF SPECIFICATIONS
attenuator range 20 dB in 1 dB steps
gain flatness (40MHz) ±0.6 dB
gain flatness (500MHz) ±1.5 dB
input VSWR 2 : 1
noise power density 70 dBW/4kHz @ Tx Band
output power P1dB >49 dBm
output power Psat +50 dBm min.
output VSWR 1.25 : 1 max
phase noise 0.1kHz offset max -63 dBc/Hz
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -93 dBc/Hz
small signal gain >70 dB min.
ELECTRICAL SPECIFICATIONS
input power 4-Pin: 220 VAC (90 - 264 VAC), 600W @ P1dB
INTERFACE SPECIFICATIONS
IF connector N-Connector
m and c 19-Pin, RS-485 or Ethernet
output connector WR-75 Grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% Condensing (Relative)
IP rating IP65
temperature operational -40°C to +60°C

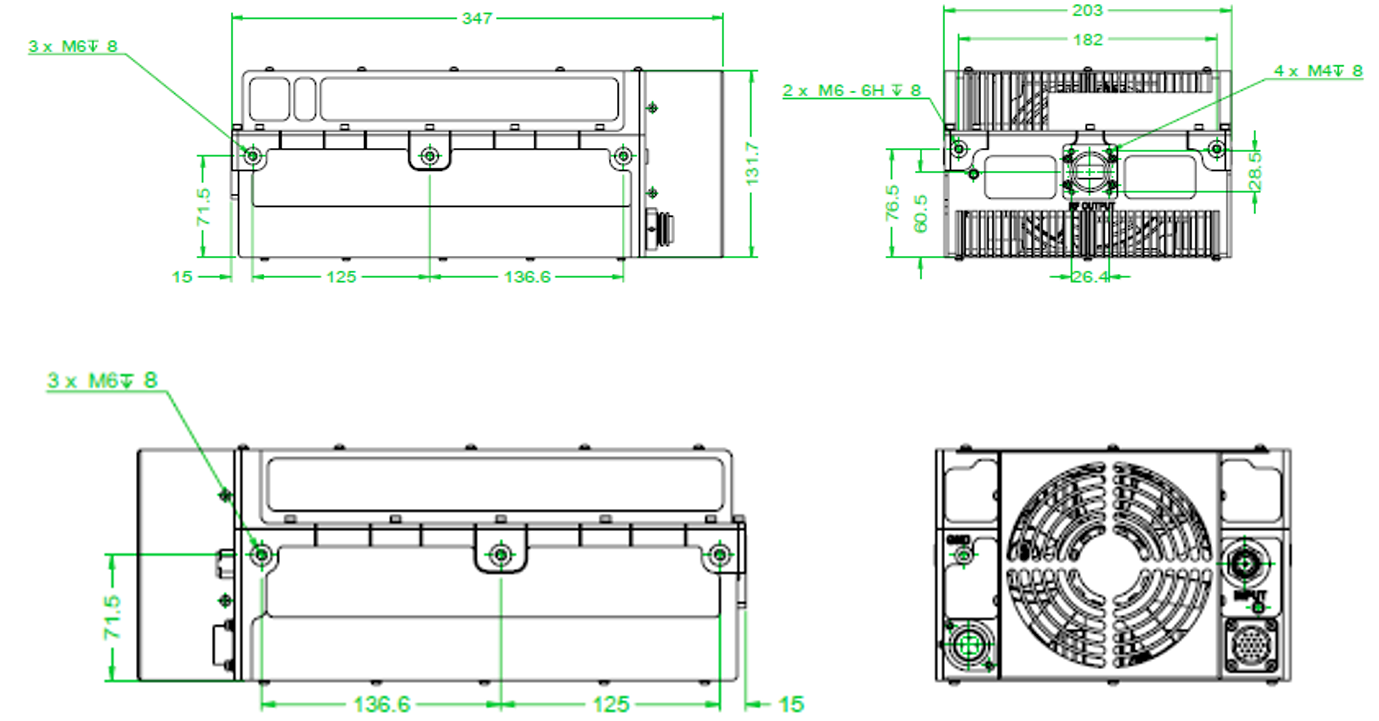

PHYSICAL SPECIFICATIONS
product height 131.7 mm
product length 347 mm
product weight 10.5 kg
product width 203 mm
