MEDIAN 200W X-Band GaN BUC (AC + INT Ref Standard Stability)
MEDIAN 200W X-Band GaN BUC (AC + INT Ref Standard Stability)
MEDIAN 200W X-Band GaN BUC (AC + INT Ref Standard Stability)
MEDIAN 200W X-Band GaN BUC (AC + INT Ref Standard Stability)

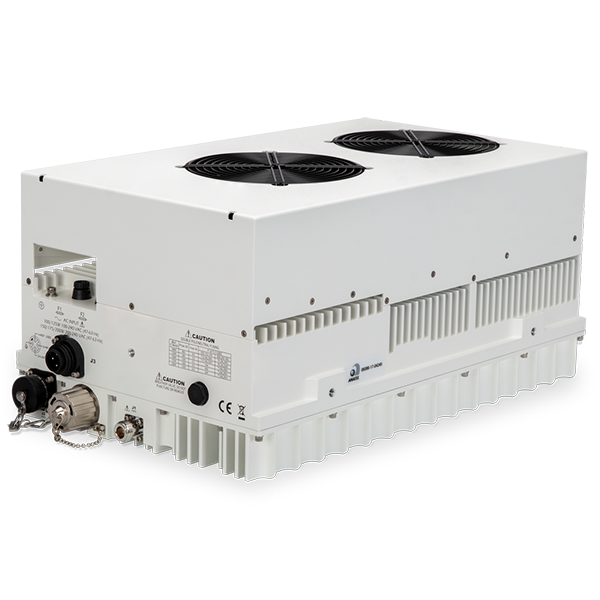

MDX200ANIG-XN-S

MEDIAN 200W X-Band GaN BUC (AC + INT Ref Standard Stability)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



The Standard Version MEDIAN BUCs offer higher gain to reduce the need for line amplifiers in long cable runs (IFL). In contrast, the WGS-Compatible Versions have lower gain to allow operation with IF signals driven up to 0 dBm.

Cyber-Hardened Intelligent BUCs are designed to enhance satellite ground terminal security for industries requiring optimized and flexible protection. These BUCs implement effective security management controls—including encrypted authentication, privacy, and access control—to ensure end-to-end message transmission. They help protect against session hijacking, password attacks, and eavesdropping.

KEY SPECIFICATIONS
band X-Band
frequency sense Non-Inverting
input frequency band 1 950 - 1450 MHz
number of onboard LOs Single-Band
output frequency band 1 7.900 - 8.400 GHz
output power rated 200W
reference type Internal Standard Stability
Product Revision A
RF SPECIFICATIONS
19dB min for NPR +47 dBm
AM-PM conversion < 3.0 deg/dB @PLin
attenuator range 30 dB variable in 0.1 dB steps
gain flatness (1MHz) 0.25 dB p-p max
gain flatness (36MHz) 1 dB p-p max
gain flatness (over full band) 3 dB p-p max
gain variation over temperature (open loop) 3 dB p-p max
gain variation over temperature (witg AGC) 1 dB p-p max
gain version Std Options and Std Specs
harmonics -60 dBc max.
input impedance 50 Ohm
input power detector range -55 to -20 dBm
input VSWR 1.5 : 1
Level Stability with ALC ± 0.5 dB
output noise power density Rx < -73 dBm/Hz (without Rx reject filter); < -163 dBm/Hz (with optional Rx reject filter)
output noise power density Tx < -73 dBm/Hz
output Plin +50 dBm
output Psat +53 dBm
output spurious in band -65 dBc
output spurious out of band Complies with MIL-STD 188-164C
output VSWR 1.3 : 1 max
phase noise 0.01kHz offset max -55 dBc/Hz
phase noise 0.1kHz offset max -80 dBc/Hz
phase noise 1kHz offset max -90 dBc/Hz
phase noise 10kHz offset max -95 dBc/Hz
phase noise 100kHz offset max -100 dBc/Hz
phase noise 1000kHz offset max -110 dBc/Hz
small signal gain 84 dB min
ELECTRICAL SPECIFICATIONS
current consumption Plin 800 VA
current consumption Psat 1000 VA
output power detector range Rated power to -20 dB
power reading accuracy ± 1.0 dB max.
power requirements 100 to 240 VAC
power supply AC Powered
INTERFACE SPECIFICATIONS
IF connector N
M and C option Standard M&C
output interface CPR-112G
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 ft (3,000 m) ASL
humidity 100% Condensing
temperature operational -40°C To +55°C
PHYSICAL SPECIFICATIONS
product height case 1 193 mm
product length case 1 411 mm
product weight 14.9 kg
product width case 1 254 mm
