MEDIBKU040E

MEDIAN 40W Ku-Band BUC - DEMO

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Maximum total coverage is 5 years.



Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series constraints are not as stringent.

KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz
input frequency band 1 950 – 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 40W
Product Revision 1.0
RF SPECIFICATIONS
gain variation over temperature (open loop) +/- 1.5 dB
input power via IFL
input VSWR 1.5 : 1
output power Psat 46 dBm min.
output VSWR 1.25 : 1
phase noise 10kHz max –83 dBc/Hz
phase noise 1kHz max –73 dBc/Hz
reference power level -5 dBm to +5dBm
ELECTRICAL SPECIFICATIONS
input voltage +36 to +72V, 48 VDC nominal, 48 VDC over IFL optional
M&C connector PT02E-14-19P (MS3112)
M&C interface RS-232 / RS-485 / Ethernet
power consumption 300W at rated power, 270W at 3 dB back-off from rated
power requirements +36 to +72V
INTERFACE SPECIFICATIONS
input connector Type-N, female
output connector WR75-G (grooved)
ENVIRONMENTAL SPECIFICATIONS
ingress protection IP65
temperature operational -30°C to +55°C

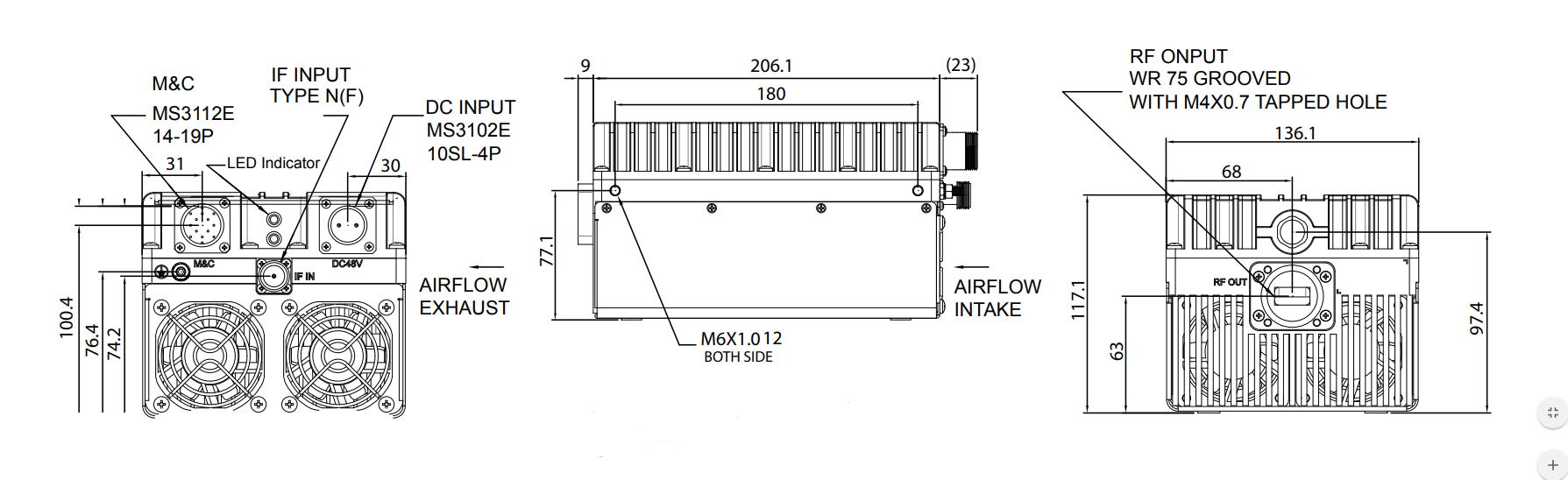

PHYSICAL SPECIFICATIONS
led indicators Red, Yellow
product height 117 mm
product length 206 mm
product weight 4.5 kg
product width 136 mm
