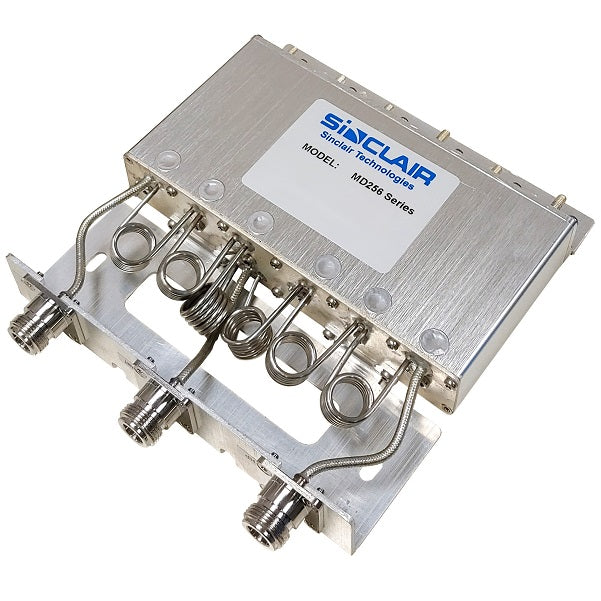

Name: Mobile duplexer, 6 cavity, 136-174 MHz
Brand: Norsat International Inc.
SKU: MD256N-1-1
Price: 1320.00 USD
Availability: InStock

MD256N-1-1

Mobile duplexer, 6 cavity, 136-174 MHz

MD256 SERIES

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51718195609967,"title":"136 - 148MHz \/ 4.5 to 5.5MHz","option1":"136 - 148MHz","option2":"4.5 to 5.5MHz","option3":null,"sku":"MD256N-1-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 136 - 148MHz \/ 4.5 to 5.5MHz","public_title":"136 - 148MHz \/ 4.5 to 5.5MHz","options":["136 - 148MHz","4.5 to 5.5MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195642735,"title":"136 - 148MHz \/ 8 to 10MHz","option1":"136 - 148MHz","option2":"8 to 10MHz","option3":null,"sku":"MD256N-1-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 136 - 148MHz \/ 8 to 10MHz","public_title":"136 - 148MHz \/ 8 to 10MHz","options":["136 - 148MHz","8 to 10MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195675503,"title":"148 - 160MHz \/ 4.5 to 5.5MHz","option1":"148 - 160MHz","option2":"4.5 to 5.5MHz","option3":null,"sku":"MD256N-2-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 148 - 160MHz \/ 4.5 to 5.5MHz","public_title":"148 - 160MHz \/ 4.5 to 5.5MHz","options":["148 - 160MHz","4.5 to 5.5MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195708271,"title":"148 - 160MHz \/ 8 to 10MHz","option1":"148 - 160MHz","option2":"8 to 10MHz","option3":null,"sku":"MD256N-2-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 148 - 160MHz \/ 8 to 10MHz","public_title":"148 - 160MHz \/ 8 to 10MHz","options":["148 - 160MHz","8 to 10MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195741039,"title":"160 - 174MHz \/ 4.5 to 5.5MHz","option1":"160 - 174MHz","option2":"4.5 to 5.5MHz","option3":null,"sku":"MD256N-3-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 160 - 174MHz \/ 4.5 to 5.5MHz","public_title":"160 - 174MHz \/ 4.5 to 5.5MHz","options":["160 - 174MHz","4.5 to 5.5MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195773807,"title":"160 - 174MHz \/ 8 to 10MHz","option1":"160 - 174MHz","option2":"8 to 10MHz","option3":null,"sku":"MD256N-3-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 136-174 MHz - 160 - 174MHz \/ 8 to 10MHz","public_title":"160 - 174MHz \/ 8 to 10MHz","options":["160 - 174MHz","8 to 10MHz"],"price":132000,"weight":0,"compare_at_price":130500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

• Compact and rugged design, ideal for mobile applications
• Low insertion loss for optimal system performance
• High isolation to minimize interference
• Tx-Rx spacing: 4.5 to 5.2 MHz; 8 to 10 MHz

ELECTRICAL SPECIFICATIONS
average power input max (W)	50
band cat	132 - 150 MHz
connectors	N-Female
frequency range (MHz)	136 - 148
impedance (Ω)	50
insertion loss max tx to ant	1.5
isolation (min) (dB)	80
separation	4.5 - 5.5 MHz

ENVIRONMENTAL SPECIFICATIONS
temperature range (°C)	-30 to +60

PHYSICAL SPECIFICATIONS
depth (in)	7.03
diameter (in)	-
length/height (in)	1.25
mounting configurations	Mounting holes on unit
thickness (in)	7.03
weight (lbs)	2.2
width (in)	6.05

INFORMATION
HS Code	8517690000
Country of Origin	Made in China
Ex Works	Aurora, Ontario, Canada
ECCN Number	EAR99
Warranty	2 years
Dangerous Goods	-
Unit Package Dimensions	13 in x 9 in x 3 in
Unit Package Weight	2.7 lbs
Total Aluminium Content	0.9 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 2.25
