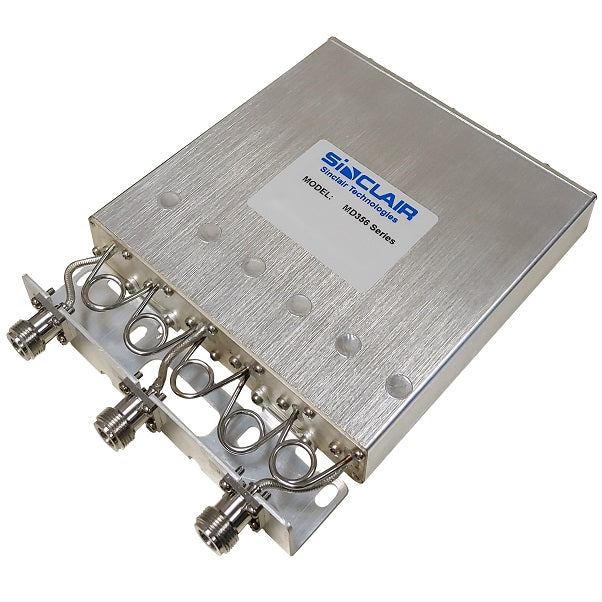

Name: Mobile duplexer, 6 cavity, 380-480 MHz
Brand: Norsat International Inc.
SKU: MD356N-1-1
Price: 1275.00 USD
Availability: InStock

MD356N-1-1

Mobile duplexer, 6 cavity, 380-480 MHz

MD356 SERIES

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":51718195806575,"title":"406 - 440 MHz \/ 5 MHz","option1":"406 - 440 MHz","option2":"5 MHz","option3":null,"sku":"MD356N-1-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 406 - 440 MHz \/ 5 MHz","public_title":"406 - 440 MHz \/ 5 MHz","options":["406 - 440 MHz","5 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195839343,"title":"406 - 440 MHz \/ 10 MHz","option1":"406 - 440 MHz","option2":"10 MHz","option3":null,"sku":"MD356N-1-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 406 - 440 MHz \/ 10 MHz","public_title":"406 - 440 MHz \/ 10 MHz","options":["406 - 440 MHz","10 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195872111,"title":"440 - 480 MHz \/ 5 MHz","option1":"440 - 480 MHz","option2":"5 MHz","option3":null,"sku":"MD356N-2-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 440 - 480 MHz \/ 5 MHz","public_title":"440 - 480 MHz \/ 5 MHz","options":["440 - 480 MHz","5 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195904879,"title":"440 - 480 MHz \/ 10 MHz","option1":"440 - 480 MHz","option2":"10 MHz","option3":null,"sku":"MD356N-2-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 440 - 480 MHz \/ 10 MHz","public_title":"440 - 480 MHz \/ 10 MHz","options":["440 - 480 MHz","10 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195937647,"title":"380 - 400 MHz \/ 5 MHz","option1":"380 - 400 MHz","option2":"5 MHz","option3":null,"sku":"MD356N-4-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 380 - 400 MHz \/ 5 MHz","public_title":"380 - 400 MHz \/ 5 MHz","options":["380 - 400 MHz","5 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718195970415,"title":"380 - 400 MHz \/ 10 MHz","option1":"380 - 400 MHz","option2":"10 MHz","option3":null,"sku":"MD356N-4-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile duplexer, 6 cavity, 380-480 MHz - 380 - 400 MHz \/ 10 MHz","public_title":"380 - 400 MHz \/ 10 MHz","options":["380 - 400 MHz","10 MHz"],"price":127500,"weight":0,"compare_at_price":127500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

• Compact and rugged design, ideal for mobile applications
• Low insertion loss for optimal system performance
• High isolation to minimize interference

ELECTRICAL SPECIFICATIONS
average power input max (W)	50
band cat	300 - 406 MHz, 406 - 512 MHz
connectors	N-Female
frequency range (MHz)	406 - 440
insertion loss max (dB)	1.4
isolation (min) (dB)	75
separation	5 MHz

ENVIRONMENTAL SPECIFICATIONS
temperature range (°C)	-30 to +60

PHYSICAL SPECIFICATIONS
depth (in)	8.92
diameter (in)	-
length/height (in)	1.13
mounting configurations	Mounting holes on unit
thickness (in)	8.92
weight (lbs)	2.7
width (in)	6.05

INFORMATION
HS Code	8517690000
Country of Origin	Made in China
Ex Works	Aurora, Ontario, Canada
ECCN Number	EAR99
Warranty	2 years
Unit Package Dimensions	13 in x 9 in x 3 in
Unit Package Weight	3.1 lbs
Total Aluminium Content	0.9 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 2.25
