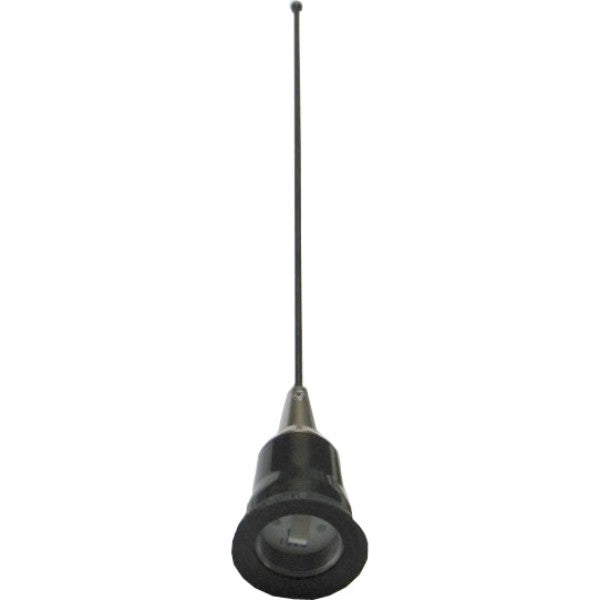

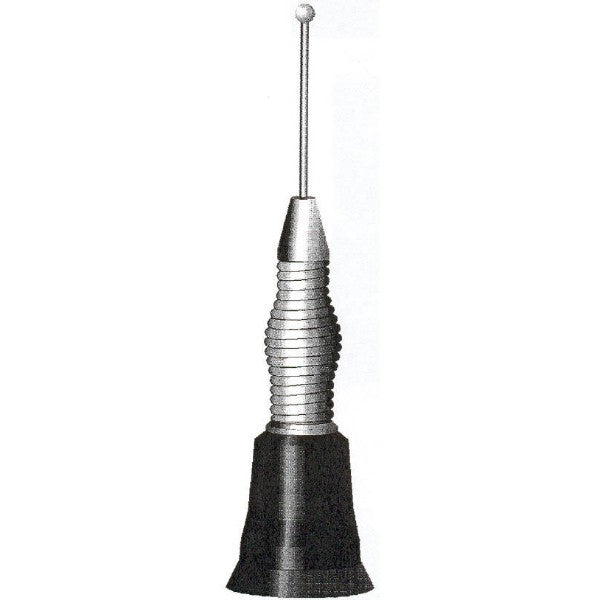

Name: Mobile omni, 3 dBd, 5/8 wave, 138-174 MHz
Brand: Norsat International Inc.
SKU: SVB-1383
Price: 120.00 USD
Availability: InStock

Mobile omni, 3 dBd, 5/8 wave, 138-174 MHz

SVB-1383

Mobile omni, 3 dBd, 5/8 wave, 138-174 MHz

Low Band, Aviation, and VHF Antennas

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":51718197641583,"title":"Chrome \/ None","option1":"Chrome","option2":"None","option3":null,"sku":"SVB-1383","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni, 3 dBd, 5\/8 wave, 138-174 MHz - Chrome \/ None","public_title":"Chrome \/ None","options":["Chrome","None"],"price":12000,"weight":0,"compare_at_price":12000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718197674351,"title":"Chrome \/ Steel spring","option1":"Chrome","option2":"Steel spring","option3":null,"sku":"SVB-1383S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni, 3 dBd, 5\/8 wave, 138-174 MHz - Chrome \/ Steel spring","public_title":"Chrome \/ Steel spring","options":["Chrome","Steel spring"],"price":15750,"weight":0,"compare_at_price":15750,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718197707119,"title":"Black \/ Steel spring","option1":"Black","option2":"Steel spring","option3":null,"sku":"SVB-1383SB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni, 3 dBd, 5\/8 wave, 138-174 MHz - Black \/ Steel spring","public_title":"Black \/ Steel spring","options":["Black","Steel spring"],"price":17250,"weight":0,"compare_at_price":17250,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

• Weather proof base with integral sealing gasket
• Stainless steel ferrule for corrosion resistance
• End fed 5/8 wave
• 3.5% bandwidth with 5 MHz typical bandwidth

ANTENNA SPECIFICATIONS
antenna type	whip
single port	Yes

ELECTRICAL SPECIFICATIONS
average power input max (W)	100
bandwidth (%)	3.5
bandwidth (MHz)	5
band cat	138 - 174 MHz
frequency range (MHz)	138 - 174
gain (dBd)	3
impedance (Ω)	50
pattern	Omni-directional
polarization	Vertical

ENVIRONMENTAL SPECIFICATIONS
temperature range (°C)	-40 to +60

PHYSICAL SPECIFICATIONS
diameter (in)	1.83
finish	Chrome
length/height (in)	58
mounting configurations	Upright
thickness (in)	-
weight (lbs)	0.75
width (in)	-

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517710000
Country of Origin	Made in China
Ex Works	Aurora, Ontario, Canada
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	0.75 lbs
