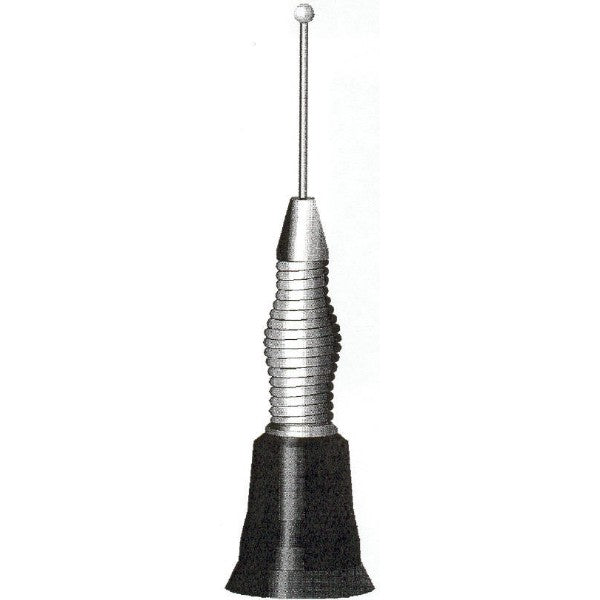

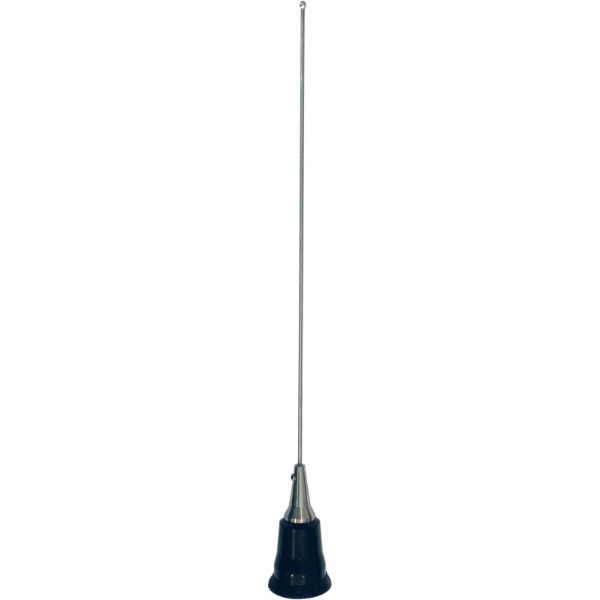

Mobile omni, 3 dBd, 5/8 wave, 430-470 MHz
Mobile omni, 3 dBd, 5/8 wave, 430-470 MHz

SUB-4303

Mobile omni, 3 dBd, 5/8 wave, 430-470 MHz

Regular price

Please sign in to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!



• Long-lasting, reliable service
• Do not require a ground plane and are ideal for installations on fiberglass vehicles (i.e. boats)
• Stainless Steel ferrule for corrosion resistance
• End fed 5/8 wave
ANTENNA SPECIFICATIONS
antenna type whip
single port Yes
ELECTRICAL SPECIFICATIONS
average power input max (W) 100
bandwidth (%) 3.5
bandwidth (MHz) 15
band cat 430 - 470 MHz
frequency range (MHz) 430 - 470
gain (dBd) 3
impedance (Ω) 50
pattern Omni-directional
polarization Vertical
ENVIRONMENTAL SPECIFICATIONS
temperature range (°C) -40 to +60
PHYSICAL SPECIFICATIONS
diameter (in) 1.83
finish Chrome
length/height (in) 15.5
mounting configurations Upright
thickness (in) -
weight (lbs) 0.5
width (in) -
