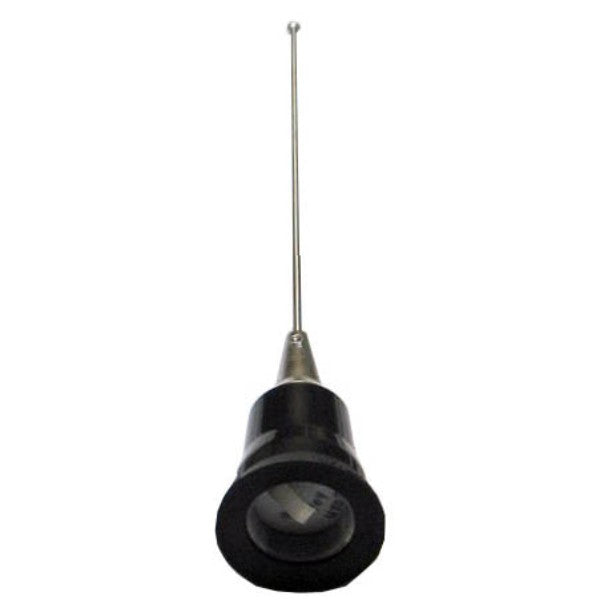

Name: Mobile omni antenna, 2 dBd, 406-430 MHz
Brand: Norsat International Inc.
SKU: SUB-4062
Price: 120.00 USD
Availability: InStock

SUB-4062

Mobile omni antenna, 2 dBd, 406-430 MHz

UHF and Tetra Antennas

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":51718196330863,"title":"Chrome \/ None","option1":"Chrome","option2":"None","option3":null,"sku":"SUB-4062","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni antenna, 2 dBd, 406-430 MHz - Chrome \/ None","public_title":"Chrome \/ None","options":["Chrome","None"],"price":12000,"weight":0,"compare_at_price":12000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718196363631,"title":"Chrome \/ Yes","option1":"Chrome","option2":"Yes","option3":null,"sku":"SUB-4062S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni antenna, 2 dBd, 406-430 MHz - Chrome \/ Yes","public_title":"Chrome \/ Yes","options":["Chrome","Yes"],"price":15750,"weight":0,"compare_at_price":15750,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51718196396399,"title":"Black \/ Yes","option1":"Black","option2":"Yes","option3":null,"sku":"SUB-4062SB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mobile omni antenna, 2 dBd, 406-430 MHz - Black \/ Yes","public_title":"Black \/ Yes","options":["Black","Yes"],"price":19500,"weight":0,"compare_at_price":19500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

• 5% Bandwidth (20 MHz typically)
• Rugged ABS housings are UV resistant
• Stainless steel fittings
• 17-7PH Stainless Steel Whip material

ANTENNA SPECIFICATIONS
antenna type	whip
single port	Yes

ELECTRICAL SPECIFICATIONS
average power input max (W)	100
bandwidth (MHz)	5
band cat	380 - 430 MHz
connectors	1 1/8-18 (TAD/TAE)
frequency range (MHz)	406 - 430
gain (dBd)	2
pattern	Omni-directional
polarization	Vertical

ENVIRONMENTAL SPECIFICATIONS
temperature range (°C)	-40 to +60

PHYSICAL SPECIFICATIONS
diameter (in)	1.83
finish	Chrome
length/height (in)	15
mounting configurations	Upright
thickness (in)	-
weight (lbs)	0.54
width (in)	-

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517710000
Country of Origin	Made in Canada
Ex Works	Aurora, Ontario, Canada
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	0.64 lbs
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
