RFOC01

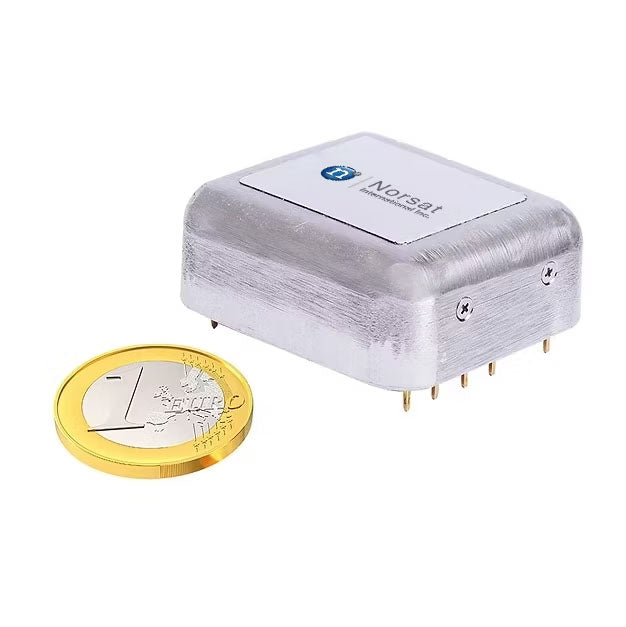

Nano Atomic Clock

Atomic Clock

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
allan deviation 1s <2E-10
digital tuning range ±2E-8
digital tuning resolution 2E-11
frequency stability <3E-10/month
holdover ±25 ns sync; <1μs/24h holdover
long term stability <3E-10/month
output frequency 1 10 MHz
output frequency 2 1PPS
short term stability <1E-11 @ 1000s ADEV
time accuracy <25 ns (1PPS Sync)
RF SPECIFICATIONS
phase noise 10khz <-143 dBc/Hz
phase noise 1hz <-50 dBc/Hz
phase noise floor <-150 dBc/Hz
ELECTRICAL SPECIFICATIONS
input voltage 3.3 VDC ±0.1
power consumption <350 mW
warm up time <130 sec
INTERFACE SPECIFICATIONS
output signal format CMOS, 3.3V @ 1MΩ
serial interface RS232, CMOS Compatible
ENVIRONMENTAL SPECIFICATIONS
humidity 0–95% RH (MIL-STD-810F, Method 507.4)
MTBF 250,000 Hours
operating temperature -40°C to +80°C
shock 30g, 11ms half-sine, 3 axis
storage temperature -55°C to +85°C
vibration MIL-STD-810G, 7.7 grms, Cat 24

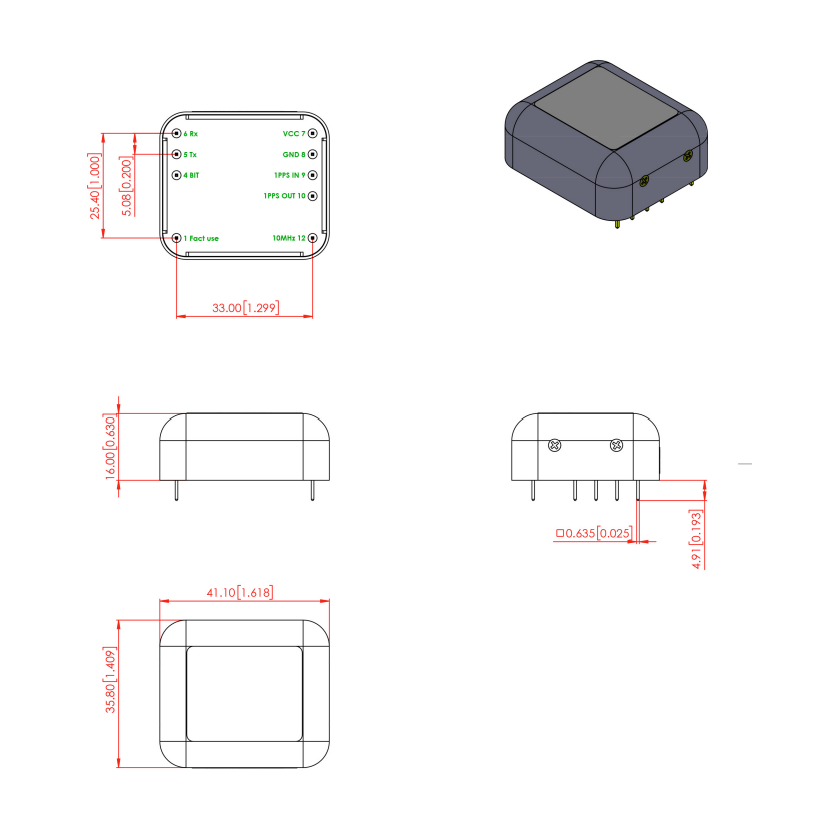

PHYSICAL SPECIFICATIONS
product height 16 mm
product length 41.1 mm
product weight 0.038 kg
product width 35.8 mm
