Name: Non-Inverted 10W Ka-Band O3B BUC - DEMO
Brand: Norsat International Inc.
SKU: 7010STC-O3B-A
Price: 5972.85 USD
Availability: InStock

7010STC-O3B-A

Non-Inverted 10W Ka-Band O3B BUC - DEMO

BUC Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 1 items in stock!

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":43070929764535,"title":"27.652 - 28.388 GHz \/ N - 75 Ohm","option1":"27.652 - 28.388 GHz","option2":"N - 75 Ohm","option3":null,"sku":"7010STC-O3B-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Non-Inverted 10W Ka-Band O3B BUC - DEMO - 27.652 - 28.388 GHz \/ N - 75 Ohm","public_title":"27.652 - 28.388 GHz \/ N - 75 Ohm","options":["27.652 - 28.388 GHz","N - 75 Ohm"],"price":597285,"weight":0,"compare_at_price":597285,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43070929830071,"title":"28.172 - 29.071 GHz \/ N - 75 Ohm","option1":"28.172 - 29.071 GHz","option2":"N - 75 Ohm","option3":null,"sku":"7010STC-O3B-B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Non-Inverted 10W Ka-Band O3B BUC - DEMO - 28.172 - 29.071 GHz \/ N - 75 Ohm","public_title":"28.172 - 29.071 GHz \/ N - 75 Ohm","options":["28.172 - 29.071 GHz","N - 75 Ohm"],"price":597285,"weight":0,"compare_at_price":597285,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
colour	White
External reference	10MHz,-5 to +5 dBm
input frequency band 1	1052-1788 MHz
LO frequency 1	26.60 GHz
output frequency band 1	27.652 - 28.388 GHz
output power rated	10W
Product Revision	1.0

RF SPECIFICATIONS
External reference	10MHz, -5 to +5 dBm
External reference noise	-145 dBc/Hz max. @1KHz
Frequency conversion	Double conversion
Gain control	65 dB max (15dB, 1dB step)
Gain stability	±1.5 dB in any 216MHz ±2.5 dB over full band
Gain stability over temp	±2.5 dB at any const. frequency
Group delay variation	±5.0 nanoseconds over any 216MHz
Input Return Loss	10dB max
Maximum linear output power	38 dBm min
Onput Return Loss	10dB max
Phase noise (SSB)	-73 dBc max. @ 1KHz -83 dBc max. @ 10KHz -93 dBc max. @ 100KHz
Saturate output power	40 dBm min. @ -40°C to 25°C 39 dBm min. @ up to 55°C
Spectral regrowth	25dBc max. @ 38dBm
Spurious	Signal related -60dBc max. @ 38dBm Signal independent -60dBm max 2IF+LO -60dBc max. @ 38dBm LO leakage -60dBm max

ELECTRICAL SPECIFICATIONS
Power consumption	170W max
Power requirement	+36 to +72V supplied through MS connector

INTERFACE SPECIFICATIONS
IF connector	N-Connector
Output interface	WR-28

M and C SPECIFICATIONS
M & C Interface	Ethernet or RS232 through MS3112e14-12P connector - Output power - Temperature - LO status - Output power mute - Gain control

ENVIRONMENTAL SPECIFICATIONS
Humidity	0 – 95%
Operating temp	-40°C to 55°C

PHYSICAL SPECIFICATIONS

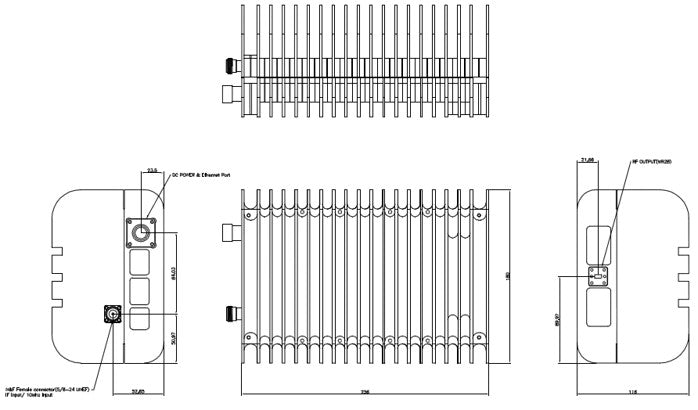

Dimensions	256 (L) x 180 (W) x 116 (H) mm
Weight	4.5 kg

Please contact us to request any additional documents you may need.

RF SPECIFICATIONS
conversion gain min	60
output P1dB	38 dBmW

ELECTRICAL SPECIFICATIONS
current consumption	22
power requirements	48

ENVIRONMENTAL SPECIFICATIONS
temperature operational	70 °C
temperature storage	-40 °C

INFORMATION
HS Code	-
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
