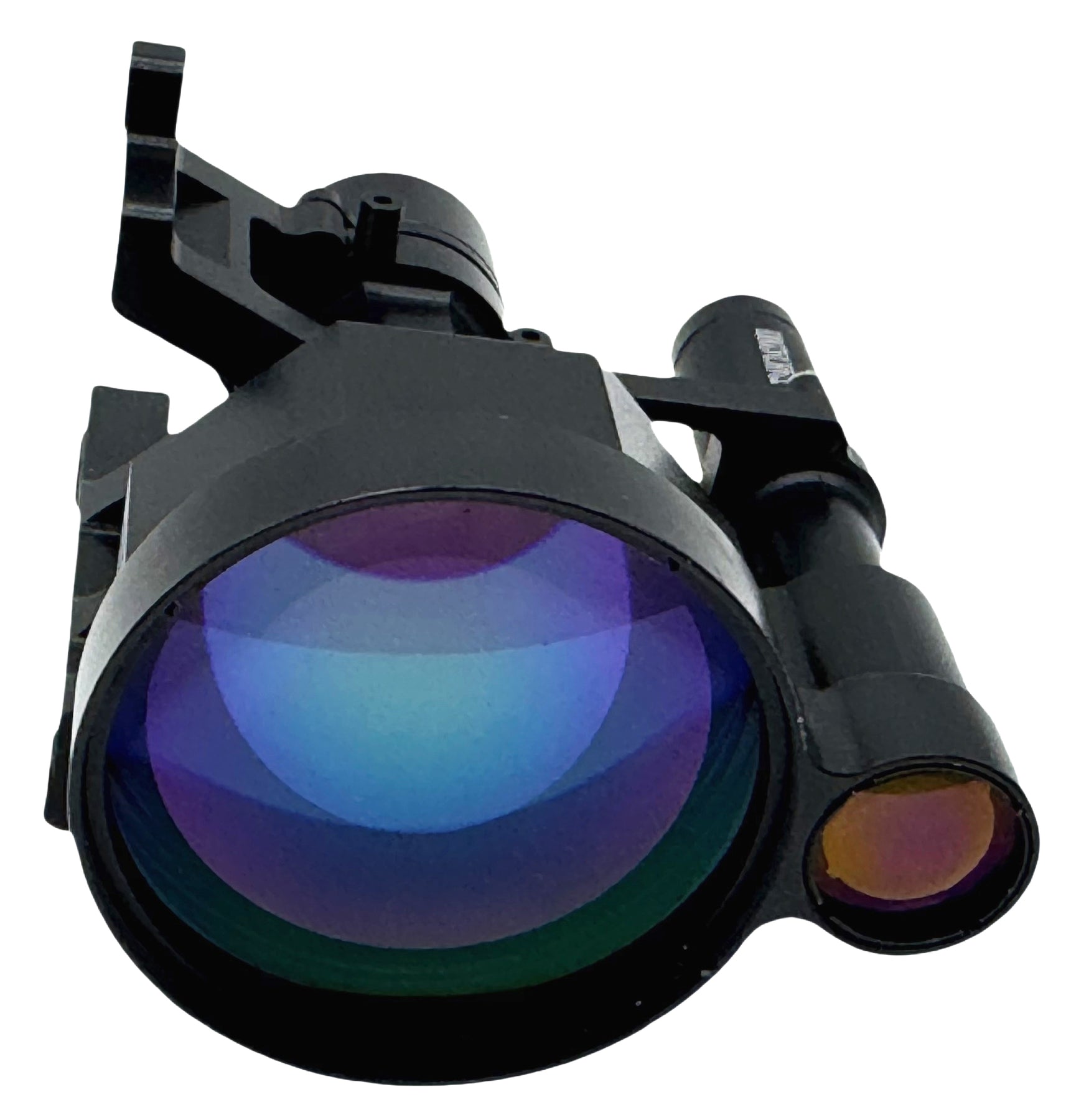

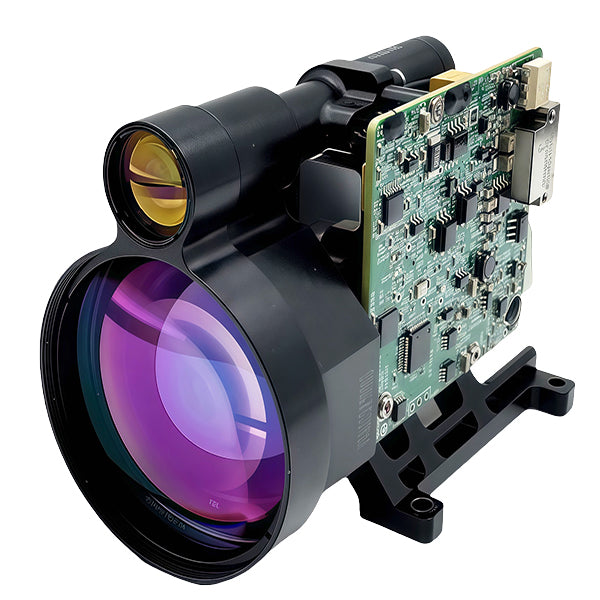

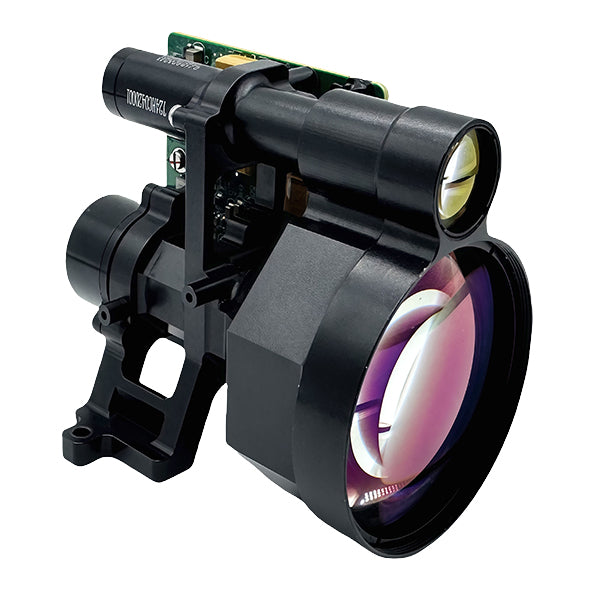

OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC
OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC
OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC
OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC
OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC

LRFB10500FC

OPTIVIA 1535 nm Laser Rangefinder LRFB10500FC

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 1535nm ± 10nm
laser rangefinder peak power 0.06 MW
laser rangefinder ranging range ≥50m - 10500m
ELECTRICAL SPECIFICATIONS
power consumption Standby≤1.8W; Avg≤4W
power supply DC 18 - 36V
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C

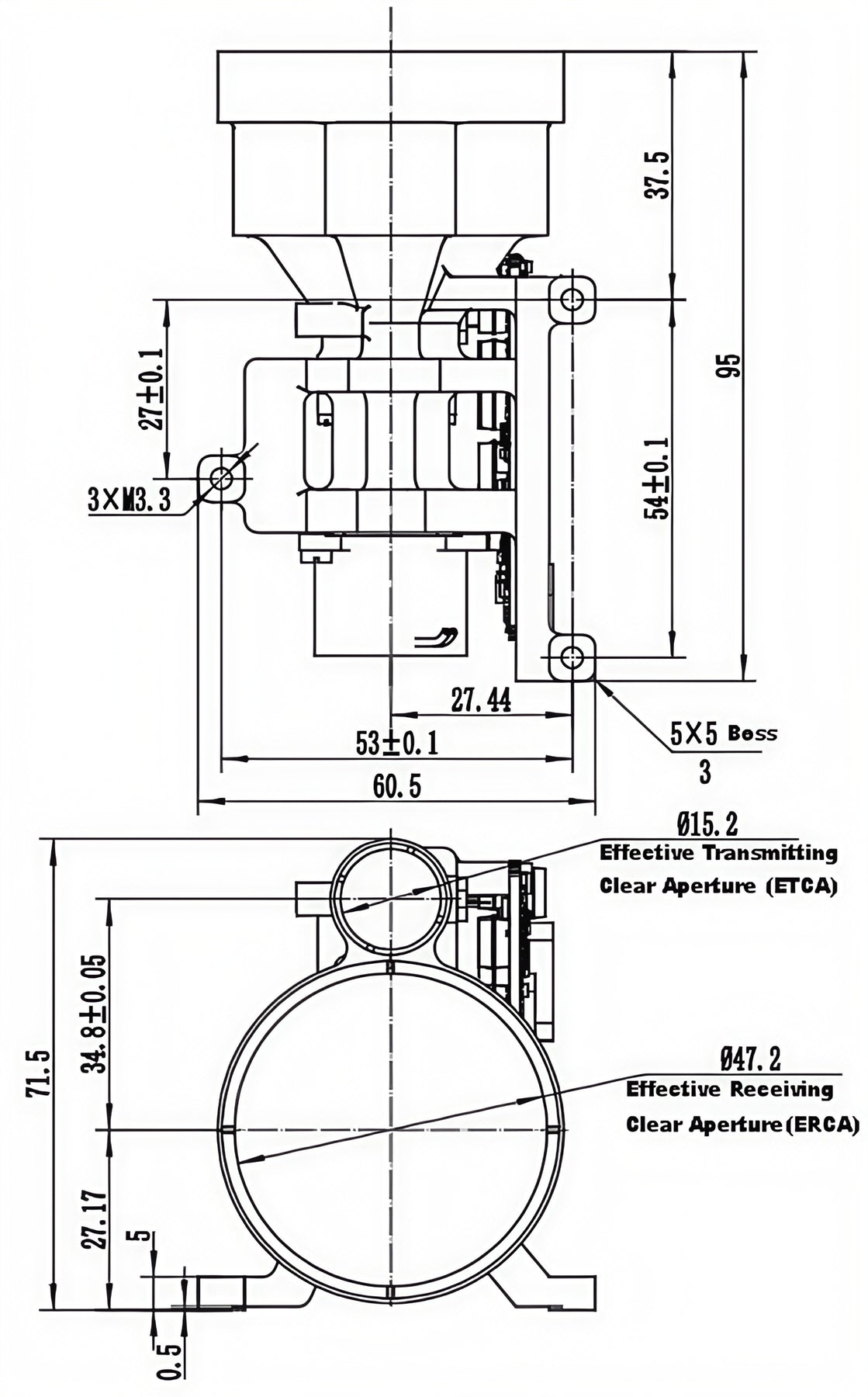

PHYSICAL SPECIFICATIONS
product height 71.5 mm
product length 95 mm
product weight ≤0.23 kg
product width 60.5 mm
volume ≤95 x 60.5 x 71.5 mm
