OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC
OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC
OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC

LRFB17500IC

OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 1535nm ± 10nm
laser rangefinder peak power 0.125 MW
laser rangefinder ranging range ≥120m - 17500m
ELECTRICAL SPECIFICATIONS
power consumption Standby≤2.5W; Avg≤6W
power supply DC 18 - 36V
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C

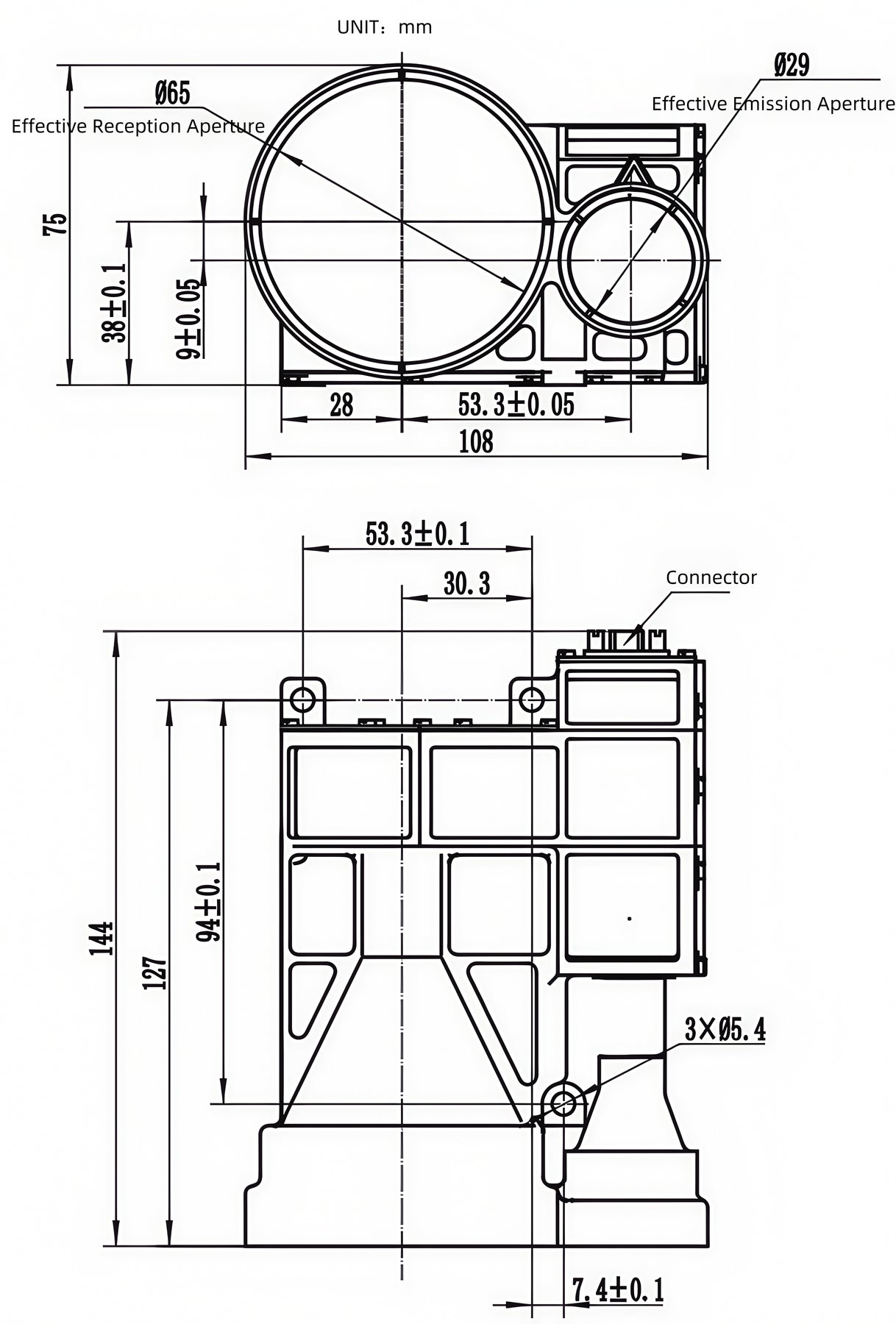

PHYSICAL SPECIFICATIONS
product height 75 mm
product length 144 mm
product weight ≤0.596 kg
product width 108 mm
volume ≤144 x108 x 75 mm
