| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±1m |
| laser rangefinder operating wavelength | 1535nm ± 10nm |
| laser rangefinder peak power | 0.04 MW |
| laser rangefinder ranging range | 15m - 2500m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby≤0.6W; Avg≤1.5W@1Hz; Peak≤7W@12V |
| power supply | DC 4.5 - 16V (typ 5V) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422/TTL (Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -55°C to +70°C |

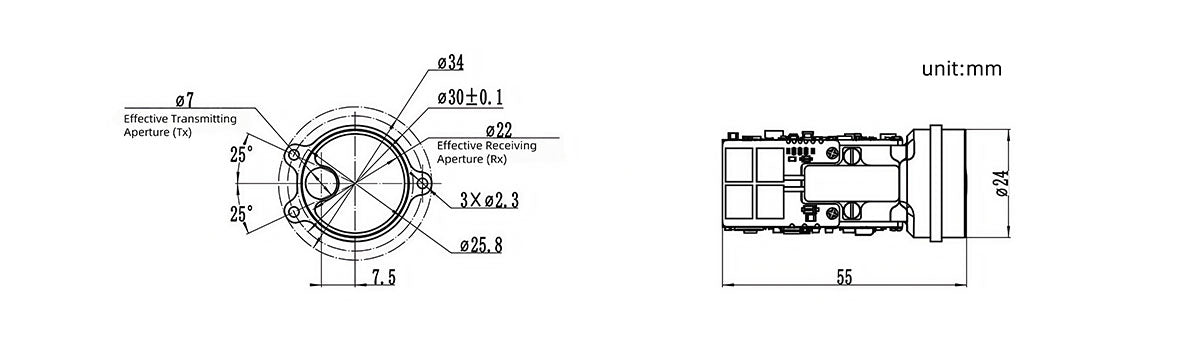

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 55 mm |
| product length | 34 mm |
| product weight | ≤0.045 kg |
| product width | 34 mm |
| volume | ≤34 x 34 x 55 mm |
