LRFB3000CD

OPTIVIA 1535 nm Laser Rangefinder LRFB3000CD

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 1535nm ± 10nm
laser rangefinder peak power 0.04 MW
laser rangefinder ranging range 15m - 3000m
ELECTRICAL SPECIFICATIONS
power consumption Standby≤0.6W; Avg≤1.5W@1Hz; Peak≤7W@12V
power supply DC 4.5 - 16V
INTERFACE SPECIFICATIONS
external interface communication interface TTL
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +70°C
temperature storage -55°C to +70°C

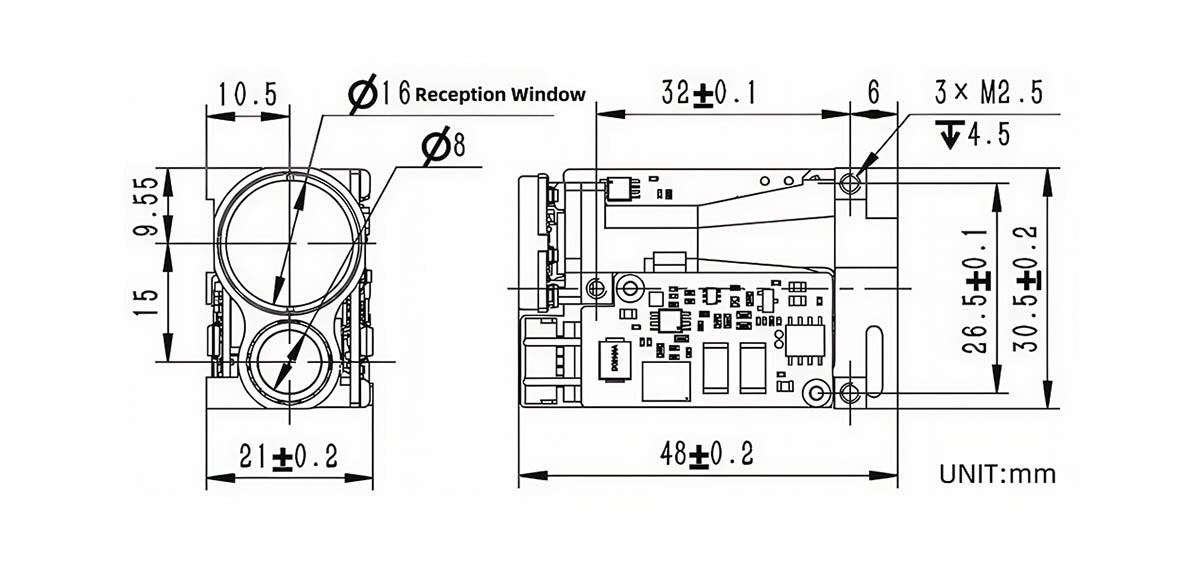

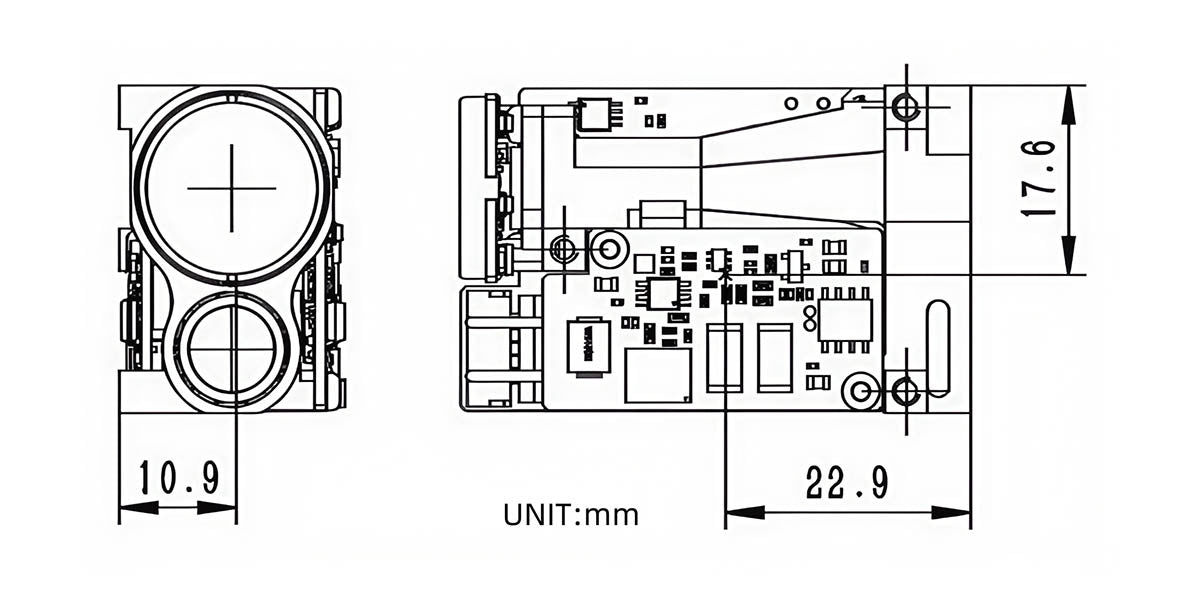

PHYSICAL SPECIFICATIONS
product height 21 mm
product length 48 mm
product weight ≤0.032 kg
product width 30.5 mm
volume ≤48 x 30.5 x 21 mm
