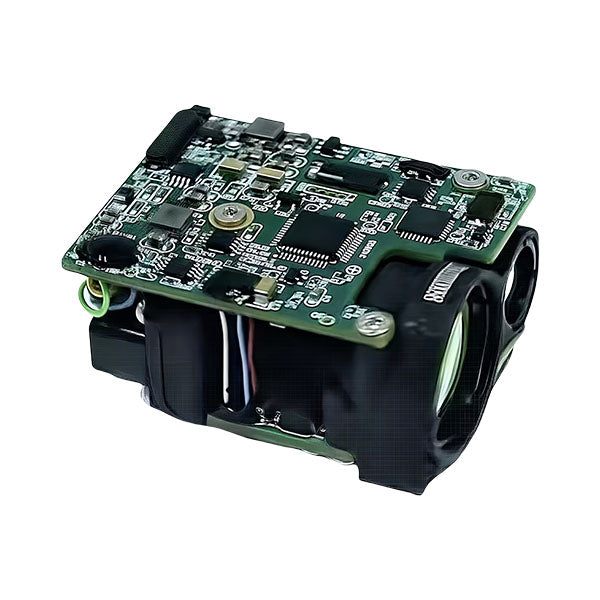

OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC
OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC
OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC
OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC
OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC

LRFB3200CC

OPTIVIA 1535 nm Laser Rangefinder LRFB3200CC

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 1535nm ± 10nm
laser rangefinder peak power 0.04 MW
laser rangefinder ranging range 15m - 3200m
ELECTRICAL SPECIFICATIONS
power consumption Standby≤0.5W; Avg≤2W
power supply DC 4.8 - 8.5V
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C

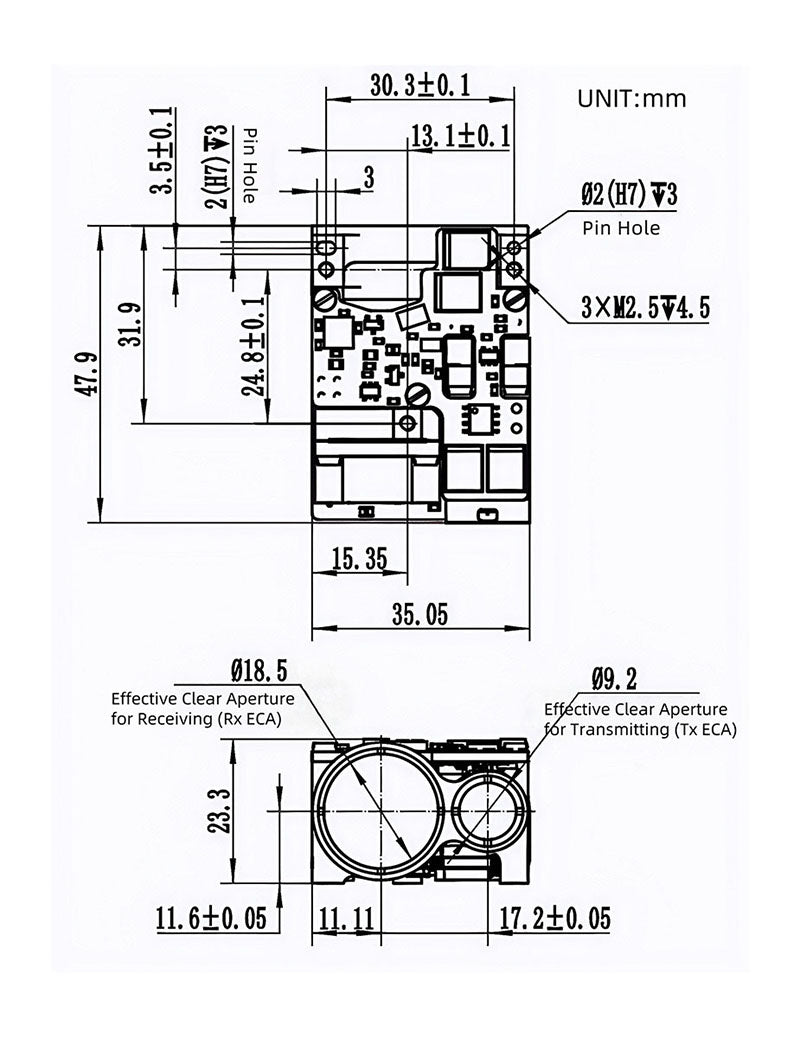

PHYSICAL SPECIFICATIONS
product height 24 mm
product length 50 mm
product weight ≤0.058 kg
product width 36.5 mm
volume ≤50 x 36.5 x 24 mm
