| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±1m |
| laser rangefinder operating wavelength | 1535nm ± 10nm |
| laser rangefinder ranging range | 20m - 5000m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg≤2W; Peak≤5W |
| power supply | DC 10 - 14V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 / TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +70°C |
| temperature storage | -55°C to +75°C |

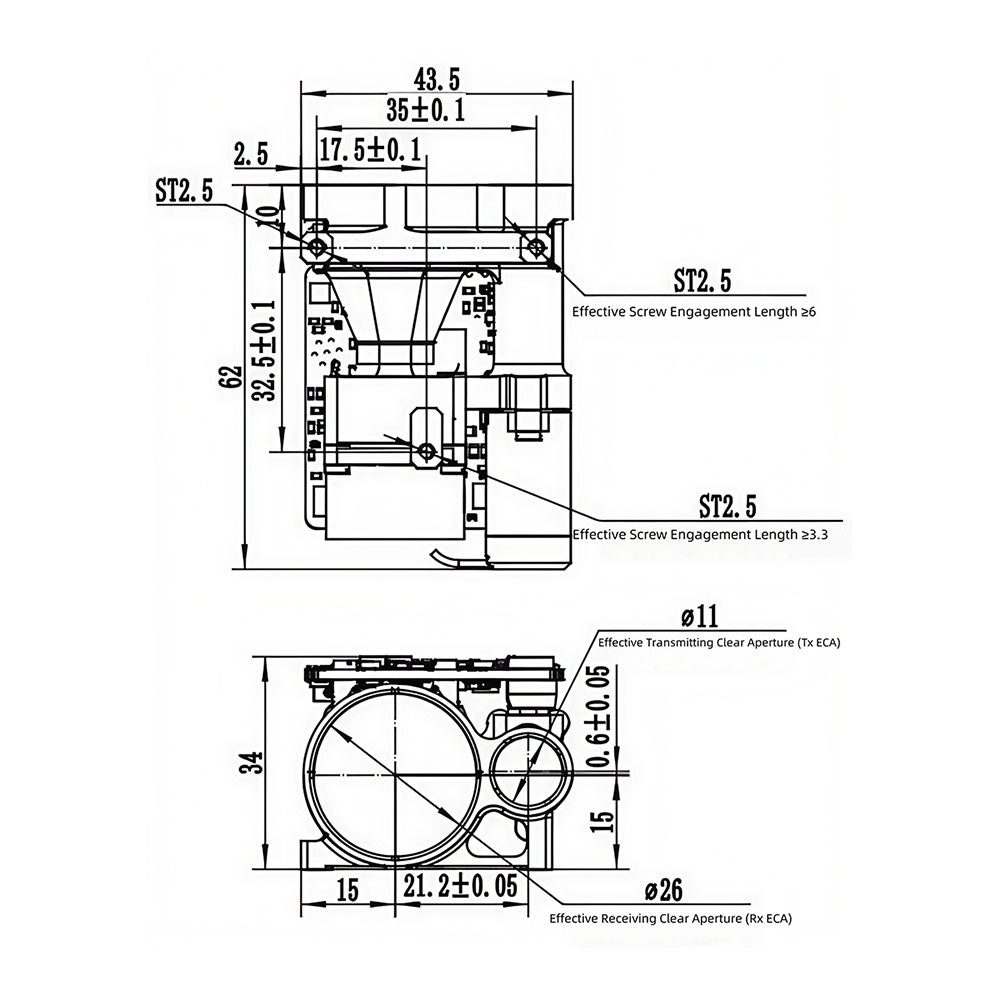

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 34 mm |
| product length | 62 mm |
| product weight | ≤0.08 kg |
| product width | 43.5 mm |
| volume | ≤62 x 43.5.5 x 34 mm |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 9015800090 |
| Country of Origin | Made in China |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
|
|
|
|
|
|
